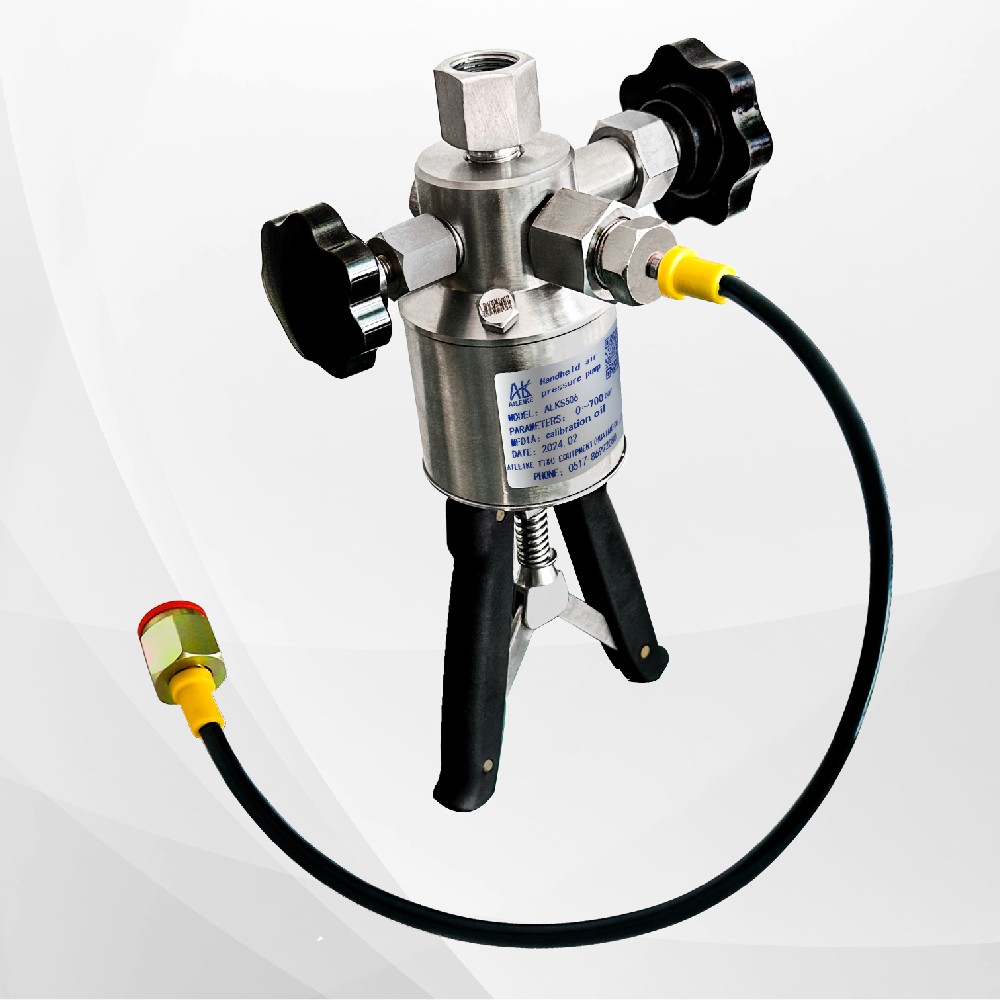

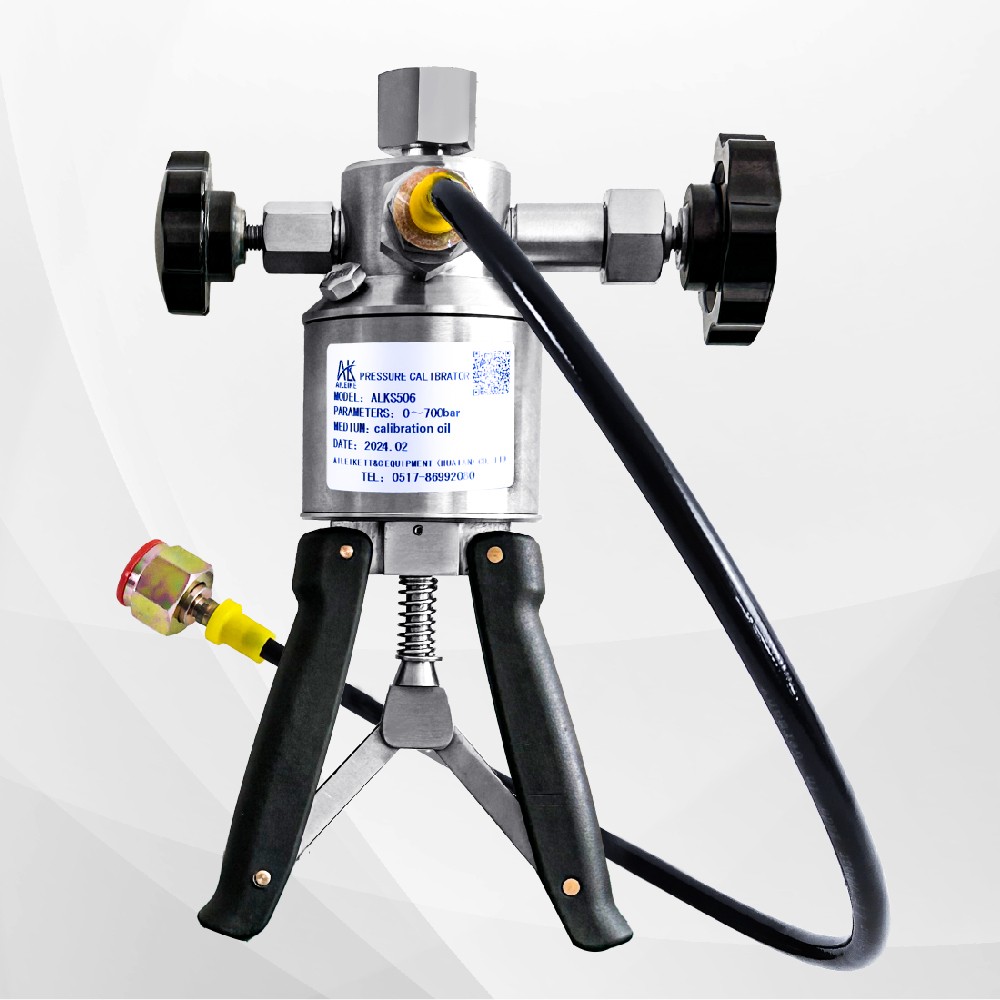

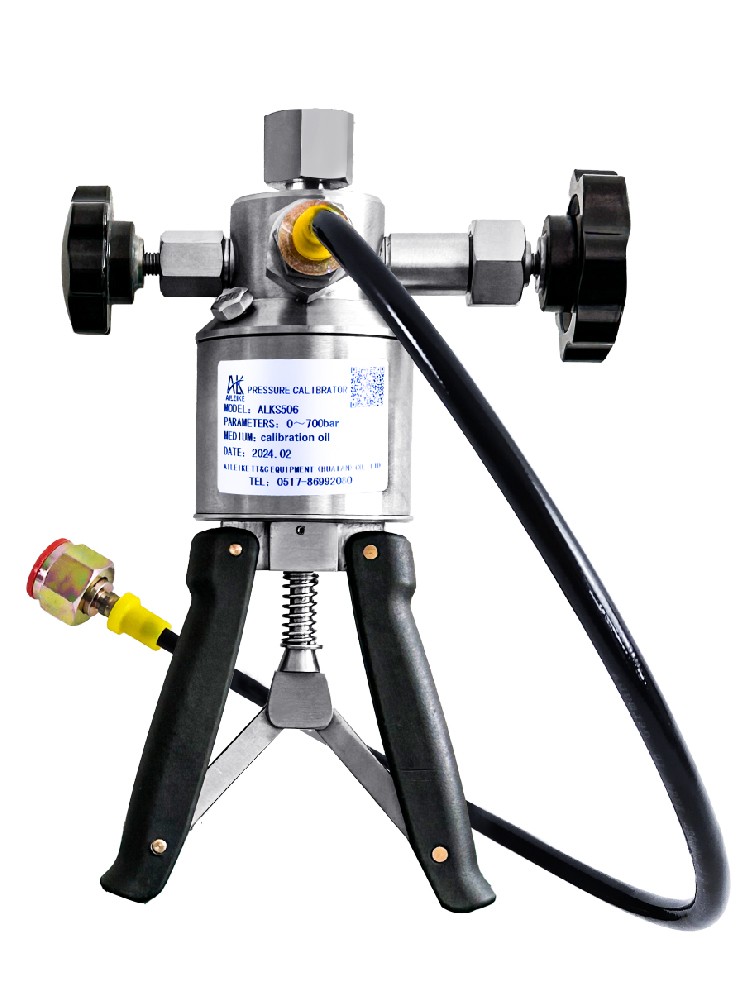

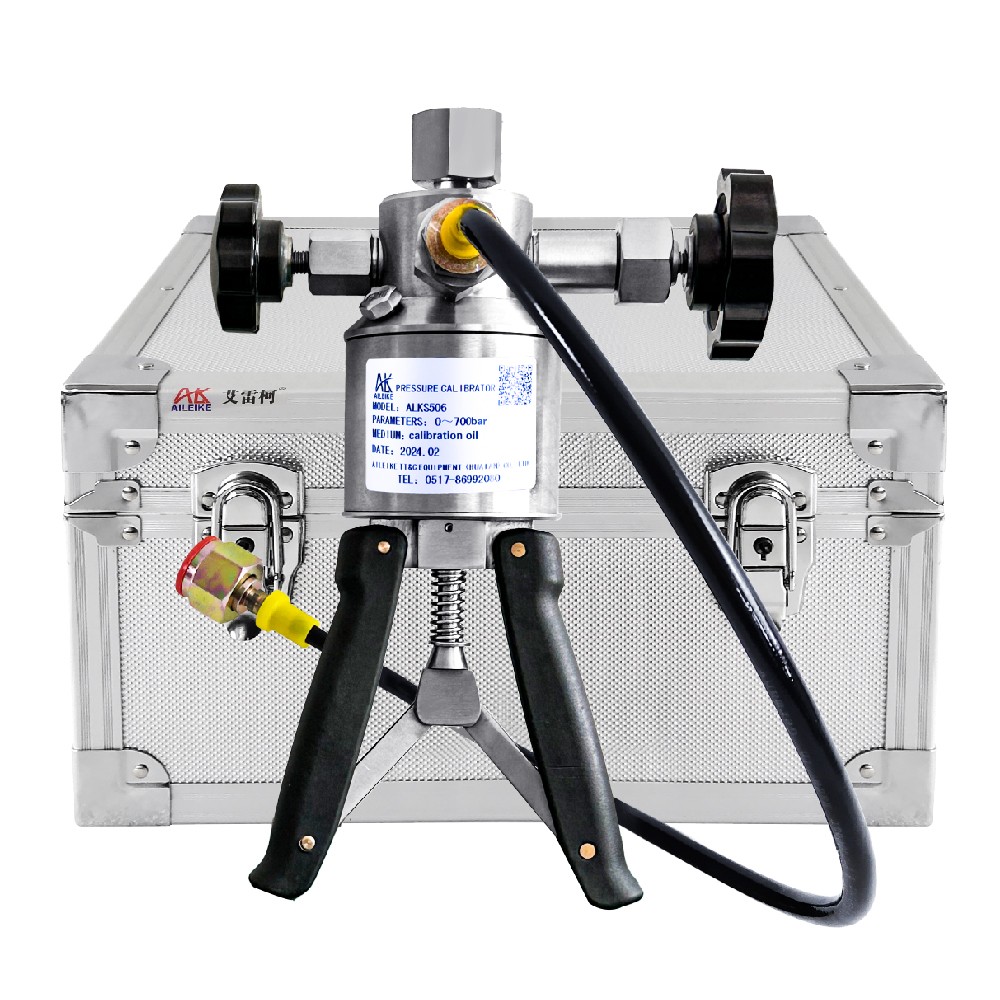

Handheld hydraulic pump ALKS506 0~700bar

①

②

③

④

⑤

⑥

Pressure Relief Value

Standard table interface

Connecting threads：M20X1.5

Oil cup

Fine-tuning

Pressure Lever

Interface of

tested instrument

Connecting threads：M20X1.5

Product name

Handheld hydraulic pump

Model

ALKS506

Measuring range

0~700bar(Can be customized)

Environmentalconditions

Laboratory or field

Environmentaltemperature

0～50℃

Way of Pressure

Hand movement

Connecting threads

The default thread size for the pressure output port is M20 × 1.5. If other thread sizes are required, such as Bsp 1/2, G1/4, NPT1/4, G1/2, NPT1/2, etc., other special thread sizes can also be customized

Applicable medium

Transformer oil 25# or pure water

Net weight

Approximately2.1Kg

Size

265×265×100mm

Weight of instrumentbox

Approximately 2.7Kg

Instrument box size

390×310×250mm

Product weight

Approximately 6.0kg (packaging material iscardboard box)

Product packaging size

460×390×270mm

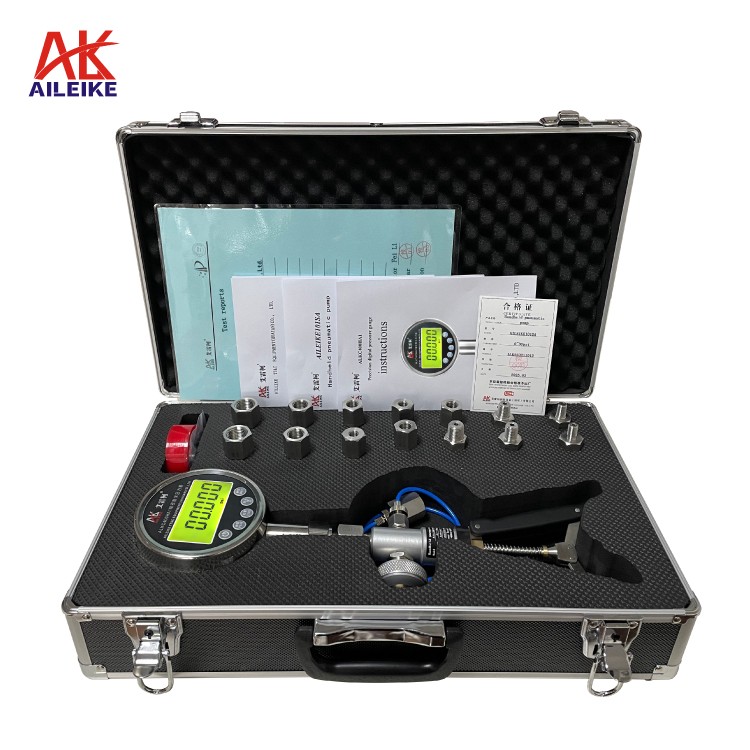

Product standard

configuration

Certificate of conformity x 1 copy

Instructions x 1 copy

Quality assurance card x 1 copy

Sealing ring x 1 pack

Instrument box X 1 piece

4 connector sets：

G1/4(F) M20x1.5(M)x 1 piece

G1/4(M) M20x1.5(M)x 1 piece

NPT1/4(F) M20x1.5(M)x 1 piece

NPT1/4(M) M20x1.5(M)x 1 piece
