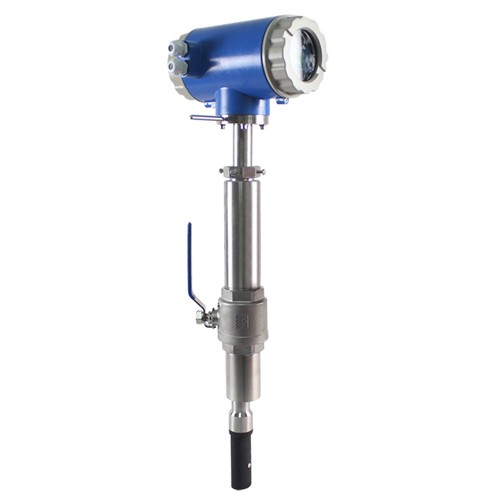

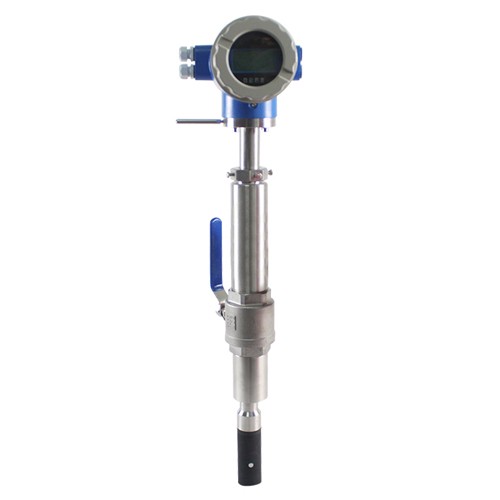

The plug-in electromagnetic flowmeter LDC-200 adopts power consumption microprocessor with high integration, high operation speed and high calculation precision. Frequency programmable low frequency rectangular wave excitation, improve the stability of flow measurement, low power loss; digital processing, anti-interference Ability, reliable measurement; easy to use, easy to operate
application
The electromagnetic flow transducer can be matched with different types of electromagnetic flow sensors to form a system of electromagnetic flowmeter, which is used to measure the volume flow of conductive fluid in closed pipeline. They are widely used in petrochemical, iron and steel metallurgy, water supply and drainage, irrigation, water treatment, total amount control of environmental sewage, production process flow measurement and control of paper making, medicine, food and other industrial and agricultural departments, as well as total amount measurement of conductive liquid.
Technical parameters
Precision level:±0.5% R (5/1000)
Nominal pressure:1.6MP (DN10-DN250)
1.0MPA (DN300-DN1000)
0.6MPA (DN1200-DN2000)
(other specifications can be customized)
Installation mode: flange installation(default)
Flange clamping(custom) clamp installation (custom)
Electrode type:316L electrode (default)
HB/HC alloy electrode
Titanium electrode tantalum Electrode; tungsten carbide electrode; platinum electrode lining material: neoprene rubber(CR); polytetrafluorine (F4)
Polyurethane rubber (PU); polyperfluoroethylethene (F46)
Range ratio: 10:1
Working environment: sensors:-25-150 ℃ converter:-10 ≤ 60 ℃
Fluid requirements: conductive media(conductivity ≥ 5US/CM liquid)
Repetitive error
Of the measured value±0.1%.
|
Model number |
Description
|
|||||||||
|
LDC- |
□ |
□ |
-□ |
□ |
□ |
□ |
□ |
□ |
-□ |
|
|
Path |
|
|
|
|
|
|
|
|
|
200-2200mm |
|
Lining material
|
J |
|
|
|
|
|
|
|
teflon |
|
|
|
L |
|
|
|
|
|
|
|
Neoprene rubber |
|
|
|
Z |
|
|
|
|
|
|
|
Special order |
|
|
Electrode materia |
M |
|
|
|
|
|
|
316L |
||
|
|
H |
|
|
|
|
|
|
HC |
||
|
|
T |
|
|
|
|
|
|
Ta |
||
|
|
V |
|
|
|
|
|
|
Ti |
||
|
|
P |
|
|
|
|
|
|
Pt |
||
|
Nominal pressure
|
40 |
|
|
|
|
|
Nominal diameter：10～50，4.OMPa |
|||
|
|
16 |
|
|
|
|
|
Nominal diameter： 65～125，1.6MPa |
|||
|
|
10 |
|
|
|
|
|
Nominal diameter： 150～1000，1.0MPa |
|||
|
|
6 |
|
|
|
|
|
Nominal diameter：1200, 0.6MPa |
|||
|
Grounding ring material |
M |
|
|
|
|
316L |
||||
|
|
H |
|
|
|
|
Hc |
||||
|
|
T |
|
|
|
|
Ta |
||||
|
|
V |
|
|
|
|
Ti |
||||
|
|
P |
|
|
|
|
Pt |
||||
|
Output signal
|
A |
|
|
|
4-20mA |
|||||
|
|
B |
|
|
|
0-10mA |
|||||
|
|
C |
|
|
|
Pulse output |
|||||
|
Flow range |
|
|
|
M3/h |
||||||
|
Display |
|
TBS (display: instantaneous, cumulative) |
||||||||
