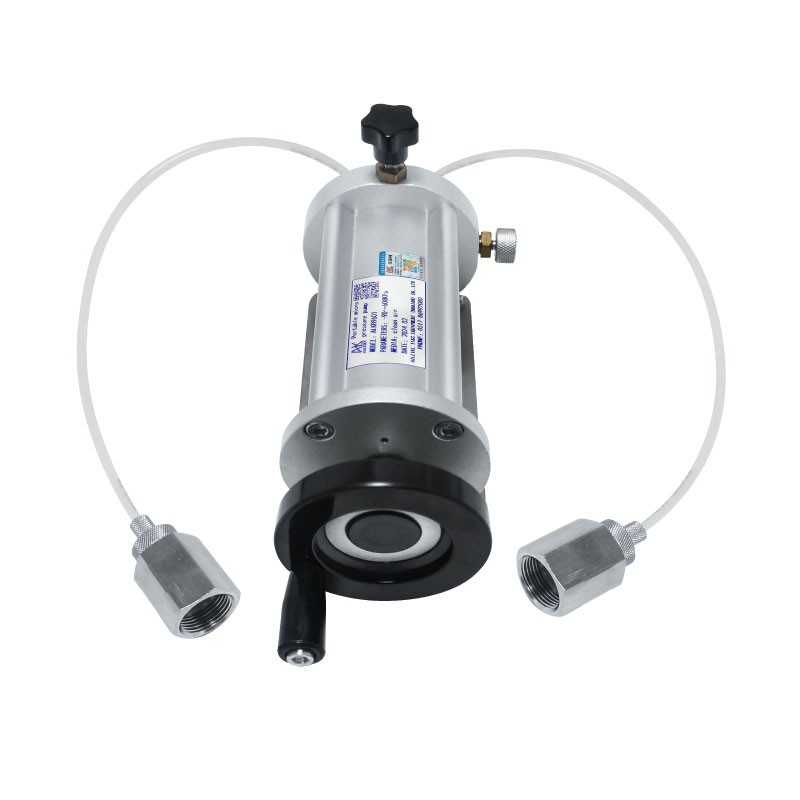

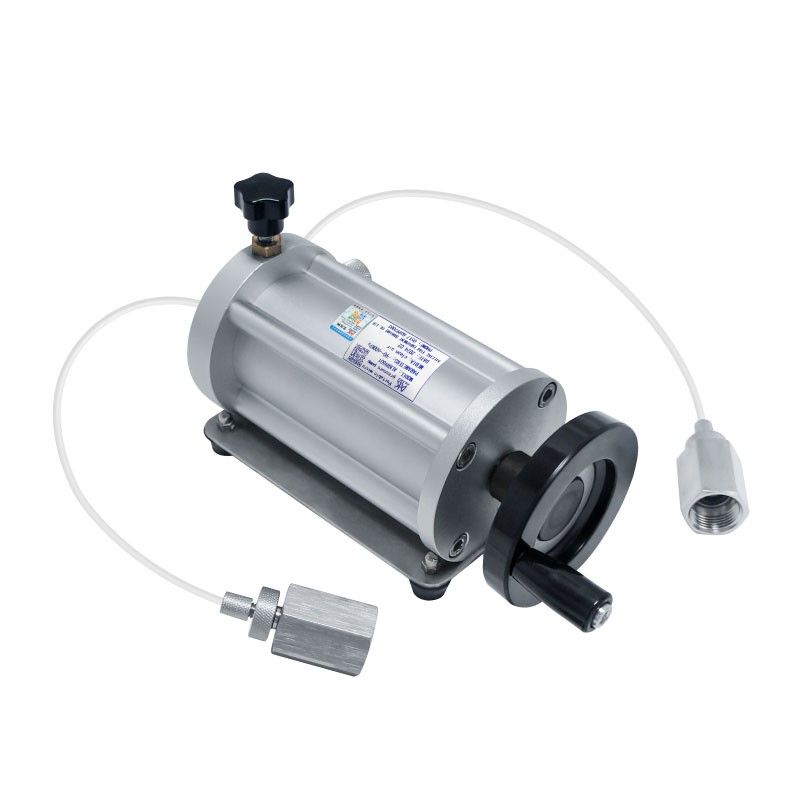

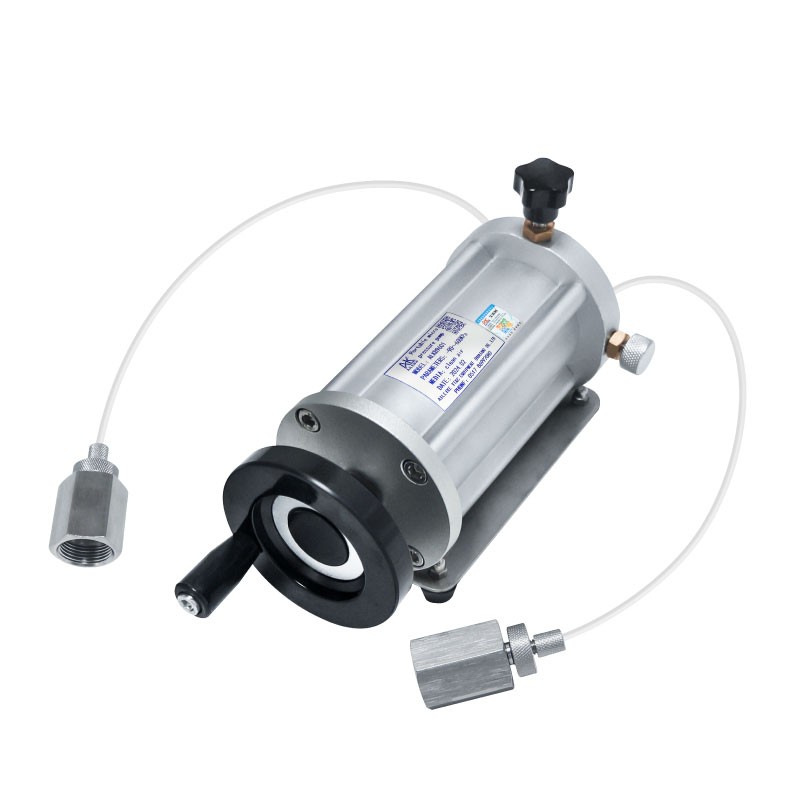

Portable micro-pressure pump ALK9601

1

2

3

4

5

6

7

Micro-adjustment knob

Clockwise: pressurize/close

Counterclockwise: depressurize/release

Pressure relief

valve

Pump body

Standard gauge

interface  or

test gauge

interface

M20X1.5

Standard gauge

interface  or

test gauge

interface

M20X1.5

Fine adjustment

handle

Flexible tube

Product name

Portable micro pressure pump

Model

ALKB9601

Measuring range

-0.9~6 bar

Regulating fineness

1 pa

Output port

Two

Thread specification

The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation.

Ambient temperature

-10~60℃

Measurement medium

Clean air

Way of Pressure

Hand movement

Hose length

500mm

Net Weight

Approximately 1.35Kg

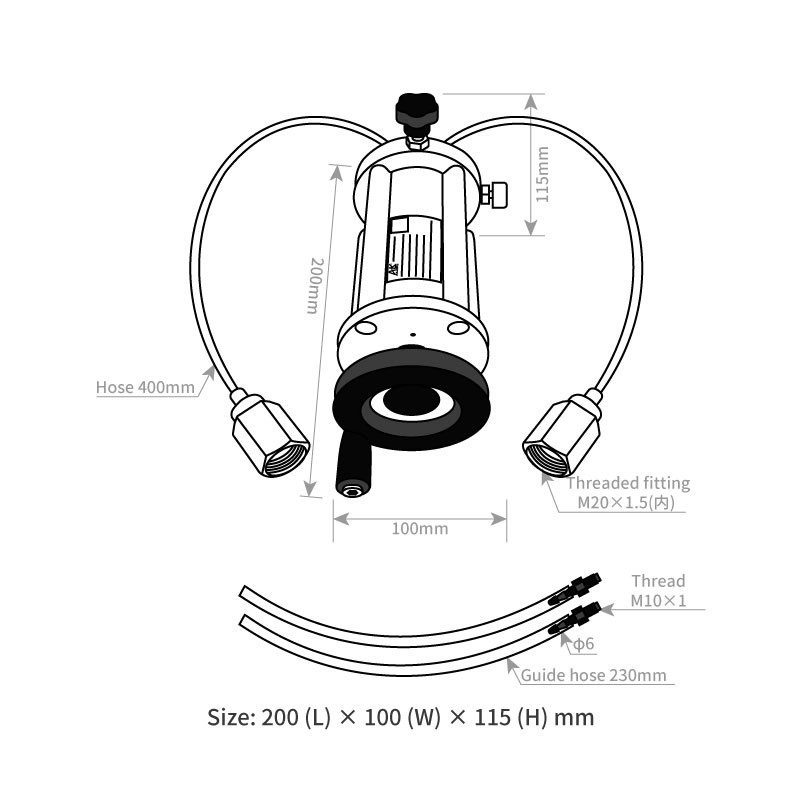

Size

200×100×115mm

Product weight

Approximately 2.5kg (packaging material is cardboard box)

Product packaging size

250×150×165mm

Product standard

configuration

Certificate of compliance x1

User manual x1

Warranty card x1

Hose x4

Guide x2
