Description
|
1 |
2 |
3 |
4 |
5 |
6 |
|
LCD display screen |
Temperature measurement chamber |
Main power switch |
Main power switch |
Cooling/Heating switch |
Power switch |
|
Product Information |
|
|
Product name |

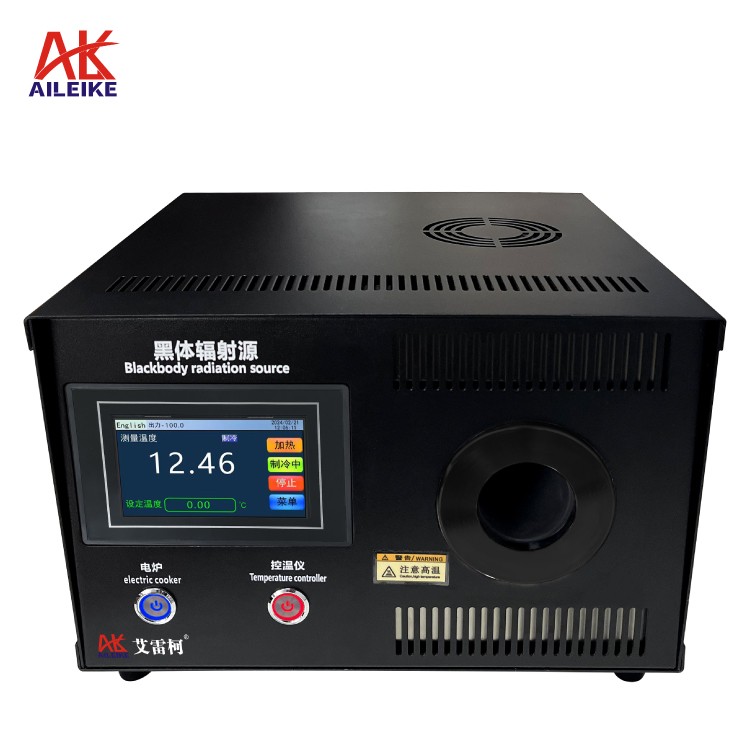

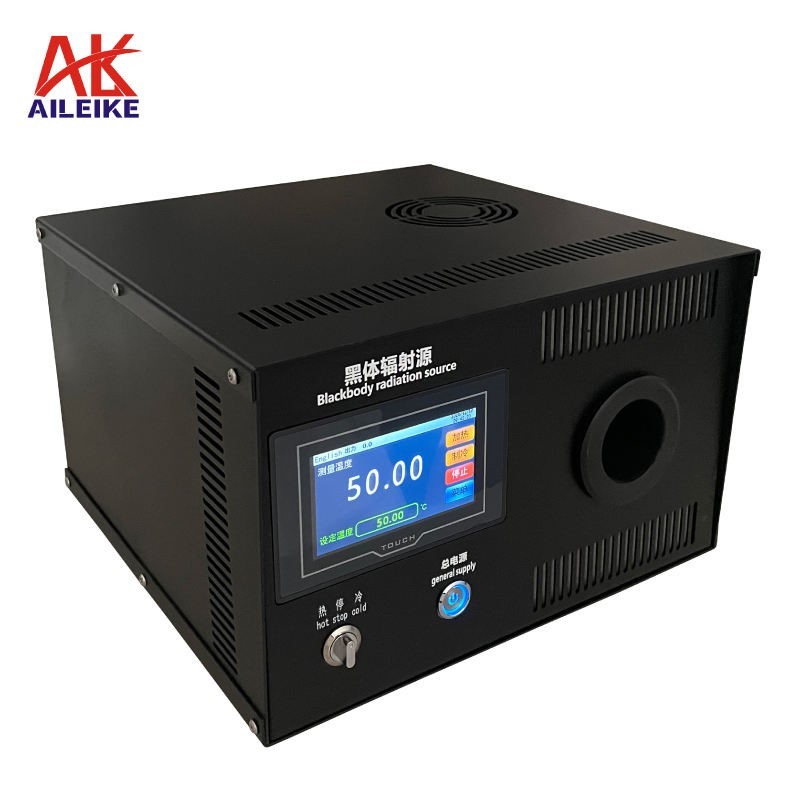

Blackbody radiation source |
|
Model |
ALKHW-W51A |
|
Temperature range |
30~50℃ |
|
Display Mode |
Digital Tube Display |
|
Display resolution |
0.01℃ |
|
Effective emissivity |
≥0.995 |
|
Chamber diameter |
φ50mm (customizable) |
|
Default display |
Switching between Chinese and English |
|
Net Weight |
320×330×220mm |
|
Product size |
8.9kg |
|
Packaged weight |
450×450×290mm |
|
Product packaging size |
Approximately13.8kg (packaging material is Wooden box) |
|
01 |
02 |
|

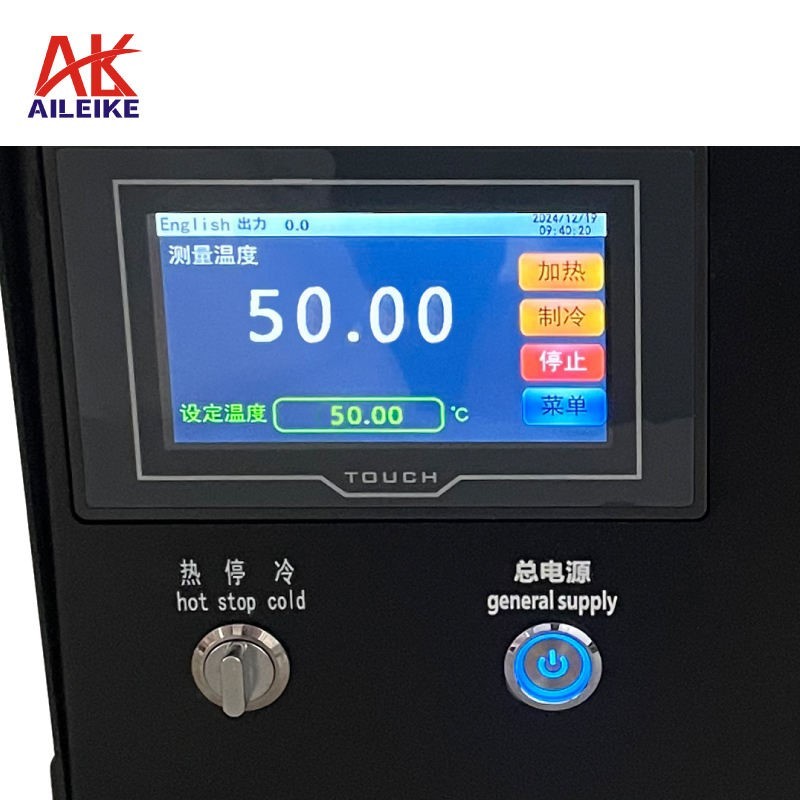

Temperature controlled display screen Display current temperature setting temperature Clear and intuitive |
Large lumen diameter Φ 50mm large diameter Can adapt to most radiation thermometers |
