Description
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Micro-adjustment knob Clockwise: pressurize/close Counterclockwise: depressurize/release |
Pressure relief valve |
Pump body |
Standard gauge interface or test gauge interface M20X1.5 |
Standard gauge interface or test gauge interface M20X1.5 |
Fine adjustment handle |
Flexible tube |
|
Product name |
Portable micro pressure pump |
|
Model |
ALKB9601 |
|
Measuring range |
-0.9~6 bar |
|
Regulating fineness |
1 pa |
|
Output port |
Two |
|
Thread specification |
The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation. |
|
Ambient temperature |
-10~60℃ |
|
Measurement medium |
Clean air |
|
Way of Pressure |
Hand movement |
|
Hose length |
500mm |
|
Net Weight |
Approximately 1.35Kg |
|

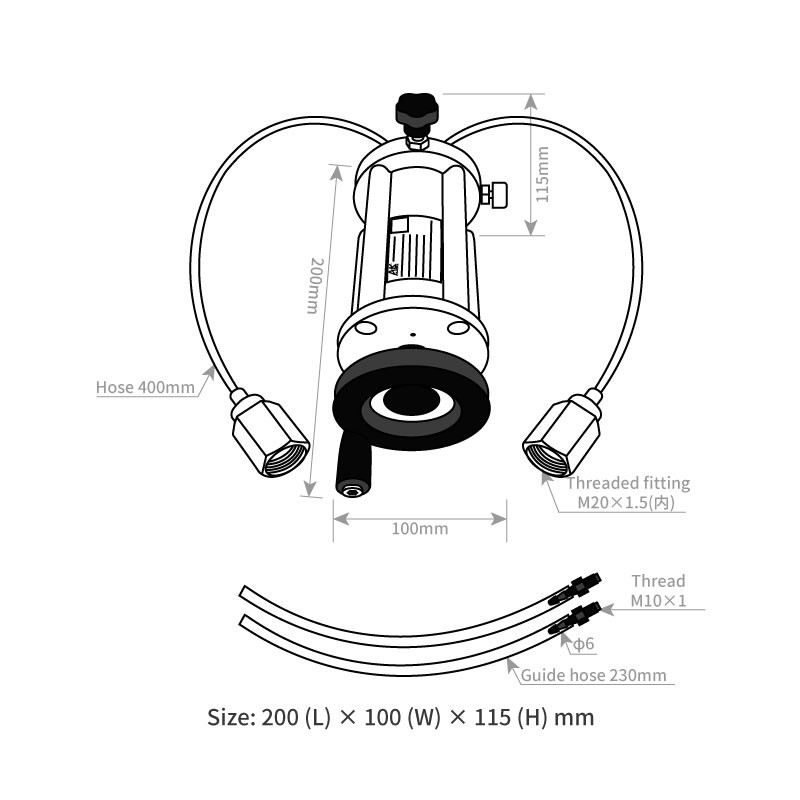

Size |
200×100×115mm |
|
Product weight |
Approximately 2.5kg (packaging material is cardboard box) |
|
Product packaging size |
250×150×165mm |
|
Product standard configuration |
Certificate of compliance x1 User manual x1 Warranty card x1 Hose x4 Guide x2 |
