Description
|

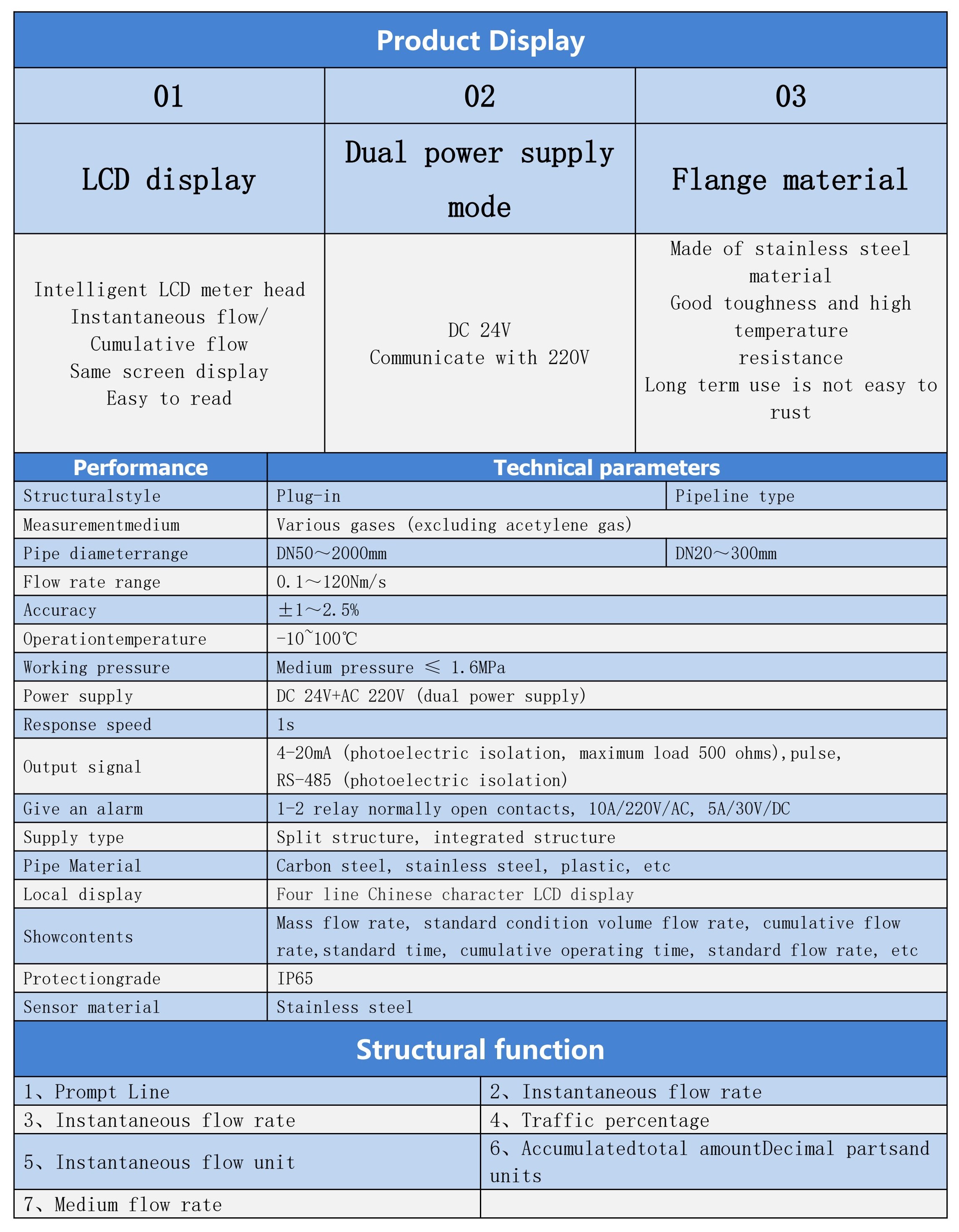

Product Display |
||
|
01 |
02 |
03 |
|
LCD display |
Dual power supply mode |
Flange material |
|
Intelligent LCD meter head Instantaneous flow/ Cumulative flow Same screen display Easy to read |
DC 24V Communicate with 220V |
Made of stainless steel material Good toughness and high temperature resistance Long term use is not easy to rust |
|
Performance |
Technical parameters |
|
|
Structuralstyle |
Plug-in |
Pipeline type |
|
Measurementmedium |
Various gases (excluding acetylene gas) |
|
|
Pipe diameterrange |
DN50～2000mm |
DN20～300mm |
|
Flow rate range |
0.1～120Nm/s |
|
|
Accuracy |
±1～2.5% |
|
|
Operationtemperature |
-10~100℃ |
|
|
Working pressure |
Medium pressure ≤ 1.6MPa |
|
|
Power supply |
DC 24V+AC 220V (dual power supply) |
|
|
Response speed |
1s |
|
|
Output signal |
4-20mA (photoelectric isolation, maximum load 500 ohms),pulse, RS-485 (photoelectric isolation) |
|
|
Give an alarm |
1-2 relay normally open contacts, 10A/220V/AC, 5A/30V/DC |
|
|
Supply type |
Split structure, integrated structure |
|
|
Pipe Material |
Carbon steel, stainless steel, plastic, etc |
|
|
Local display |
Four line Chinese character LCD display |
|
|
Showcontents |
Mass flow rate, standard condition volume flow rate, cumulative flow rate,standard time, cumulative operating time, standard flow rate, etc |
|
|
Protectiongrade |
IP65 |
|
|
Sensor material |
Stainless steel |
|
|
Structural function |
|
|
1、Prompt Line |
2、Instantaneous flow rate |
|
3、Instantaneous flow rate |
4、Traffic percentage |
|
5、Instantaneous flow unit |
6、Accumulatedtotal amountDecimal partsand units |
|
7、Medium flow rate |
|
Instantaneous flow units: Instantaneous units include Nm³/h/Nm³/min、NL/h、NL/min、t/h、t/min、kg/h、kg/min
Accumulated units: Accumulated flow units include Nm³、NL、t、kg
|

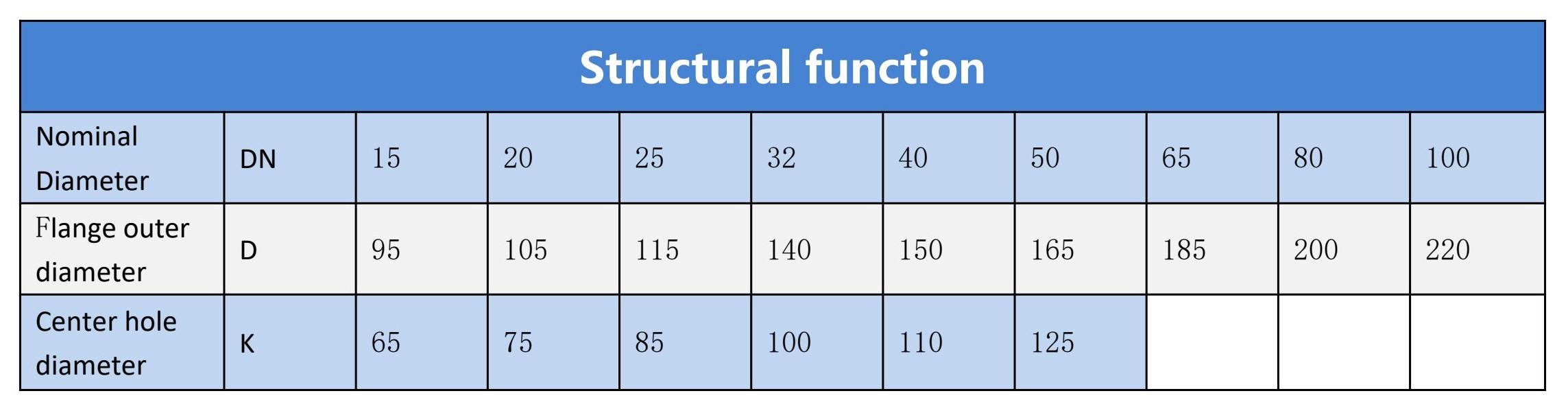

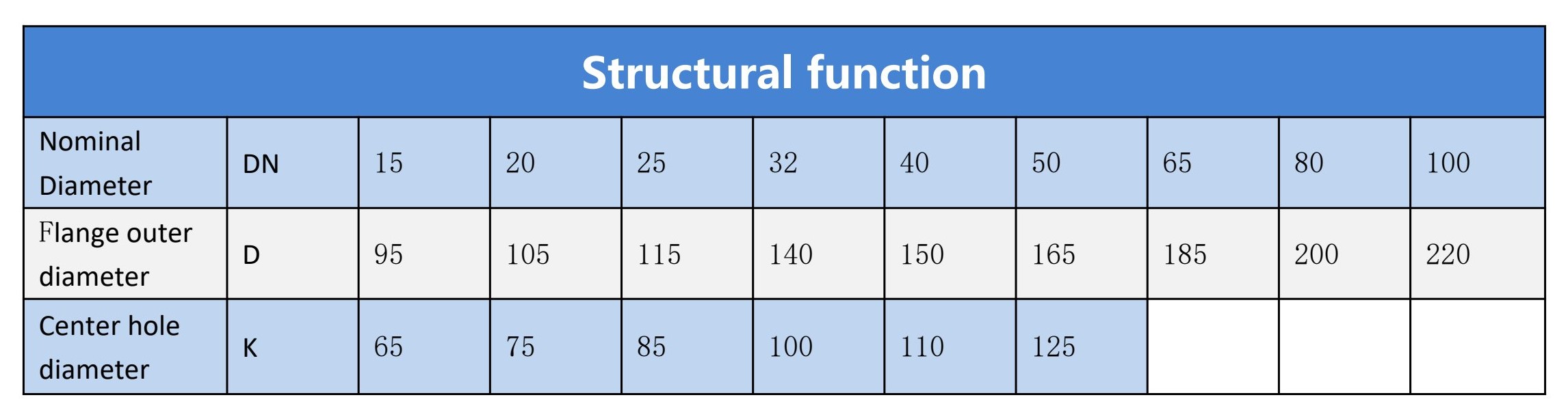

Structural function |
||||||||||
|
Nominal Diameter |
DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
Flange outer diameter |
D |
95 |
105 |
115 |
140 |
150 |
165 |
185 |
200 |
220 |
|
Center hole diameter |
K |
65 |
75 |
85 |
100 |
110 |
125 |
