Description
|
1 |
2 |
3 |
4 |
5 |
6 |
|

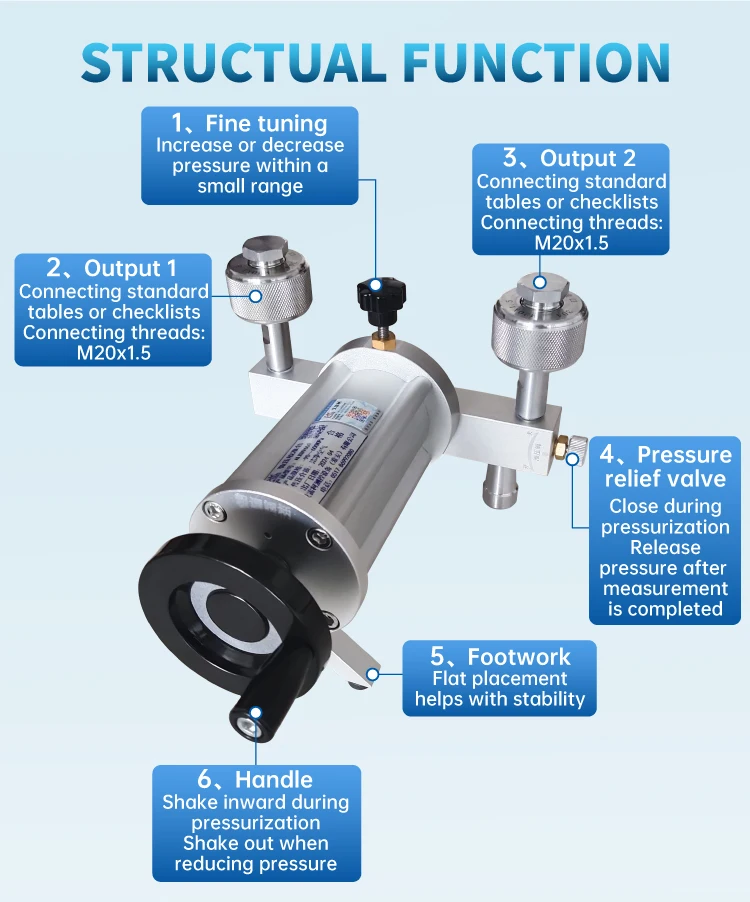

Finetuning Increase or decrease pressure within a small range |
Output 1 Connecting standard tables or checklists Connecting threads: M20x1.5 |
Output2 Connecting standard tables or checklists Connecting threads: M20x1.5 |
Pressure relief valve Close during pressurization Release pressure after measurement is completed |
Footwork Flat placement helps with stability |
Handle Shake inward during pressurization Shake out when reducing pressur |
|

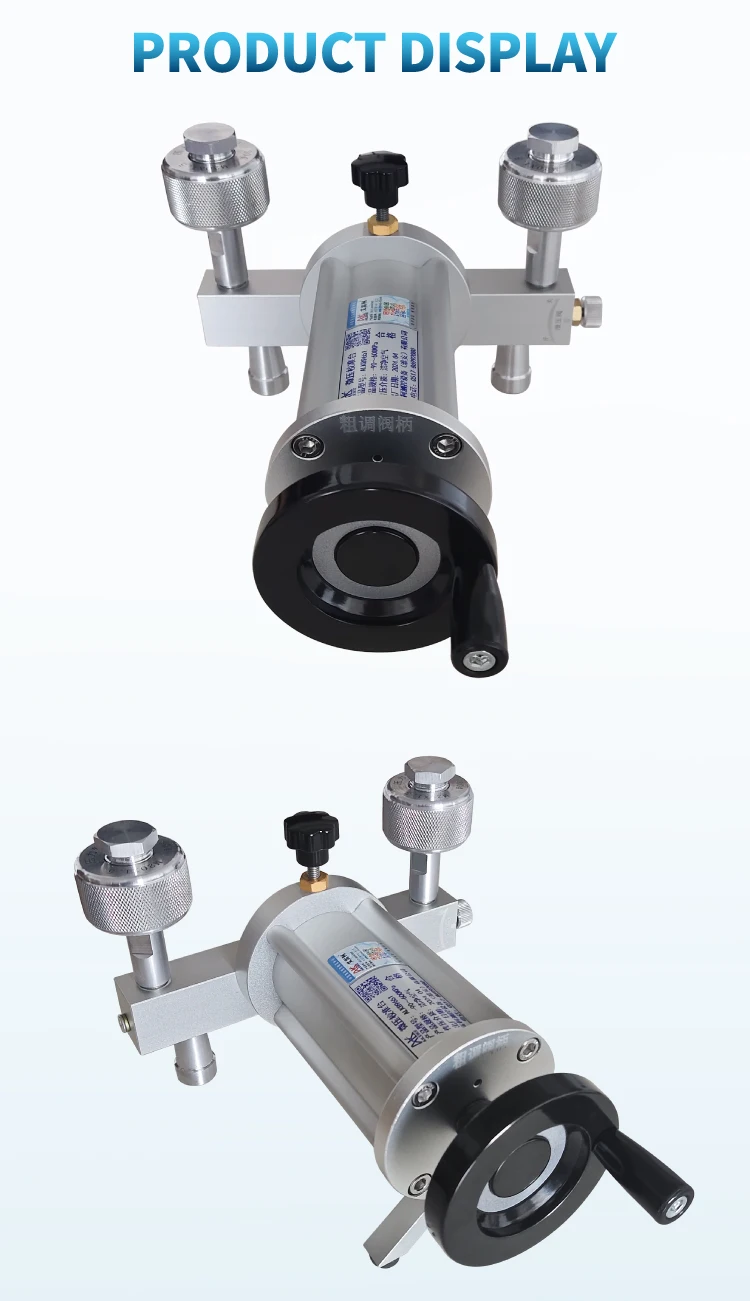

Product name |

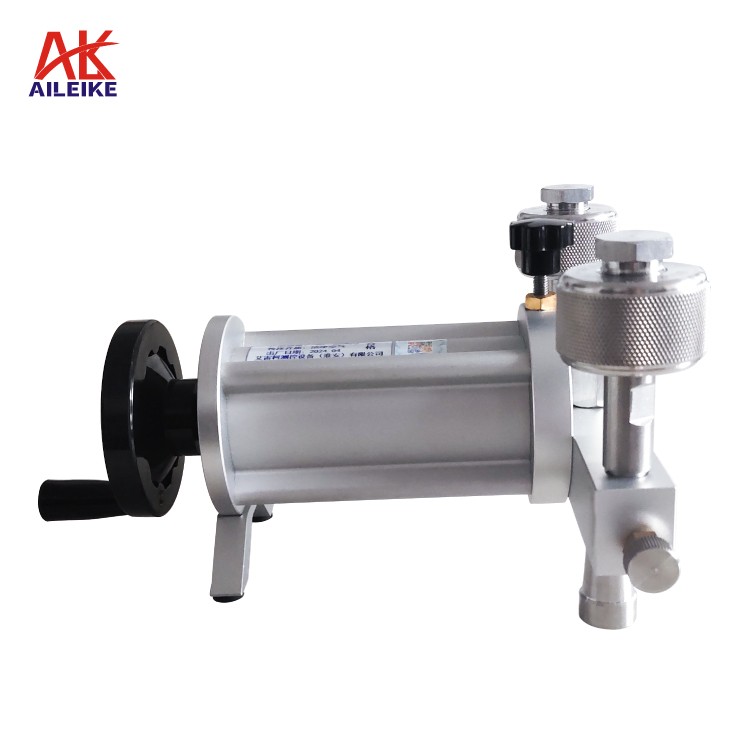

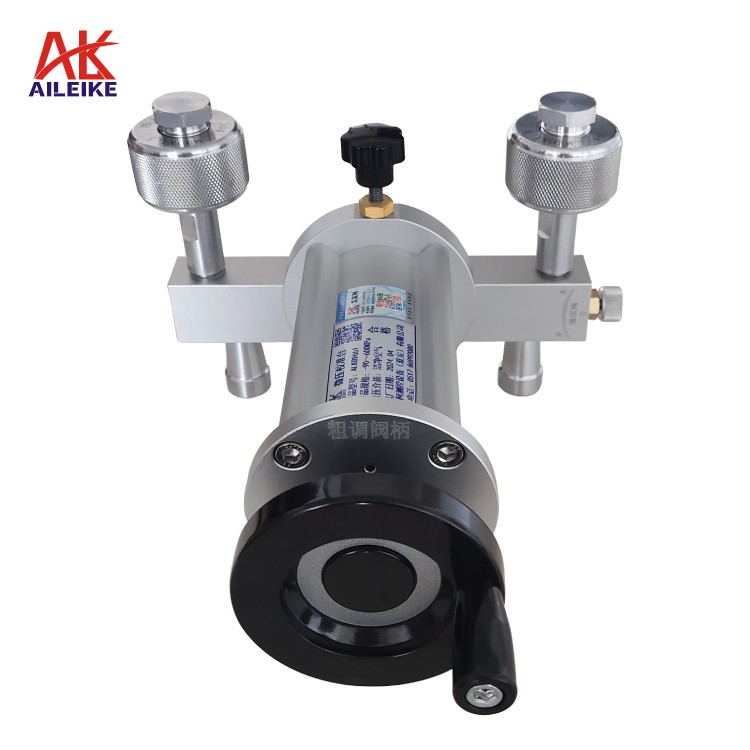

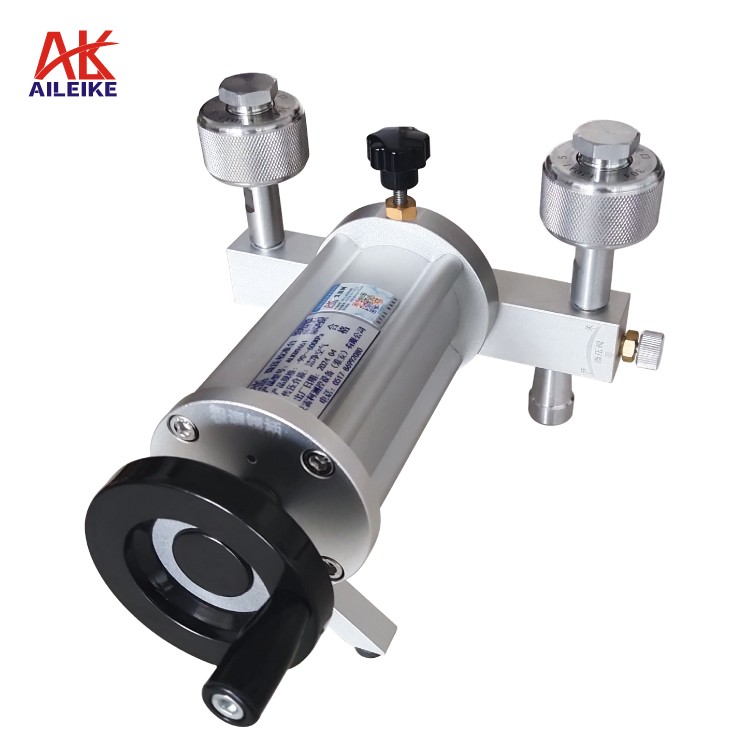

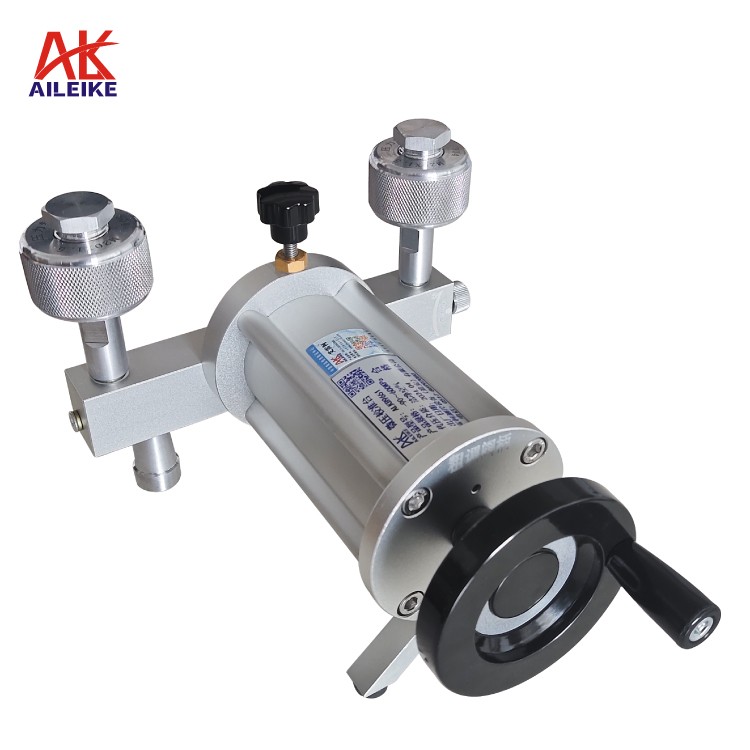

Micro pressure calibration table |
|
Model |
ALKB9651 |
|
Processing customization |
Yes |
|
Pressure range |
-0.9~6 bar/-13~87psi/--90~600Kpa(Pressure selectable) |
|
Regulating fineness |
1Pa |
|
Output port |
Two |
|
Pressure connection |
The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation. |
|
Ambient temperature |
0~50℃ |
|

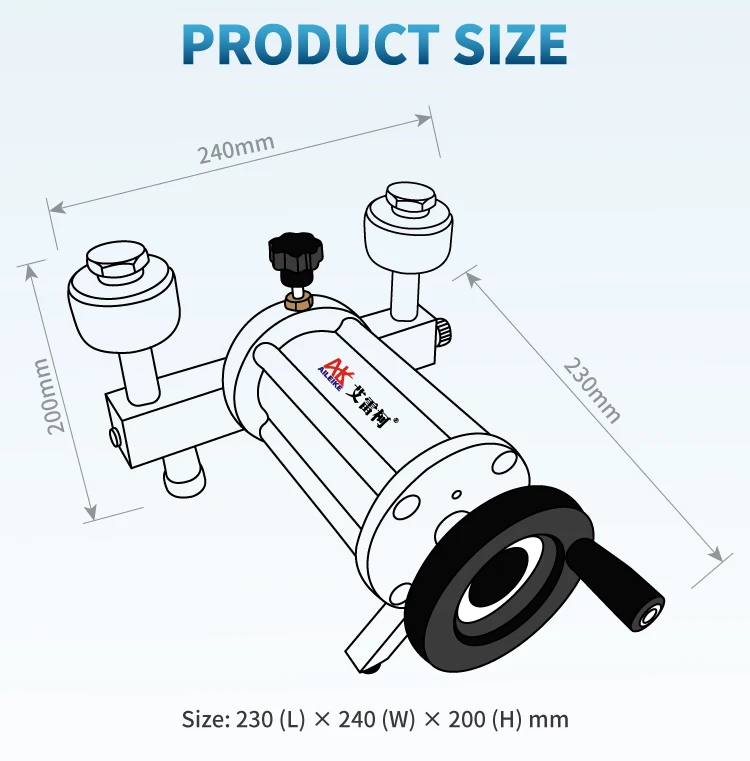

External dimensions |
230x240x200mm |
|
Net Weight |
2.3kg |
|
Measurement medium |
Clean air |
|
Pressurization method |
Manual |
|
Product weight |
Approximately 3.1kg (packaging material iscardboard box) |
|
Product packaging size |
350×300×290mm |
|
Product standard configuration |
Certificate of conformity x1 Instruction manual x1 Quality assurance card x1 Sealing ring x2 Plug x2 |
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours.
Q:How soon can you arrange your production?
A:once getting your product confirmation and receiving the prepayment, the
production will be started immediately.
Q: Whats delivery time?
A:lt usually takes about 3-5 working days for small order and 10-15 days for big
order.
Q: Whats your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes,OEM and oDM are both available, we have the professional R&D dept which
can provide professional solutions for you.
