Description
| ① | On/Off Button | One click power on/off function |
| ② | Peak Button | HI: Display peak value HO: Display valley value |
| ③ | Zero Calibration Button | One click reset under stress free conditions |
| ④ | Backlight Button | Press the button to turn on the backlight |
| ⑤ | Unit Switch Button | MPa、kPa、mmHg、psi、bar、kgf/cm² |
| ⑥ | Fine Adjustment Knob | Clockwise: Apply pressure/Close counterclockwise: Reduce pressure/Release |
| ⑦ | Pressure Relief Valve | Close when pressurized, release gas at the end of measurement |
| ⑧ | Pump Body | Combination installation of various components |
| ⑨ | Micro-Adjustment | Shake inward when pressurized and outward when depressurized |
| ⑩ | Pressure Outlet 1 | Connect standard table or inspected table, connection thread: M20 × 1.5 |
| ⑪ | Pressure Outlet 2 | Connect standard table or inspected table, connection thread: M20 × 1.5 |
| ⑫ | Guide Hose | Connect output port |
| Precision | 0.1%FS |
| Display | 5-digit display |
| Basic thread | M20 × 1.5 (inside) 2 pieces |
| Length of connector hose | 400mm |
| Guiding hose length | 280mm |
| Overload capacity | 1.2 times the upper range limit |
| Measuring medium | clean air |
| Net weight (micro pressure pump+gauge) | 1.95kg |
| Micro pressure pump size | 200×100×115mm |
| Total packaging weight | 5.1kg |
| Total packaging size | 490×300×130mm |

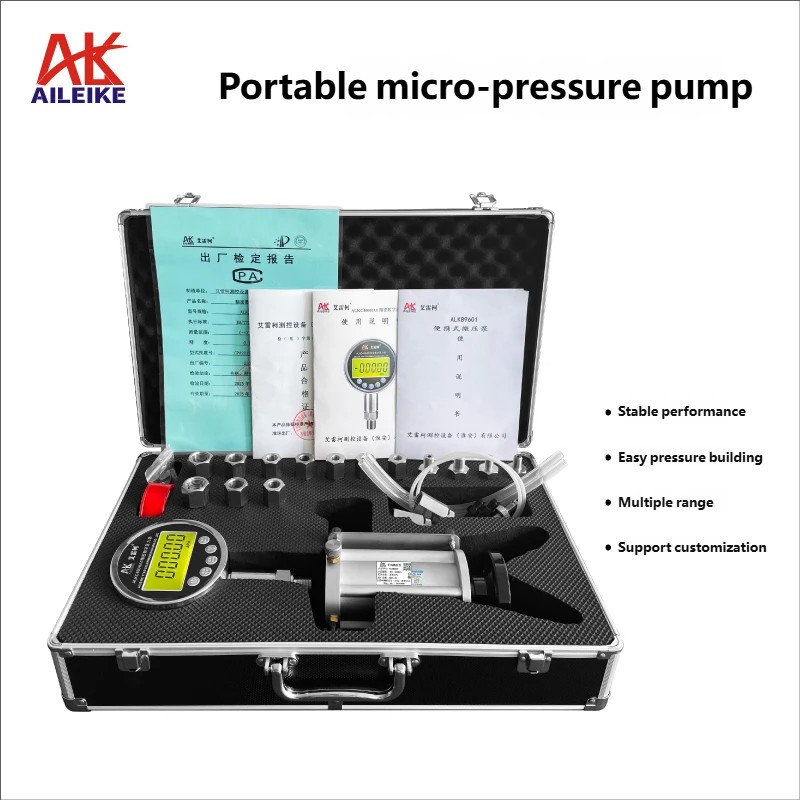

| Product standard configuration | 2 hoses for connectors, 2 guide hoses, 2 guide connectors, 1 output port plug, 40 gaskets, 1 roll of raw material tape, 14 pressure conversion connectors, and 1 instrument box |
