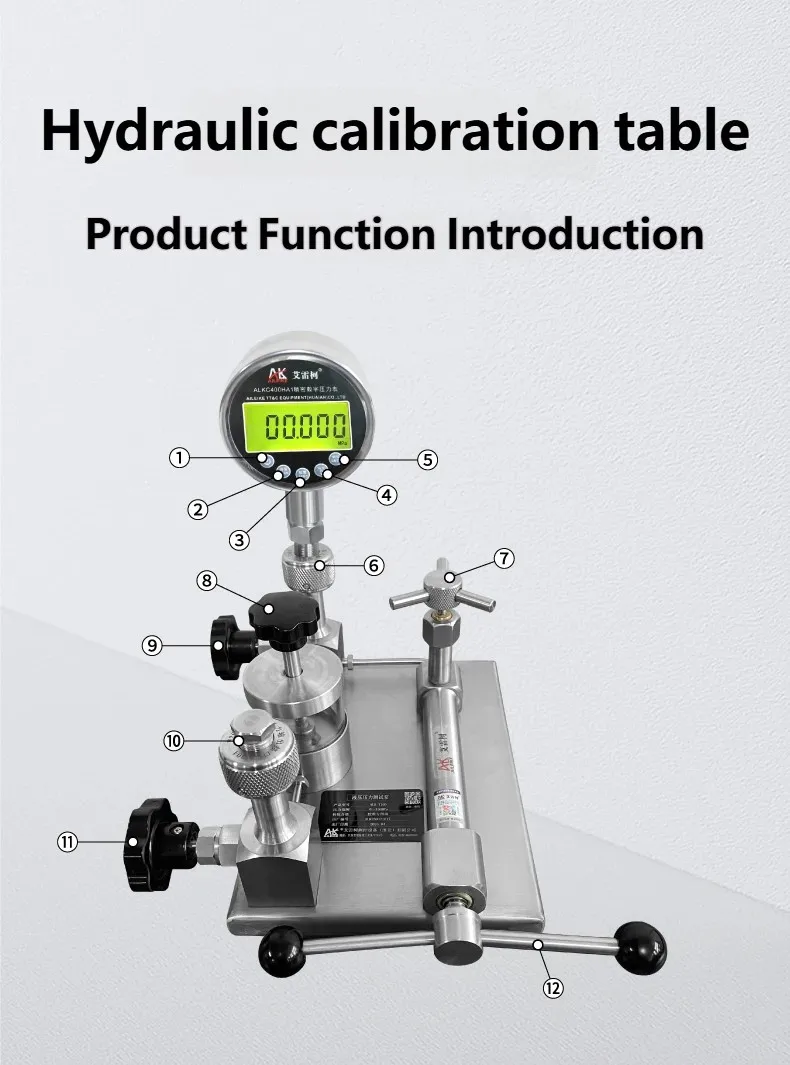

Description
|
1 |
Power On/Off Button |
One-touch power on/off function |
|
2 |
Peak Hold Button |
HI: Display peak value HO: Display valley value |
|
3 |
Zero Calibration Button |
One-touch zero reset under no pressure conditions |
|
4 |
Backlight Button |
Backlight activates upon button press |
|
5 |
Unit Conversion Button |
MPa, kPa, mmHg, psi, bar, kgf/cm² |
|
6 |
Pressure Output Port |
Connects to standard gauges, connection thread: M20×1.5 |
|
7 |
Fine Adjustment |
Increase or decrease pressure within a small range |
|
8 |
Shut-off Valve |
Pressure application closes, pressure release opens |
|
9 |
Pressure Stabilizing Valve 1 |
Lock function stabilizes pressure during fluctuations |
|
10 |
Pressure Output Port |
Connect to test gauge, connection thread: M20×1.5 |
|
11 |
Pressure Stabilizing Valve 2 |
Lock function stabilizes pressure during fluctuations |
|
12 |
Pressure Handle |
Manually adjust pressure level by hand crank operation |
|
Product Information |
|
|
Product Name |

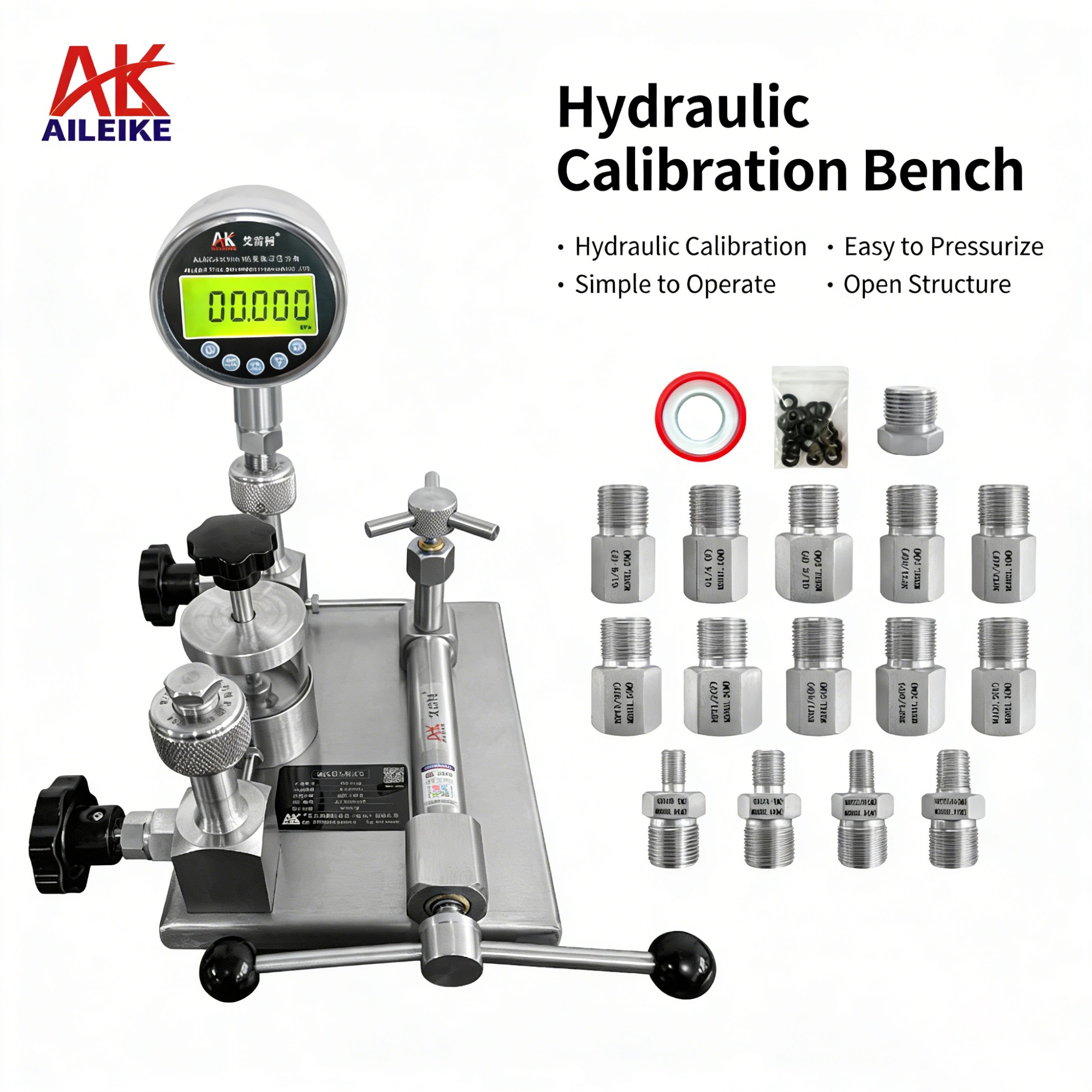

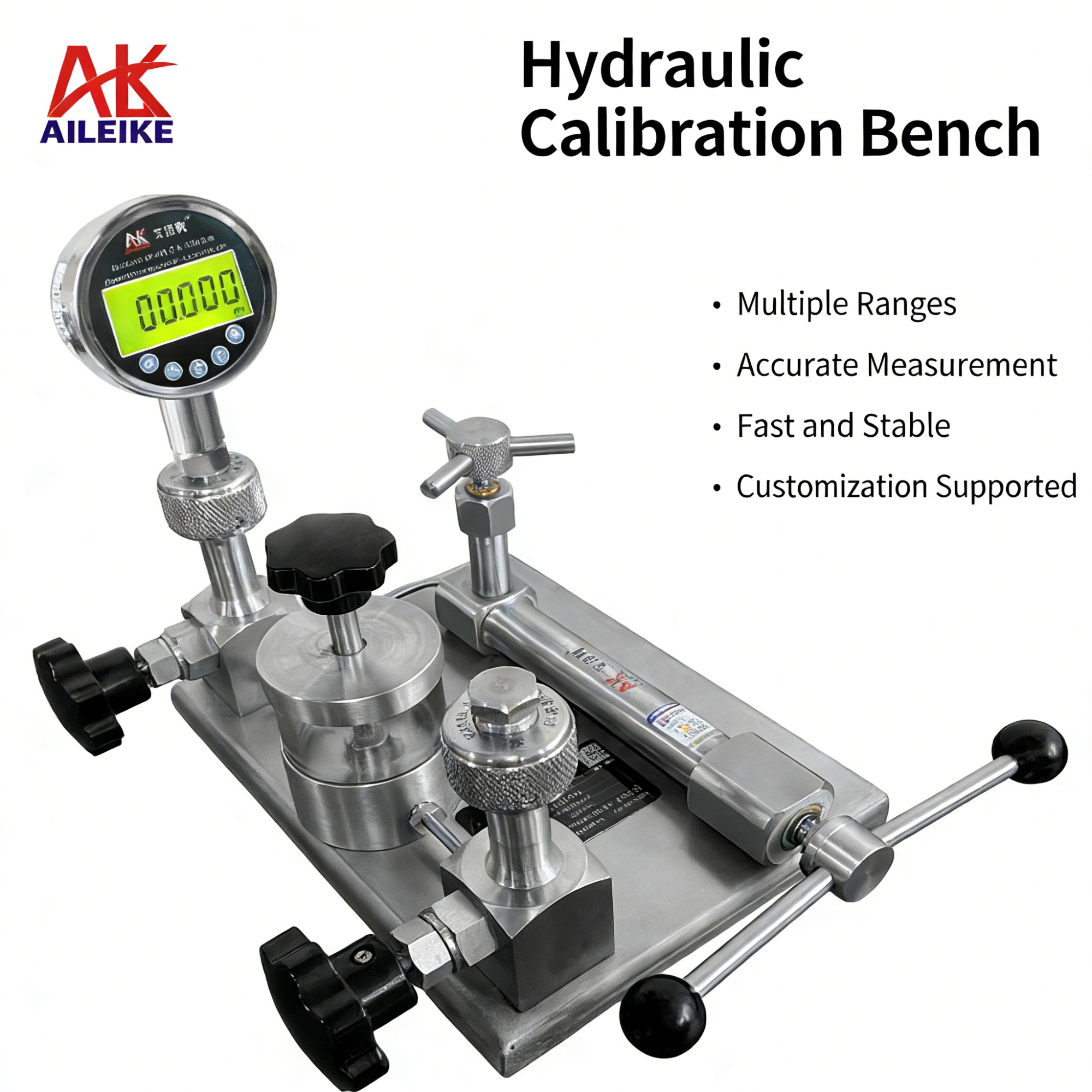

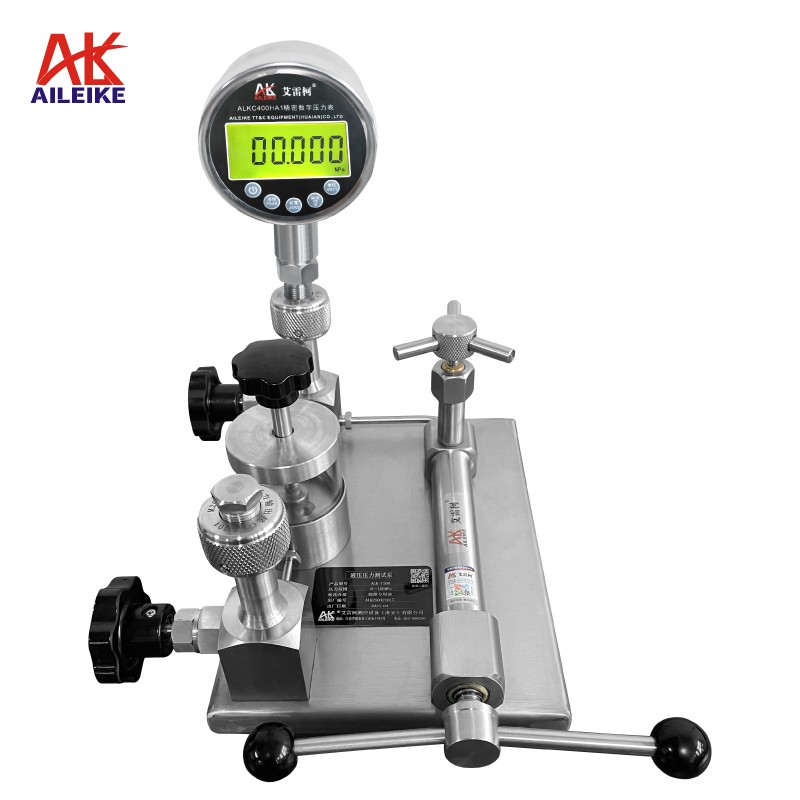

Hydraulic Calibration Bench |
|
Model |
ALK-T100+ALKC400HA1+ALKJ01 |
|
Pressure Range |
0~100MPa / 0~1000bar / 0~10000psi |
|
Operating Environment |
For laboratory or field use |
|
Accuracy |
0.1% FS |
|
Display |
5-digit Display |
|
Base Thread |
M20×1.5 |
|
Overload Capacity |
1.2 times full scale |
|
Power Supply |
Lithium Battery (ER14505 3.6V) |
|
Pressurization Method |
Manual |
|
Measured Medium |
Pure Water/Calibration Oil (Choose One) |
|
Net Weight |
9.6kg |
|

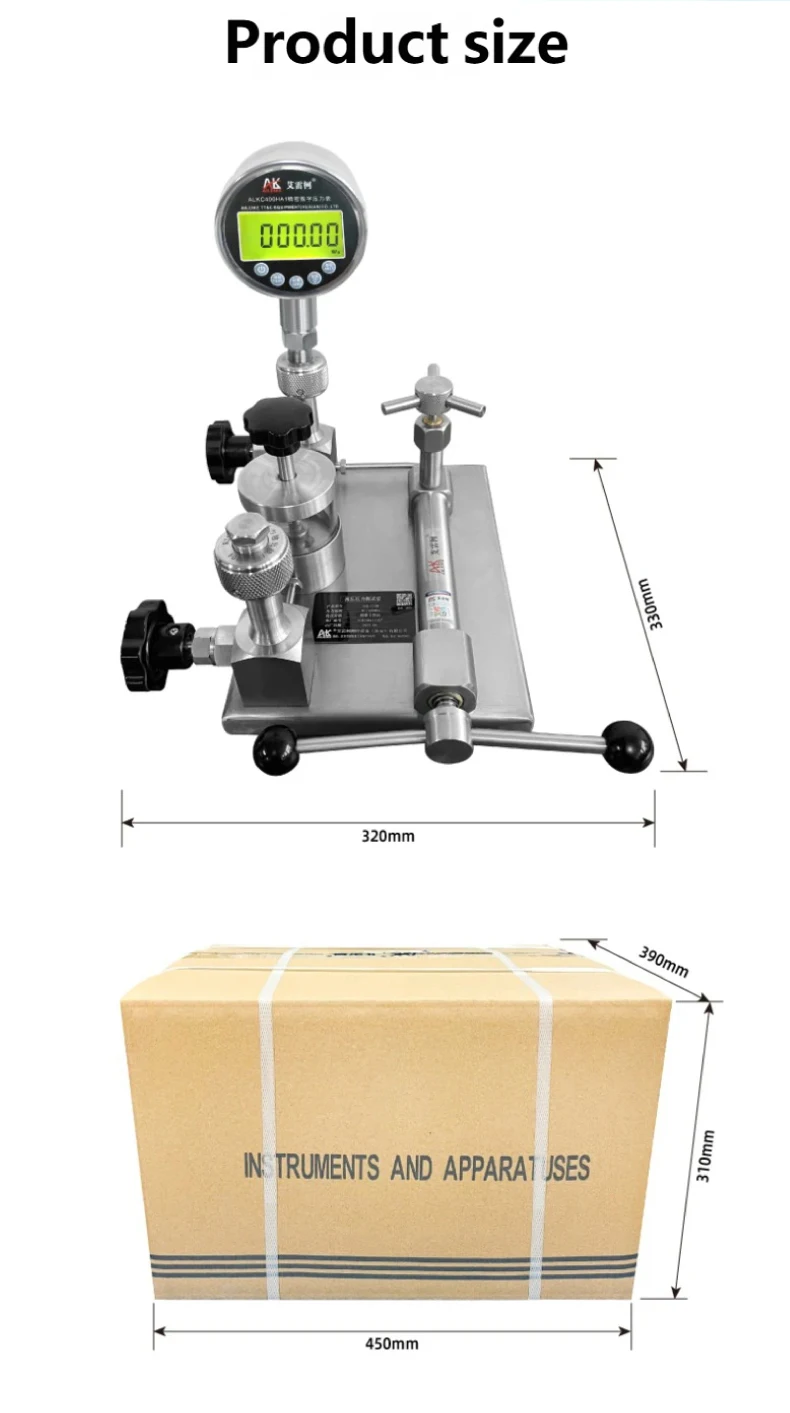

Hydraulic Stand Dimensions |
330×320mm |
|
Total Packaged Weight |
12.4kg |
|
Total Packaged Dimensions |
450×390×310mm |
|
Standard Product |
Certificate of Conformity ×1, User Manual ×1 |
