Description
Overviews
Armored thermal resistance wzpk-103S is a temperature sensor, it is smaller than the assembled resistor diameter, easy to bend, good shock resistance, suitable for installation in the assembly platinum resistor can not be installed in the occasion, has the advantages of accuracy, sensitivity, fast thermal response time, stable quality, long service life and so on.
Specification
Product application
Technical index
Dividing numberPt100:A Ro=100 ±0.06Ω
Class B Ro=100 ±0.12Ω
Range specification
|
Type number
|
Dividing number
|
Temperature range ℃
|
Precision grade
|
Allowable deviation t ℃
|
|
WZPK
|
Pt100
|
-200 / 500
|
Class A
|
±(0.002 or + 0.002 / t /)
|
|
Class B
|
±(0.3 or + 0.005 / t /)
|
Note: in the formula"t" is the absolute value of the measured temperature of the temperature sensor.

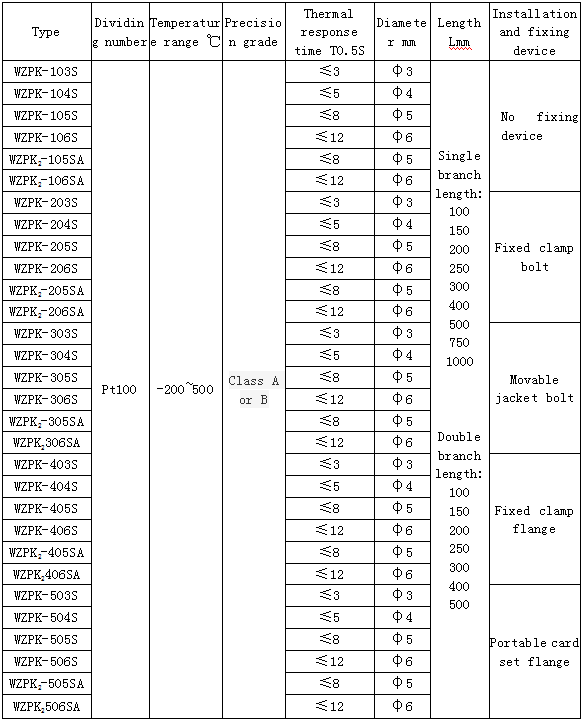

Model specification
Simple terminal
