Description
Product Features
1、The electric cut-off switch can quickly move into place and complete the opening and closing action quickly.
2、Easy to operate, only need to rotate 90 ° from fully open to fully closed, making it convenient for remote control.
3、Large circulation capacity, with no resistance when fully opened.
4、Electric O-type ball valves have a wide range of applicability, and can be connected with different methods and sealed with different materials to meet different working conditions.
5、It has excellent self-cleaning function and can easily cut off various impurities in the pipeline, effectively ensuring smooth management.

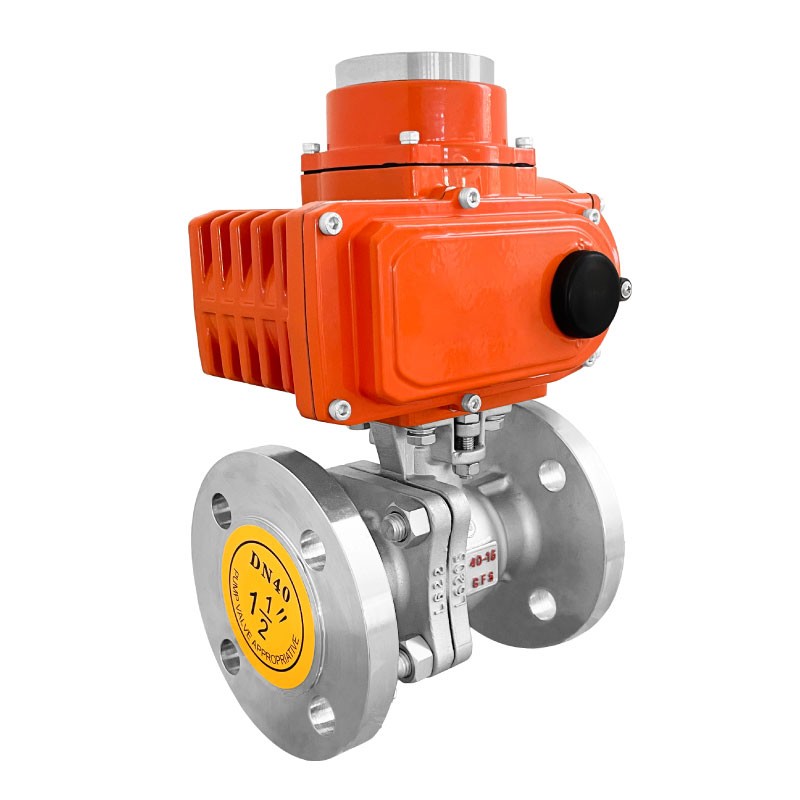

Product Display
01
02
03
Stainless steel
flange
Electric actuator
Precision cast
thickened valve body
Stainless steel flanges have high mechanical strength and ductility, high strength, high
temperature resistance, and are not easily rusted
Dual use flashlight,
small size,
High torque, built-in
thermal protection,
Long lifespan
The valve body is made of 304 stainless steel,
Thickened valve body,
corrosion-resistant
and rust resistant,
Close contact without
leakage,
Reduce wear and tear
Function Display
01
02
03
04
Switch indication
Manual setter
Soft seal does not leak
Stainless steel valve body
O-ring ball valve core
The valve core (ball) of the O-type ball valve is spherical, and structurally, the ball seat is embedded in the valve body side seat during sealing. The relative moving parts are made of self-lubricating materials with extremely low friction coefficients, resulting in low operating torque. In addition, the long-term sealing of the sealing grease makes the operation more flexible. Generally used for two position adjustment, with a fast opening flow characteristic.
|
Product Information |
|
|
Customized processing |
Yes |
|
Product name |
Electric O-type ball valve |
|
Nominal pressure |
1.0MPa~1.6MPa |
|
Nominal diameter |
DN50~DN300 |
|
Valve core form |
O-type |
|
Body material |
Cast steel/stainless steel |
|
Traffic characteristics |
Approximate fast opening characteristic |
|
Temperature |
-29~300℃ |
|
Control mode |
Switch type, adjustable type, integral type |
|
Action time |
15-60 seconds |
|
Supply voltage |
AC220、AC380/DC24 |
|
Drive form |
Power drive |
|
Connection method |
Flange connection/threaded connection/clamp connection |
