Description
Product Features

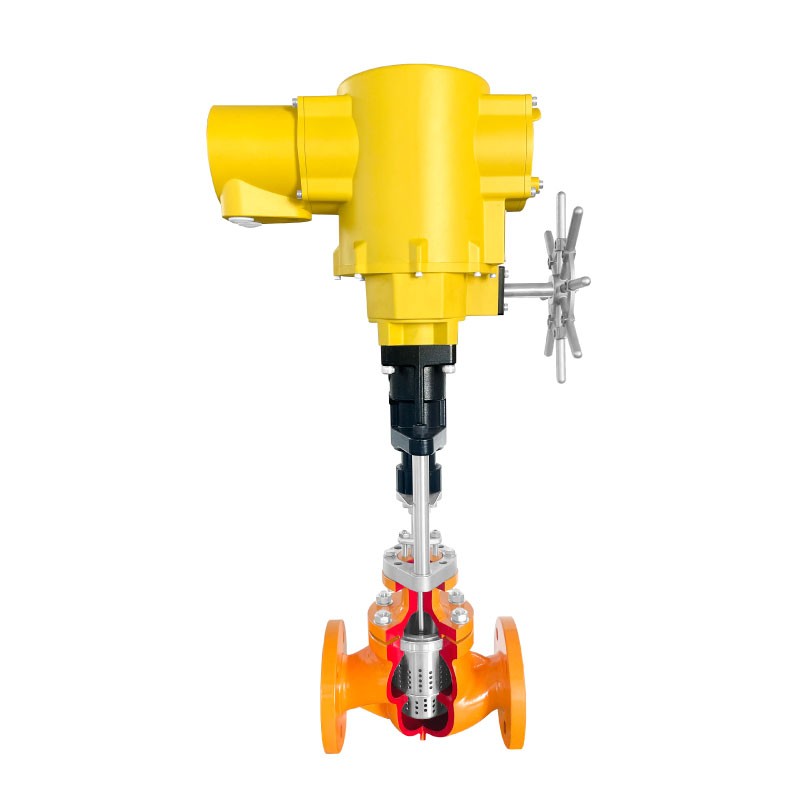

1、The electric porous regulating valve adjusts the flow rate by changing the aperture size. When the medium passes through the valve, the flow rate will be precisely adjusted according to the size of the aperture.
2、Composed of components such as valve body, valve core, locating pin, and orifice plate. This structure enables the valve to have high stability and reliability when regulating flow.
3、Electric porous regulating valves can be automatically opened and closed through remote control or automatic control systems, greatly improving production efficiency.
|

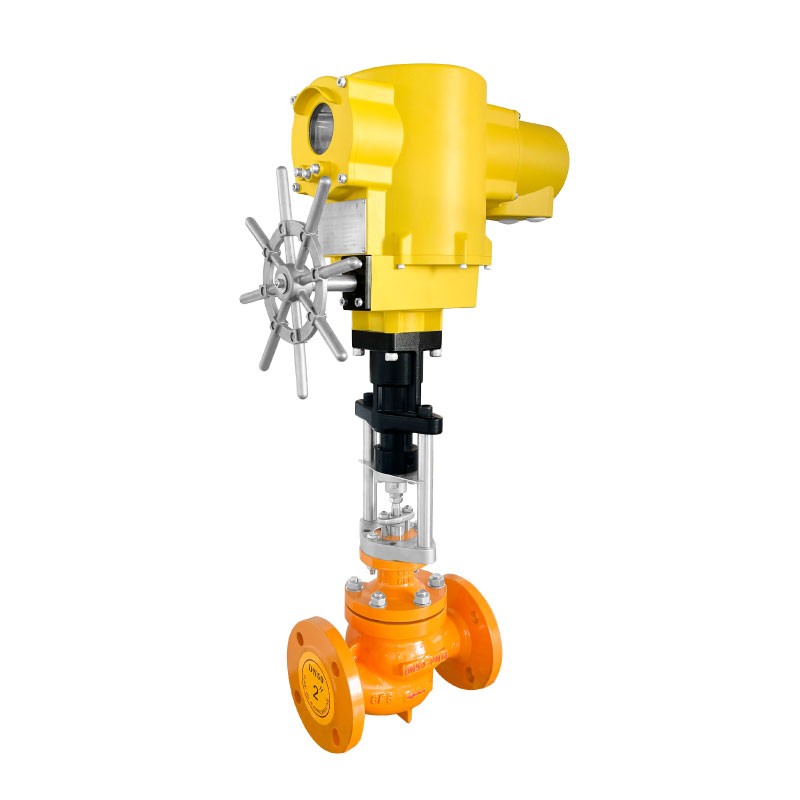

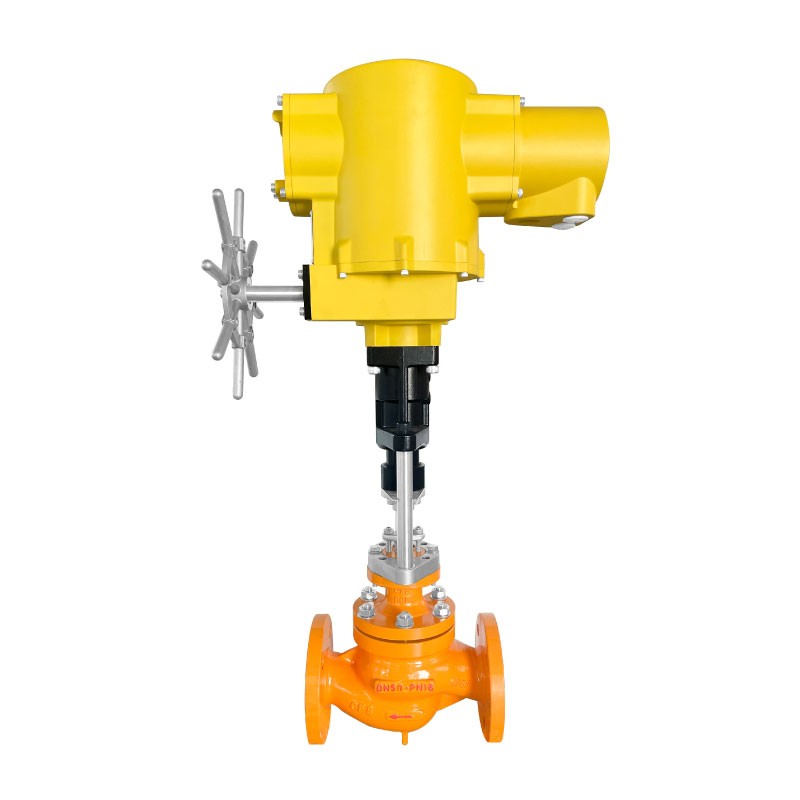

Product Display |
|||
|
01 |
02 |
03 |
04 |
|

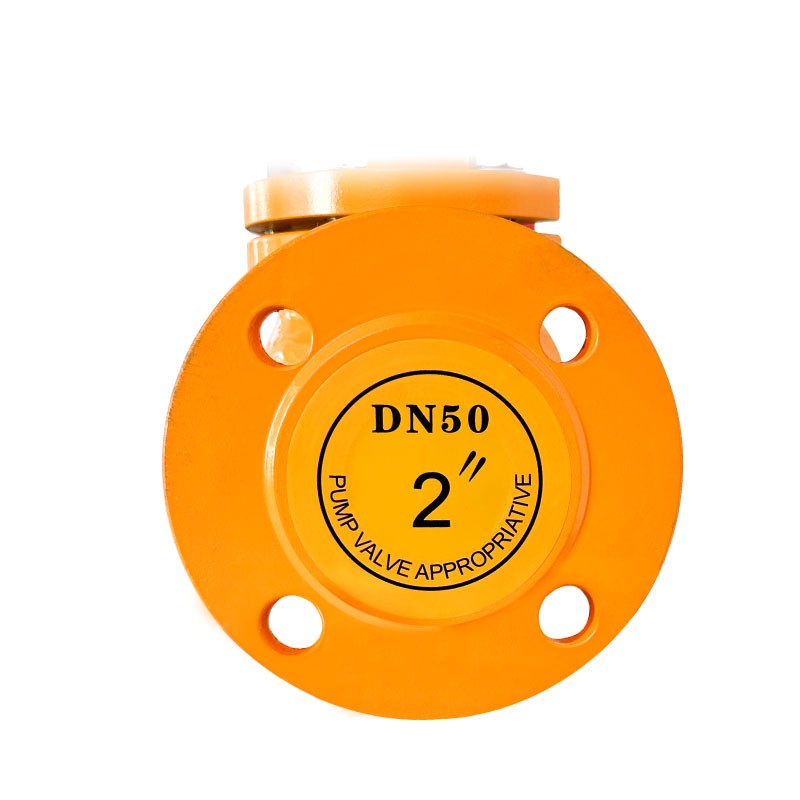

Flange connection |
Electric actuator |
Wheel type precis- ion handwheel |
Precision cast Thickened valve body |
|
Made of high-quality materials,has high mechanical strength and Scalability, high strength, High temperature resistance, not easy to rust |
Contains built-in controller Module integrated structure |
Reasonable design,simple structure,easy to operate, long service life |
The valve body is made of stainless steel, thickened, corrosion-resistant and rust proof, with tight contact and no leakage, reducing wear and tear |
|

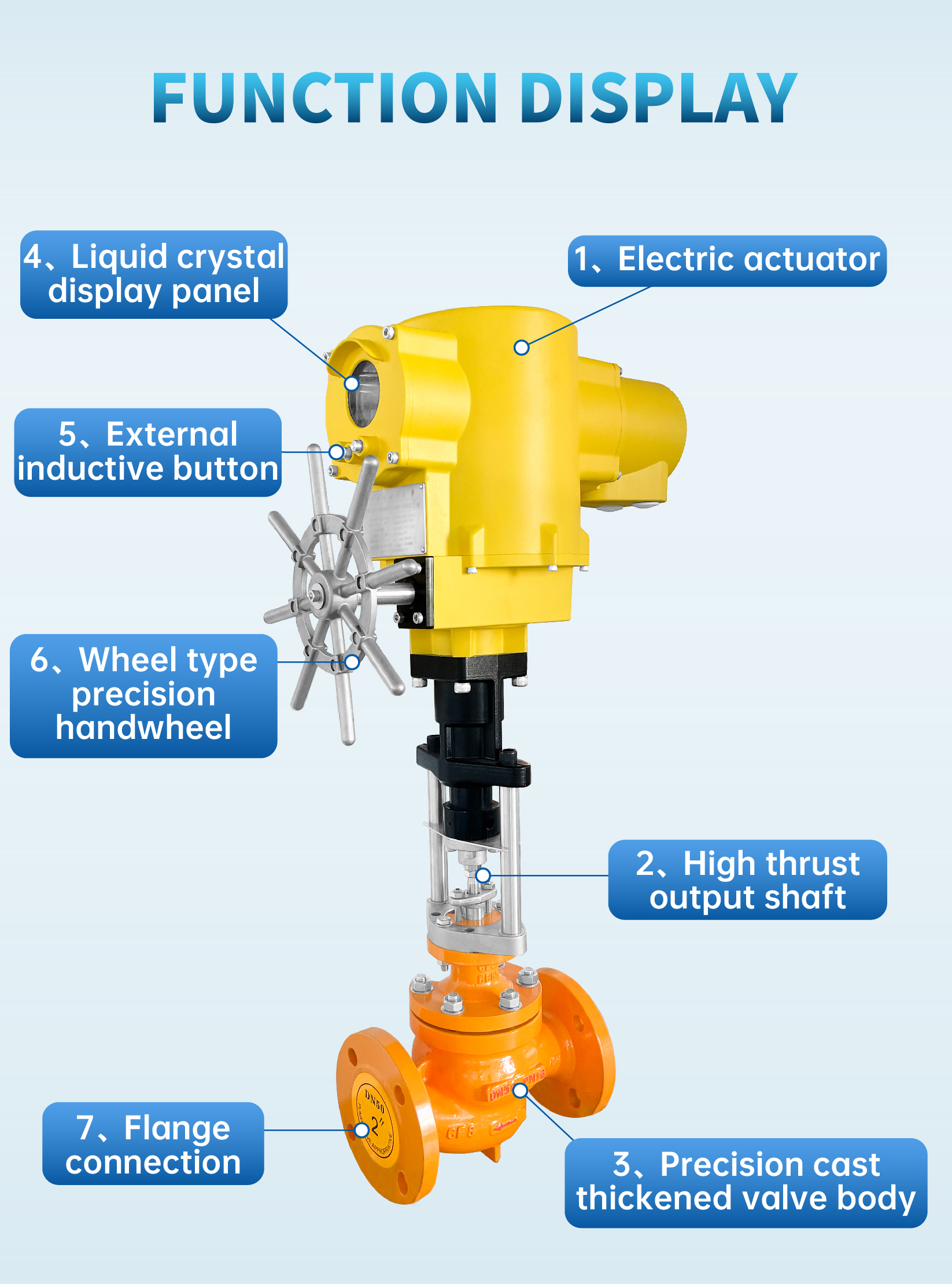

Function Display |
||||||
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
|
Electric actuator |
High thrust output shaft |
Precision cast thickened valve body |
Liquid crystal display panel |
External Inductive button |
Wheel type precision handwheel |
Flange connection |
|
Product Information |
|
|
Customized processing |
Yes |
|
Product name |
Electric porous sleeve regulating valve |
|
Nominal pressure |
1.6MPa~4.0MPa |
|
Nominal diameter |
DN25~DN450 |
|
Drive mode |
Electric |
|
Body material |
Cast steel/stainless steel |
|
Connection method |
Flange connection |
|
Temperature |
-20℃~250℃ |
|
Cover form |
Bolt compression type |
|
Gasket |
Spiral wound gasket |
|
Upper valve cover form |
Standard, heat sink, extended |
|
Operation mode |
Electric on/off |
|
Packing material |
Reinforced PTFE V-shaped packing and flexible graphite |
