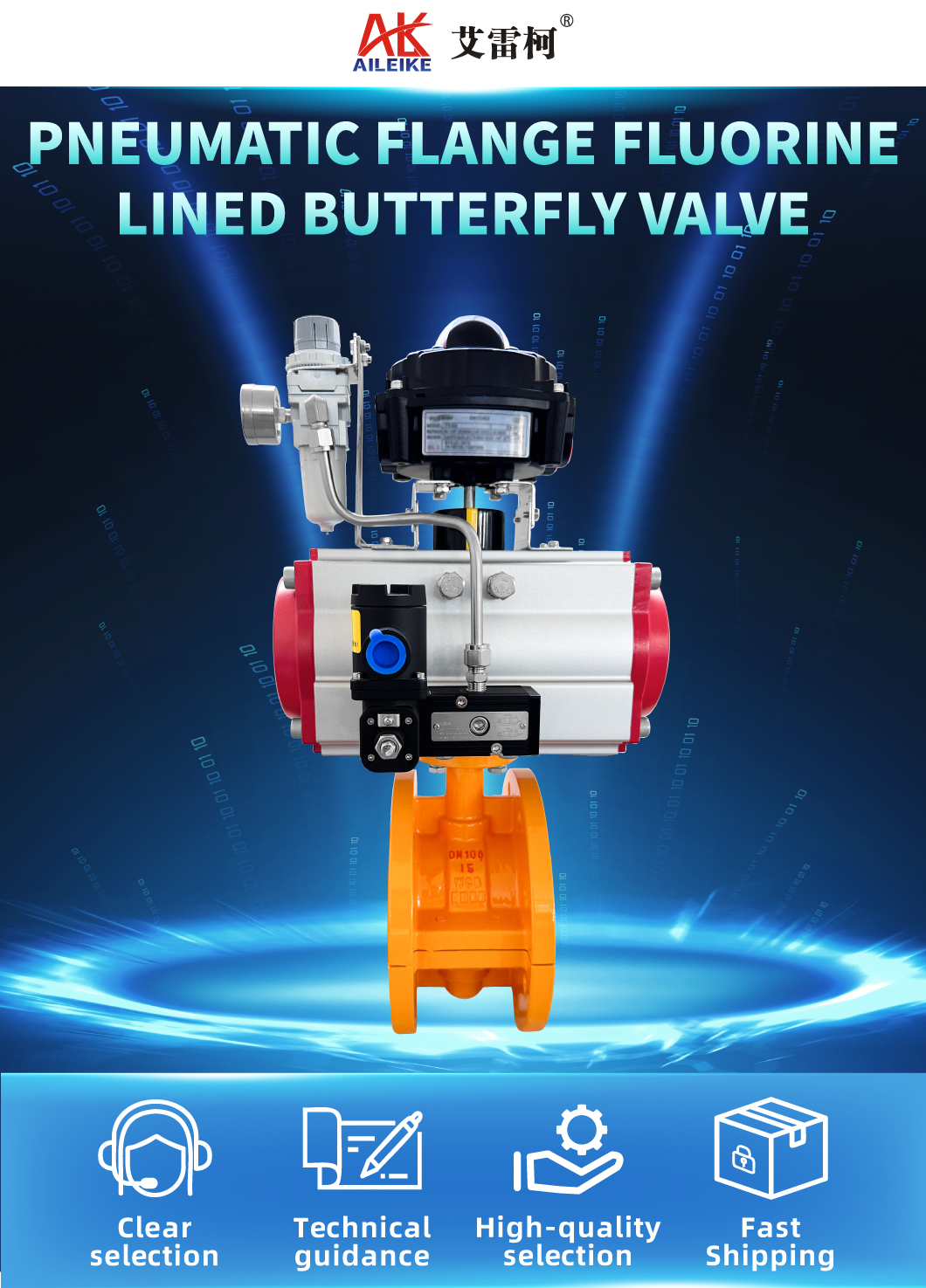

Pneumatic flange lined fluorine butterfly valve ALKD641F46

Pneumatic flange lined fluorine butterfly valve ALKD641F46

Product Item：ALKD641F46

Description

Product Features

1、The butterfly plate has a simple structure, flexible switches, and can quickly respond to control signals.

2、Excellent sealing performance, the pneumatic flange type fluorine lined butterfly valve can be equipped with various accessories according to actual needs, such as position feedback devices, manual devices, etc., to provide it with more functions.

Product Display
01	02	03
Flange connection	Pneumatic thin film actuator	Precision cast thickened valve body
Made of high-quality materials, it has high mechanical strength and ductility, High strength, high temperature resistance, not easy to rust	Double acting single acting aluminum cylinder, compact structure, The body is easy to install, safe and non-toxic, Long service life, high torque, strong sealing performance	The valve body is made of stainless steel material, which is corrosion-resistant and rust proof, Long service life

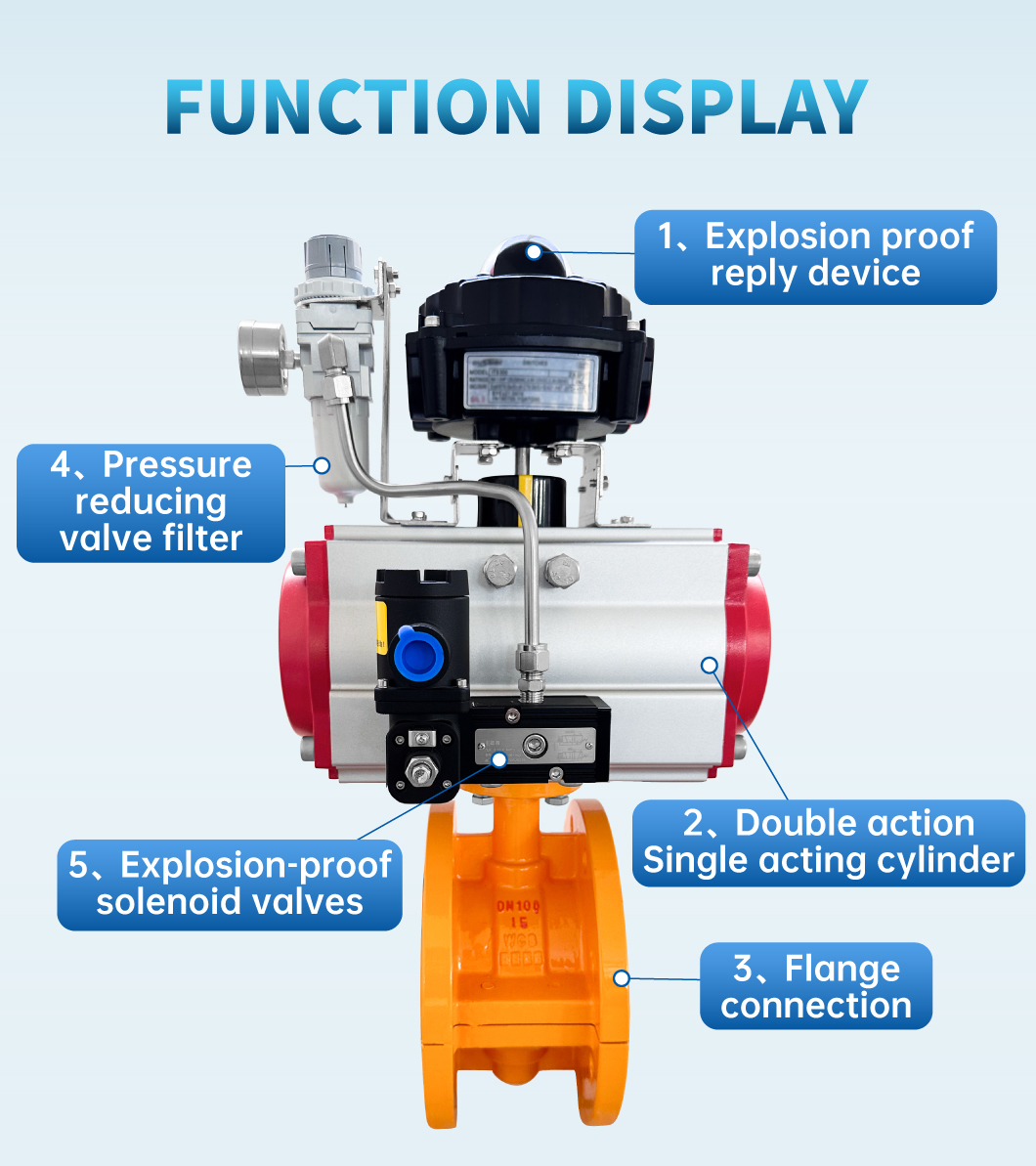

Function Display

Explosion proof

reply device

Double action

Single acting cylinder

Flange connection

Pressure reducing

valve filter

Explosion-proof

solenoid valves

Product Information
Customized processing	Yes
Product name	Pneumatic flange fluorine lined butterfly valve
Nominal pressure	1.0/1.6MPa
Nominal diameter	DN40~DN300
Drive mode	Pneumatic
Valve plate material	Cast steel/stainless steel
Body material	Cast steel/stainless steel
Connection method	Flange connection
Temperature	-50℃~150℃
Packing material	Graphite, packing
