Description
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|

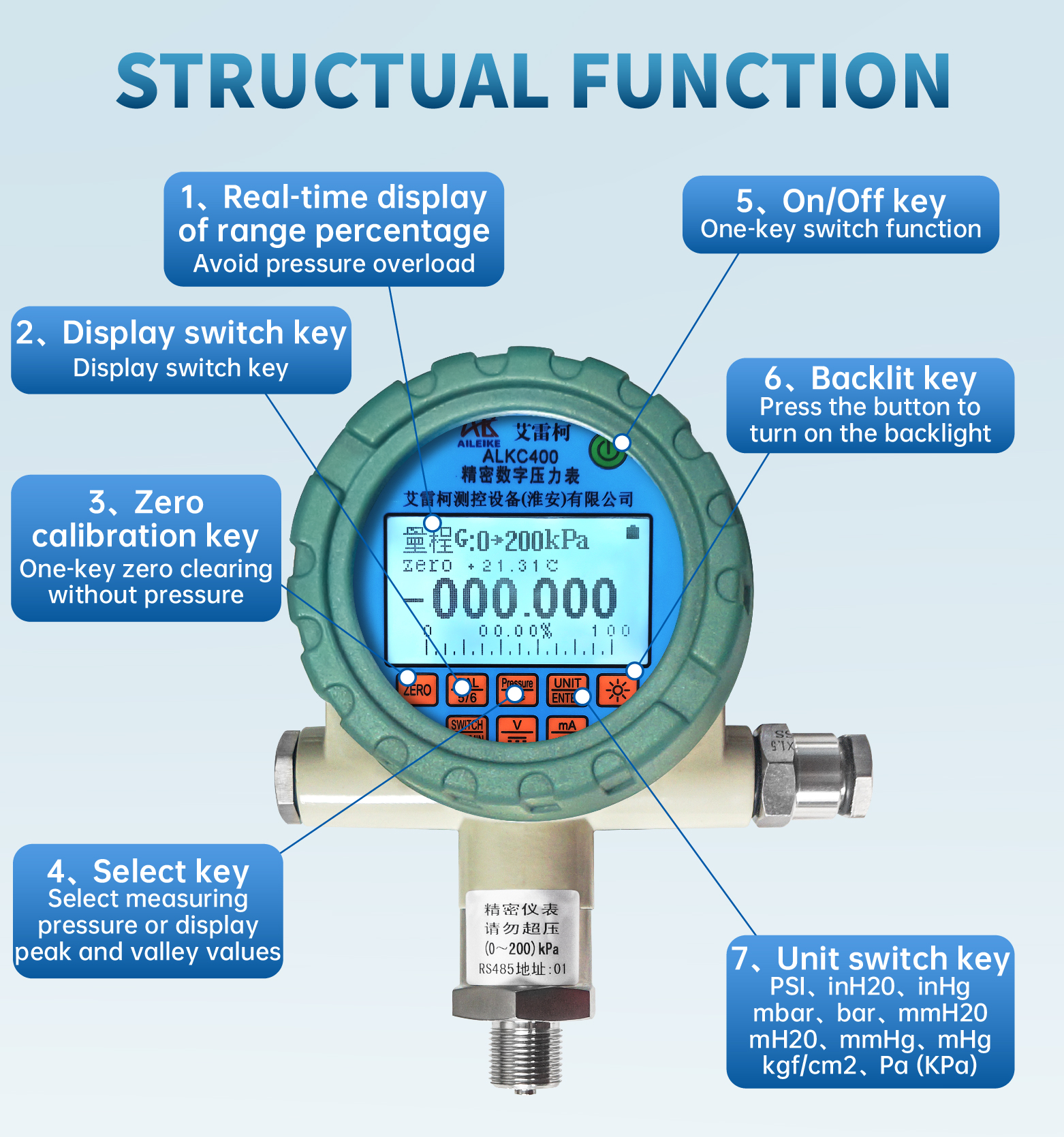

Real-time display of range percentage Avoid pressure overload |
Display switch key Display switch key |
Zero calibration key One-key zero clearing without pressure |
Select key Select measuring pressure or display peak and valley values |
On/Off key One-key switch function |
Backlit key Press the button to turn on the backlight |
Unit switch key PSI、inH20、inHg mbar、bar、mmH20 mH20、mmHg、mHg kgf/cm2、Pa (KPa) |
|
Product name |
Precision digital explosion-proof pressure gauge |
|
Model |
ALKC400（B） |
|
Overload capacity |
1.2 times the full scale |
|
Enclosure material |
Explosion-proof Aluminum Alloy Enclosure |
|
Pressure range |
-1~0~600~1000bar/1.013-0bar abs(Pressure selectable) |
|
Protection rating |
IP66 |
|
Power supply voltage |
24V (default) / 220V |
|
Accuracy |
0.05%F·S |
|
Pressure connection |
The thread size is M20 × 1.5(M). If you need other thread sizes, please contact us for consultation. |
|
Relative humidity |
≤80%RH |
|
Temperature range |
0～50℃ |
|
Display |
5-digit or 6-digit display selectable via key |
|
Pressure type |
Gauge Pressure/Absolute Pressure/Negative Pressure/Micro Pressure |
|
Communication |
Modbus RS485 |
|
Dial outer diameter |
106mm |
|
Net Weight |
Approximately 1.8kg |
|

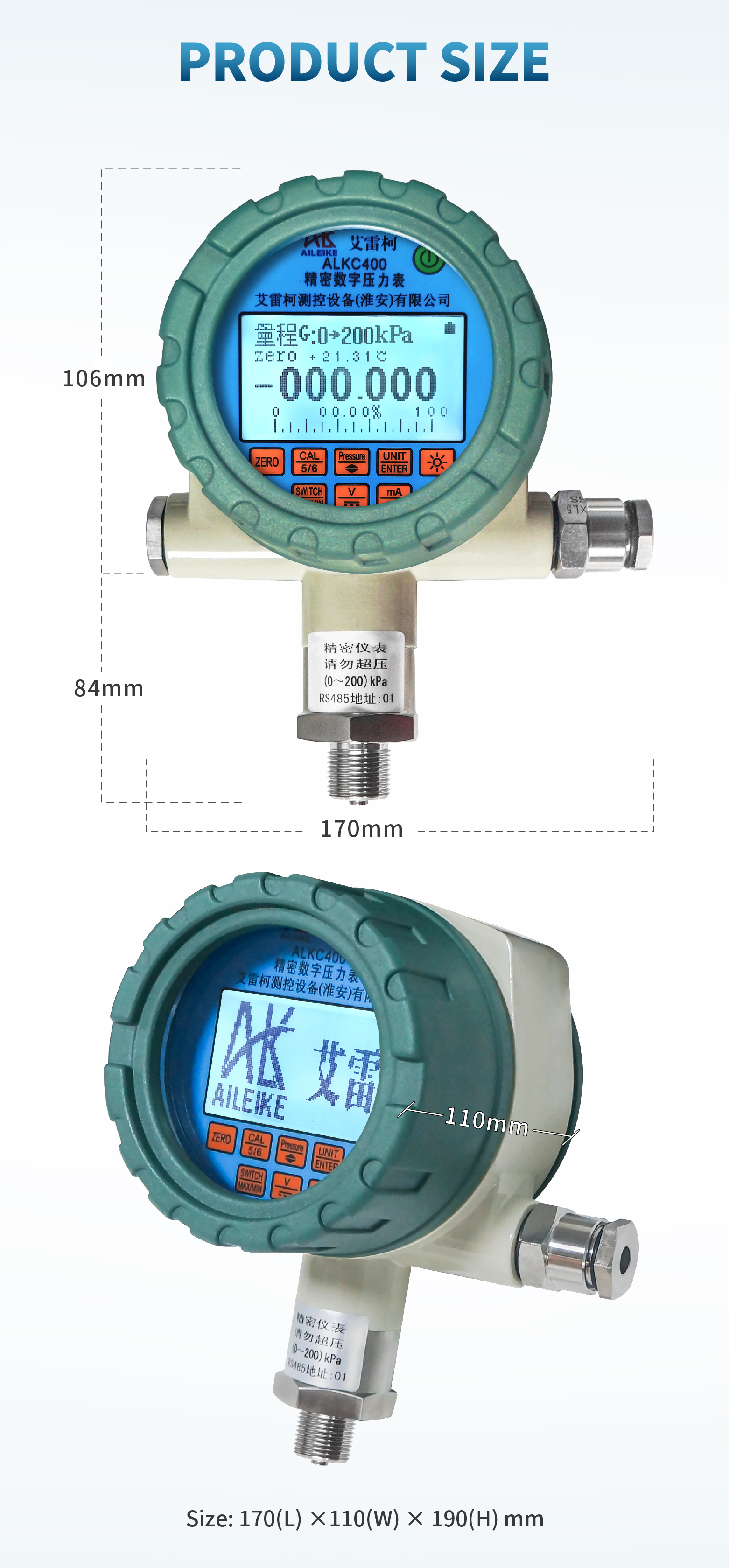

Product size |
190×110×170mm |
|
Package weight |
Approximately 3kg |
|

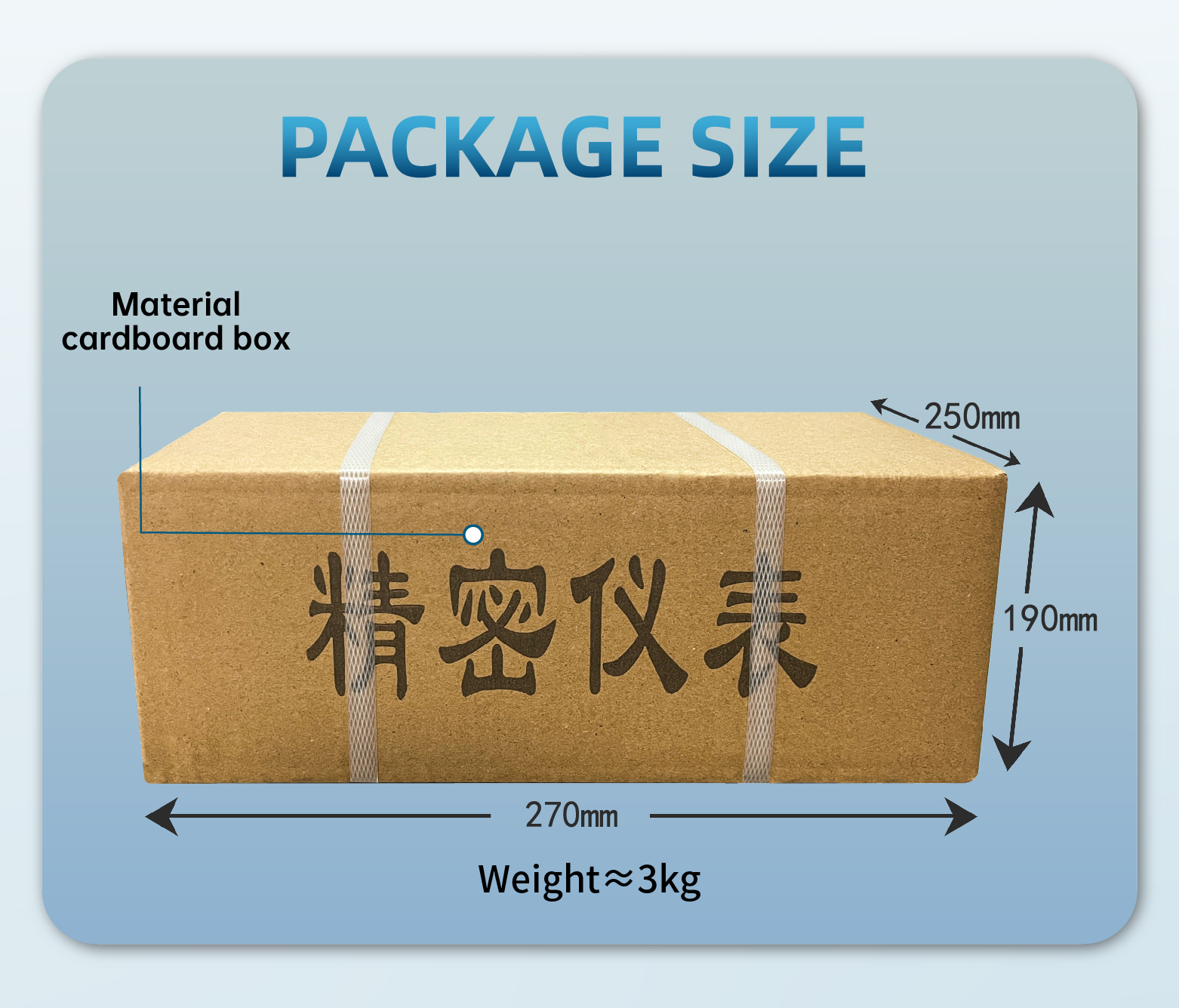

Package size |
270×250×190mm |
