Description

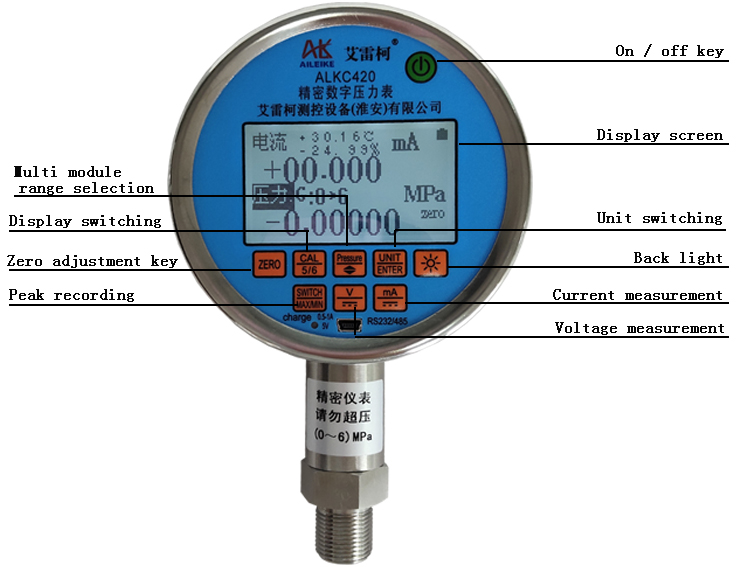

Precision digital pressure gauges alkc420 have optional 5-bit and 6-bit digital displays for important industrial applications. Display the fluctuation of current, voltage and pressure. The pressure gauge is equipped with 11 optional pressure units, backlight and reset functions.
Origin: Jiangsu, China
Brand: aileike
Model: alkc400
Type: pressure gauge
Pressure range: to 8700 psi (600 bar)
Accuracy: ± 0.02% FS
Dimensions: 110 * 50 mm
Net weight: 600g
Workplace: work area or laboratory
Pressure units: 11 different optional pressure units are available
Power: battery and power adapter
The digital standard meter is a kind of multi-functional instrument, which can measure ± 25madc current or ± 50VDC voltage while measuring pressure. Pressure switch test, automatically record the pressure switch value. It has a 24 volt output. It can be used as the power supply of 4 - 20mA two - wire transmitter
Through RS-232 or RS-485 interface, it can communicate with upper computer, transmit real-time measurement data to special detection software, record data, automatically generate tables, automatically calculate error, store and print verification data. It can calibrate pressure transmitter, pointer pressure gauge, pressure switch (pressure controller), etc.
