Description

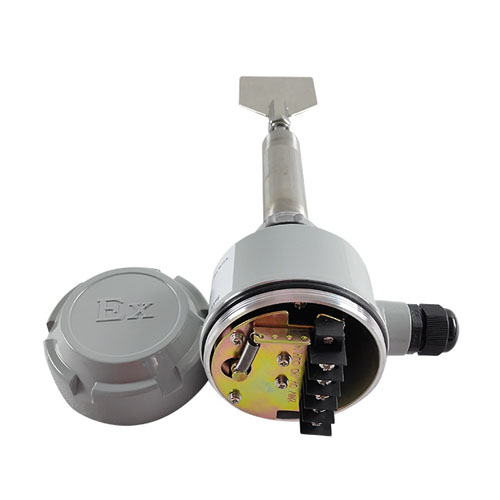

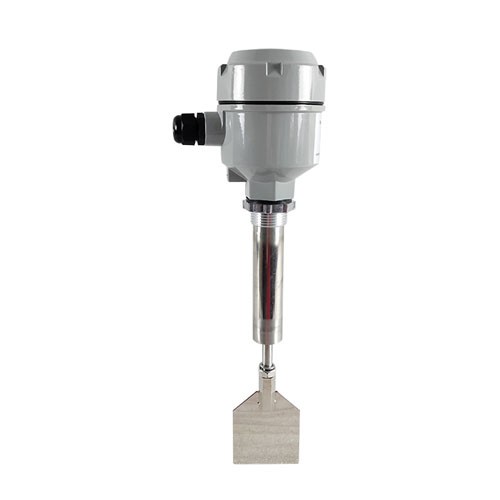

The anti-rotating material level switch ALKZX-D2 has the advantages of simple structure, wide application and convenient maintenance. It is used to control the material level in industrial production. When the material level reaches high or low limit, the contact point output signal is easy to install, can Be installed in any shape of Bin, Bucket, tank and other containers, used to measure the level of material
How it works:
The resistance rotating material level switch blade is connected with the clutch by means of the transmission shaft, and the motor maintains normal operation when the material is not in contact with the blade; when the blade touches the material, the motor power supply is disconnected and stops moving, and the mechanism outputs a contact signal at the same time to indicate that the material level has reached the set height.
Basic parameters:
Power supply:220VAC/50HZ
Power consumption:4W
Contact capacity:SPDT 5A/250VAC
Blade speed:1RPM
Withstand voltage:AC 1500VXlminute
Measure torque:1.0 N ·m
Applicable specific gravity:Above 0.5g/cm3
Working temperature:-20 ≤ 80 ℃ / high temperature type-20 ≤ 400 ℃
|
Type |
ALKZX- |
|||||
|
|
A |
One character |
Blade form |
|||
|
|
B |
Double throwing type |
||||
|
|
C |
Sickle type |
||||
|
|
D |
Shovel type |
||||
|
|
E |
Dust proof type |
||||
|
|
|
1 |
Common type |
Structure form |
||
|
|
|
2 |
Shaft length adjustable type |
|||
|
|
|
|
1 |
Thread installation |
Installation form |
|
|
|
|
|
2 |
Flange installation |
||
|
|
|
|
|
D |
Flameproof type: d Ⅱ BT4 |
Options |
|
|
|
|
|
H |
High temperature type, process temperature: ≤ 200 ℃ |
|
|
|
|
|
|
Y |
Power supply: 220VAC |
|
