  • Welding fixed conical protective tube thermocouple WRN-624
  • Welding fixed conical protective tube thermocouple WRN-624
Welding fixed conical protective tube thermocouple WRN-624 Welding fixed conical protective tube thermocouple WRN-624

Welding fixed conical protective tube thermocouple WRN-624

Welding fixed conical protective tube thermocouple 〞〝 Temperature Monitor〞〝 Temperature Sensor
Facebook
Twitter
Youtube
TIKTOK
TELEGRAM
Inquiry Send Email

Description

Overviews

Wrn-624 thermocouple with welded fixed cone protection tube is used as temperature sensor in industry. It is usually used with display instrument, recording instrument and electronic regulator. It can directly measure the surface temperature of liquid, steam and gas medium in the range of 0 ℃ to 1800 ℃ in various production processes.

Specification

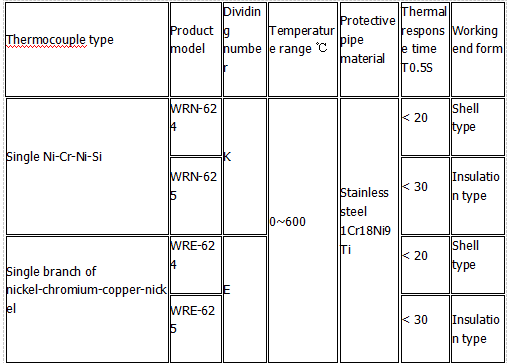

Thermocouple cate

gory

Code name

Dividing number

Measuring range ℃

Allowable deviation t ℃

Platinum and rhodium30-Platinum and Rhodium6

WRR

B

01800

±1.5 ℃ or ±0.25%

Platinum rhodium 10-platinum

WRP

S

0 ≤ 1600

±1.5 ℃ or ±0.25%

Nickel-chromium-nickel-silicon

WRN

K

0 / 1300

±2.5 ℃ or ±0.75%

Nickel chromium copper nickel

WRE

E

0 / 800

±2.5 ℃ or ±0.75%

Model selection:

W

R

Specification

Content

R

Platinum and rhodium30-Platinum and Rhodium6

P

Platinum and rhodium10-Platinum

N

Nickel-chromium-nickel-silicon

E

Nickel-chromium-copper-nickel (nickel-chromium-copper)

Temperature

-

1

Non-fixed installation type

2

Fixed thread type

3

Movable flange

4

Fixed flange type

5

Movable flange angle ruler form

6

Fixed thread conical protective tube

Install fixed form

2

Splash proof

3

Waterproof type

4

Flameproof type

Junction box form

0

Φ 16mm protection tube

1

Φ 25mm protection pipe (double casing)

2

Φ 16mm High Aluminium Pipe (single layer casing)

3

Φ 20mm high aluminum pipe

Design serial number

Welded fixed conical protection tube thermocouple

Note:1) Waterproof junction box.

2) nominal pressure: 30 MPA, velocity: < 80m/s

Two stages of conductors with different components are welded to form a loop. The direct temperature measuring end is called the measuring end, and the terminal terminal is called the reference terminal. When there is a temperature difference between the measuring end and the reference end, the thermal current will be generated in the loop, which will be connected to the display instrument, and the corresponding temperature value of the thermoelectric force produced by the thermocouple will be indicated on the instrument.

The thermoelectric force of the thermocouple will increase with the increase of the temperature at the measuring end. The thermoelectric force is only related to the material of the armored thermocouple conductor and the temperature difference at both ends, and has nothing to do with the length and diameter of the thermal electrode.
