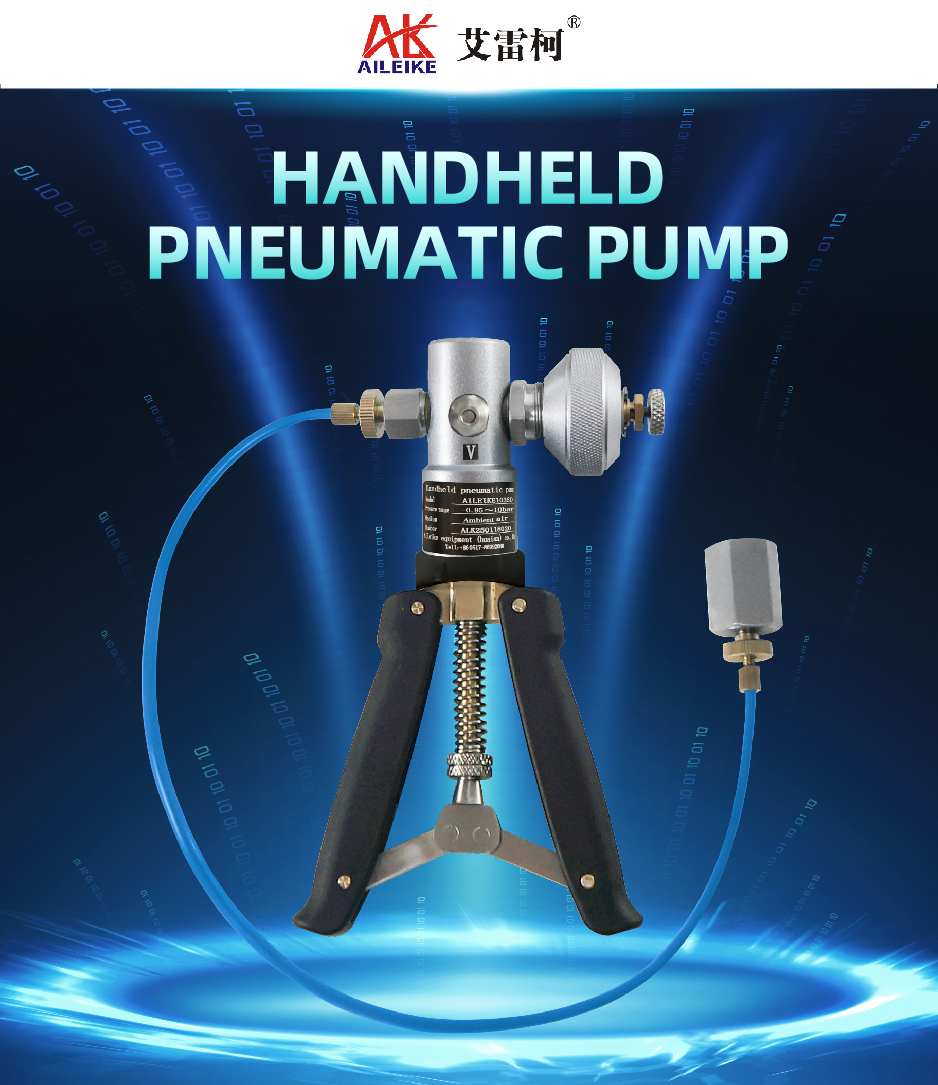

Pneumatic Pumps AILEIKE103SD -95~10bar

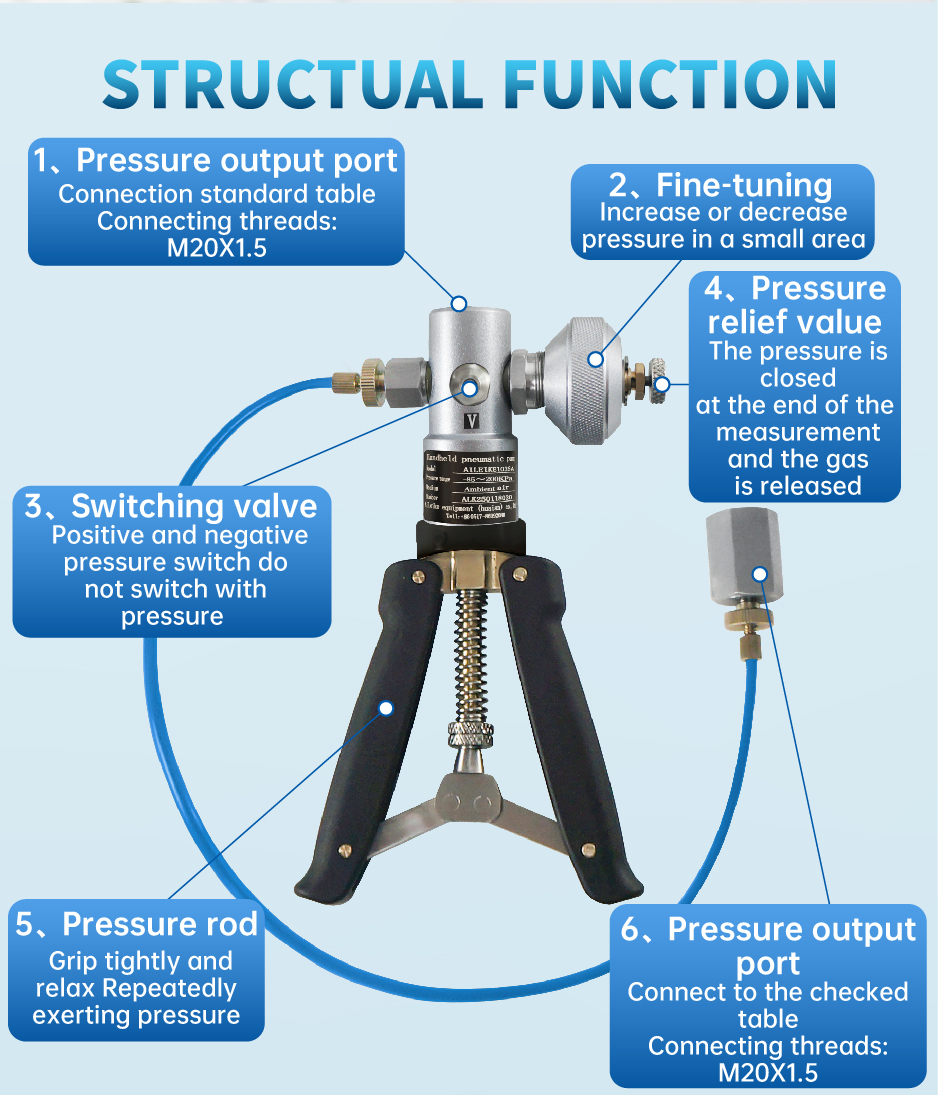

1	2	3	4	5	6
Pressure cutiet Connection standard table Connecting threads: M20X1.5	Fine tuning Increase or decreasepressure within a smallrange	Switching valve Positive and negativepressure switch donot switch withpressure	Pressure ReliefValue The pressure is closedat the end of the measurementand the gas is released	Pressure rod Grip tightly andrelax Repeatedly exerting pressure	Pressure output port Connect to the checkedtable Connecting threads: M20X1.5

Product name	Handheld pneumatic pump
Model	AILEIKE103SD
Measuring range	-0.95~10bar
Environmental conditions	Laboratory or field
Way of Pressure	Hand movement
Basic thread	M20×1.5
Applicable medium	Ambient air
Net weight	Approximately 0.8Kg
Size	220×120×50mm
Weight after product packaging	Approximately 3.8Kg
Product packaging size	310×290×160mm
Product standard configuration	Certificate of conformity x 1 copy Instructions x 1 copy Quality assurance card x 1 copy Output portplug x 1 piece Portable bag x 1 piece Gaskets x 40 piece Raw tape x 1 piece Pressure conversion joint x 9 piece

Equipped with nine conversion joints
M20X1.5(M) G1/4(F)	1 piece
M20X1.5(M) G1/8(F)	1 piece
M20X1.5(M) NPT1/4(F)	1 piece
M20X1.5(M) NPT1/8(F)	1 piece
M20X1.5(M) BSP1/4(F)	1 piece
M20X1.5(M) BSP3/8(F)	1 piece
M20X1.5(M) NPT1/8(M)	1 piece
M20X1.5(M) NPT1/4(M)	1 piece
M20X1.5(M) BSP3/8(M)	1 piece
