Description
|
1 |
2 |
3 |
4 |
|
Output 1 Connecting standard tables or checklists Connecting threads： M20X1.5 |
Air release valve Locking during pressurization Open during back pressure |
Fine tuning Drive piston movement through operation |
Output 2 Connecting standard tables or checklists Connecting threads： M20X1.5 |
|

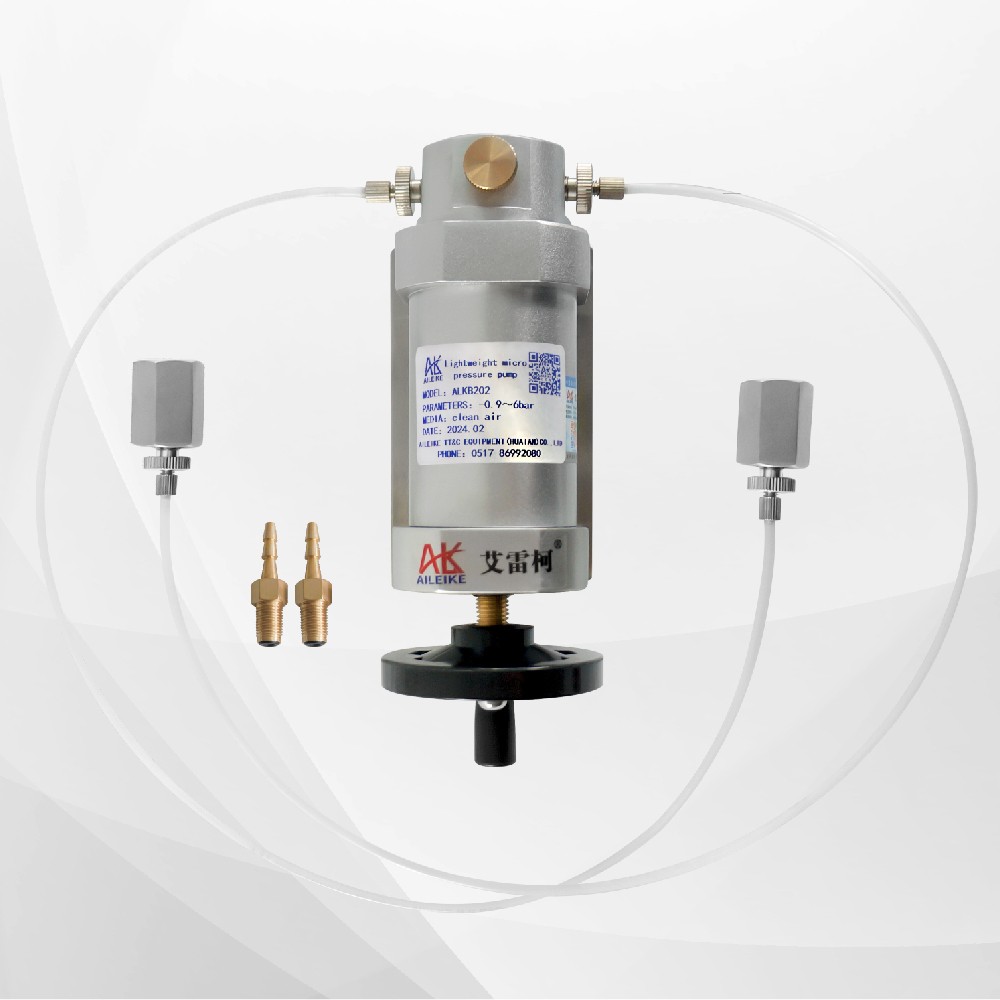

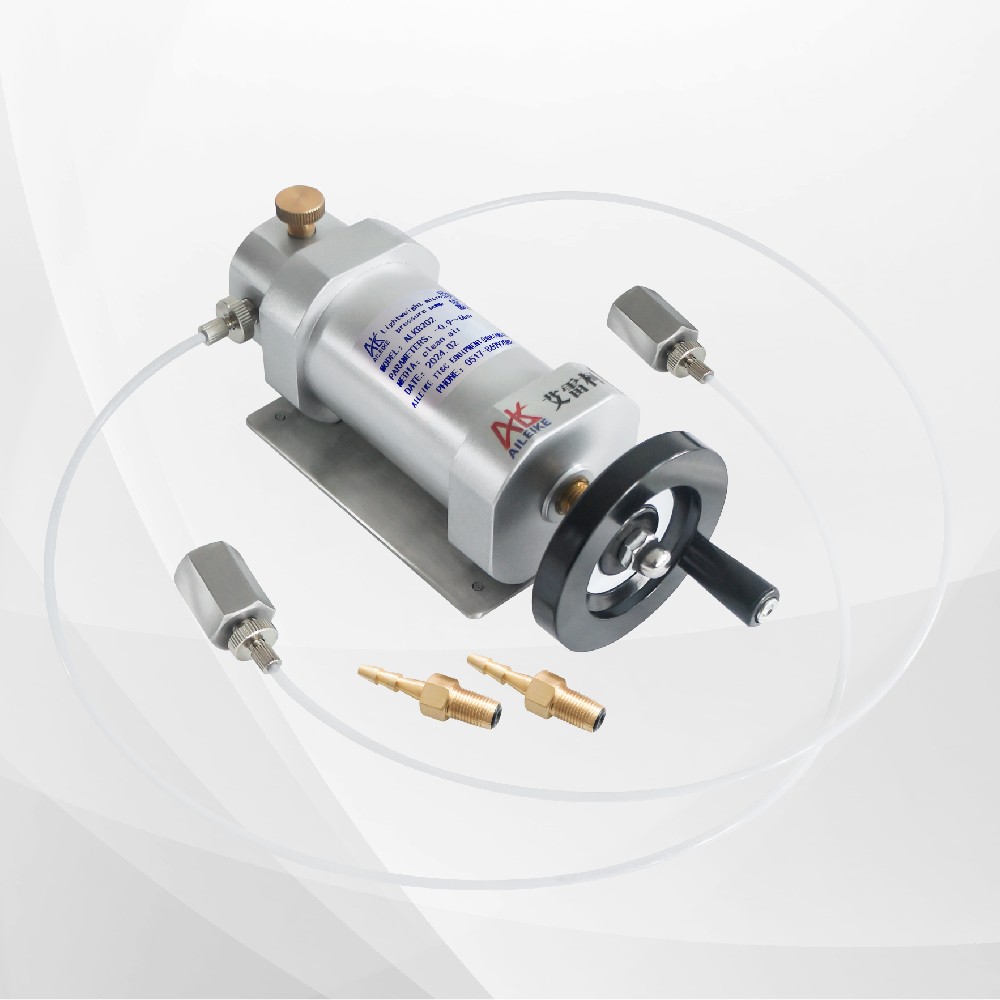

Product name |
Lightweight micro pressure pump |
|
Model |
ALKB202 |
|
Measuring range |
-0.9~6 bar |
|
Regulating fineness |
10 pa |
|
Output port |
Two |
|
Pressure connection |
The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation. |
|
Ambient temperature |
-10~60℃ |
|
Measurement medium |
Clean air |
|
Way of Pressure |
Hand movement |
|
Net weight |
Approximately 1.8kg |
|

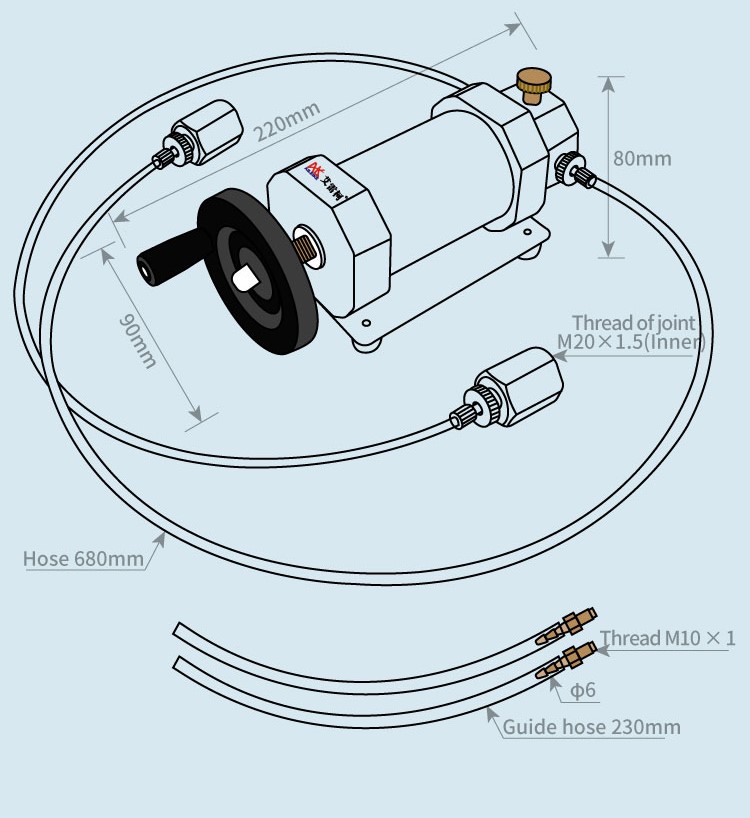

Size |
220×80×90mm |
|
Weight after packaging |
Approximately 3.6kg |
|

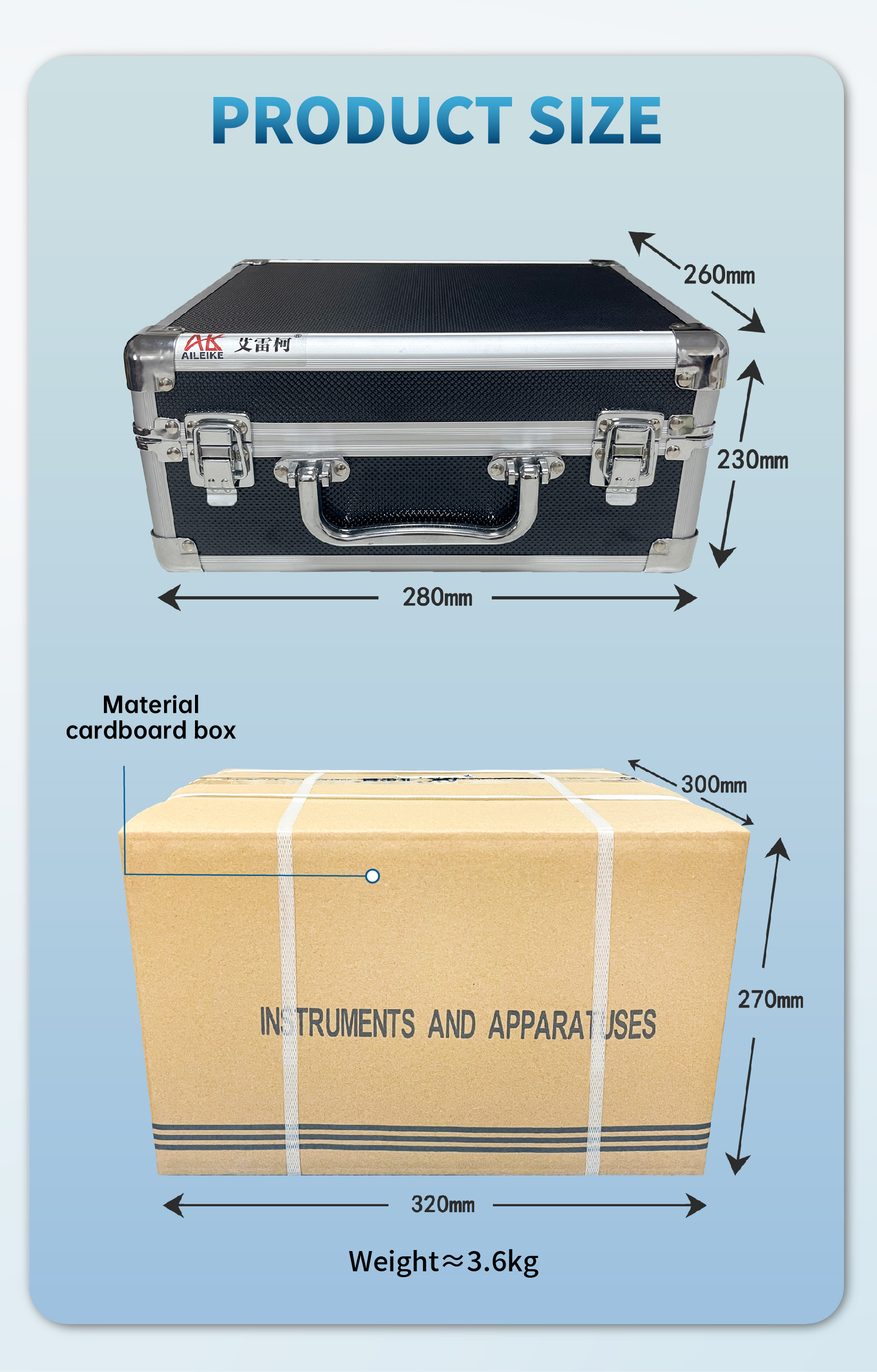

Product packaging size |
320×300×270mm |
|
Product standard configuration |
Joint hose x2 Guiding hose x2 Guide joint x 2 Sealing ring x 4 Output port plug x 1 Instruction manual x 1 Certificate of conformity x 1 Warranty card x 1 |
