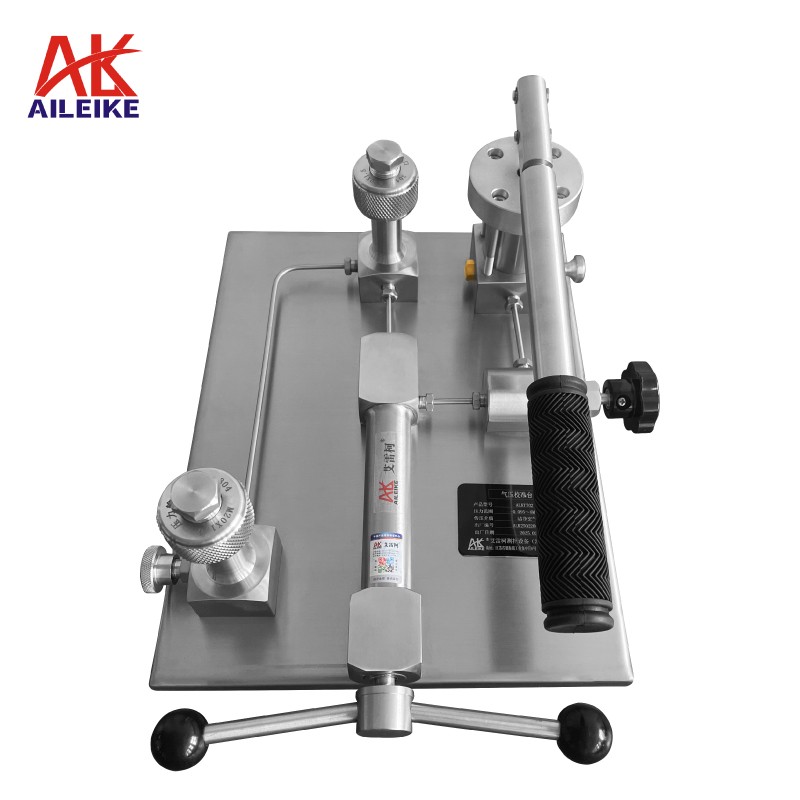

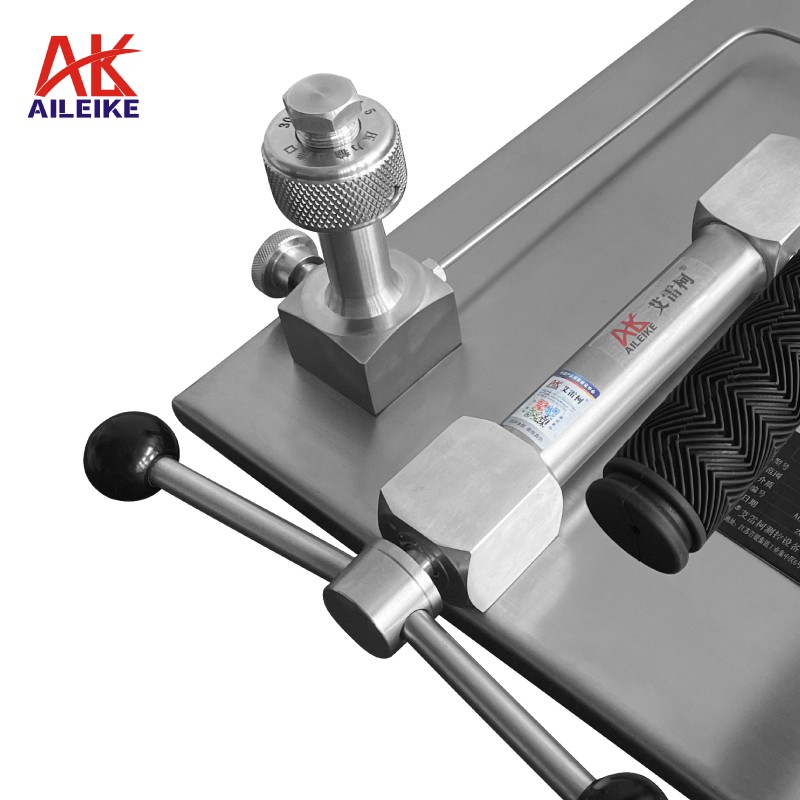

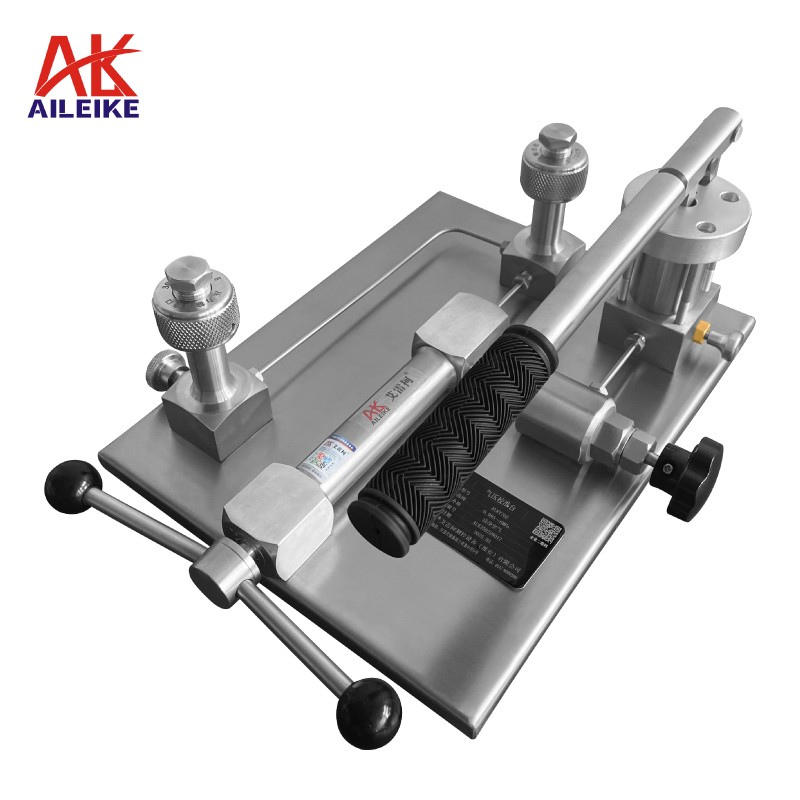

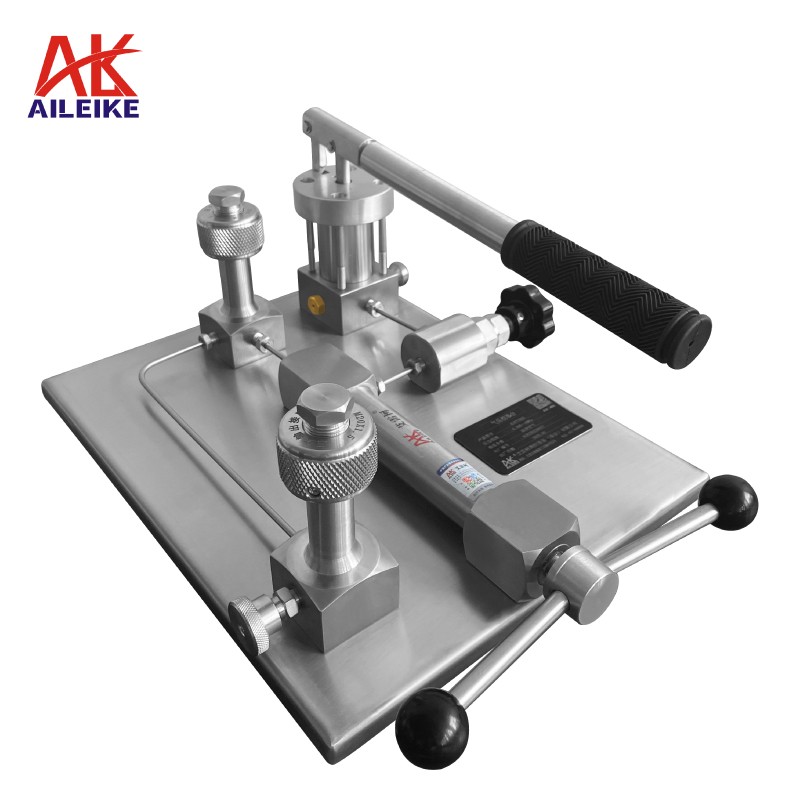

Air pressure calibration table ALKT702G

1

2

3

4

5

6

7

8

9

Output 2

Connecting standard

tables or checklists

Connecting threads：M20X1.5

Ｐiston

A device that

produces gas

through upward

and downward

movement

Pump body assembly

Output 1

Connecting

standard tables or

checklists

Connecting threads：

M20X1.5

Switching valve

Press in to measure

positing pressure

Pull out to measure

negative pressure

Vent valve

Close during

pressurization,

release gas at

the end of

measurement

Pressure

stabilizing valve

When the output

pressure is

unstable

Lock to maintain

stable pressure

Fine tuning

Small scle increase or

decrease

in pressure

Rod

Drive the piston column

to move through operation

Product name

Pressure table

Model

ALKT702G

Measuring range

-0.95~100 bar

Regulating fineness

10 pa

Output port

Two

Pressure connection

Quick thread (M20 × 1.5)

Ambient temperature

0~50℃

Measurement medium

Clean air

Way of Pressure

Hand movement

Net Weight

Approximately 9.0kg

Product size

420×320×190mm

Packaged weight

Approximately 9.8kg(packaging material is cardboard box)

Product packaging size

460×390×290mm

Product standard configuration

Certificate of conformity × 1

Instruction manual × 1

Quality assurance card × 1

Sealing ring × 2

Plugs × 2
