Description
|
01 |
02 |
03 |
|
Liquid crystal display |
Metal dome |
Communication probe |
|
Clear and intuitive Chinese menu Easy to operate With backlight Night operation is barrier free |
Comfortable operation feel Reasonable arrangement of function keys Number keys can be used Directly enter the relevant functions Easy to operate, long service life |
Integrated molding Card spring design Stable and reliable connection |
|

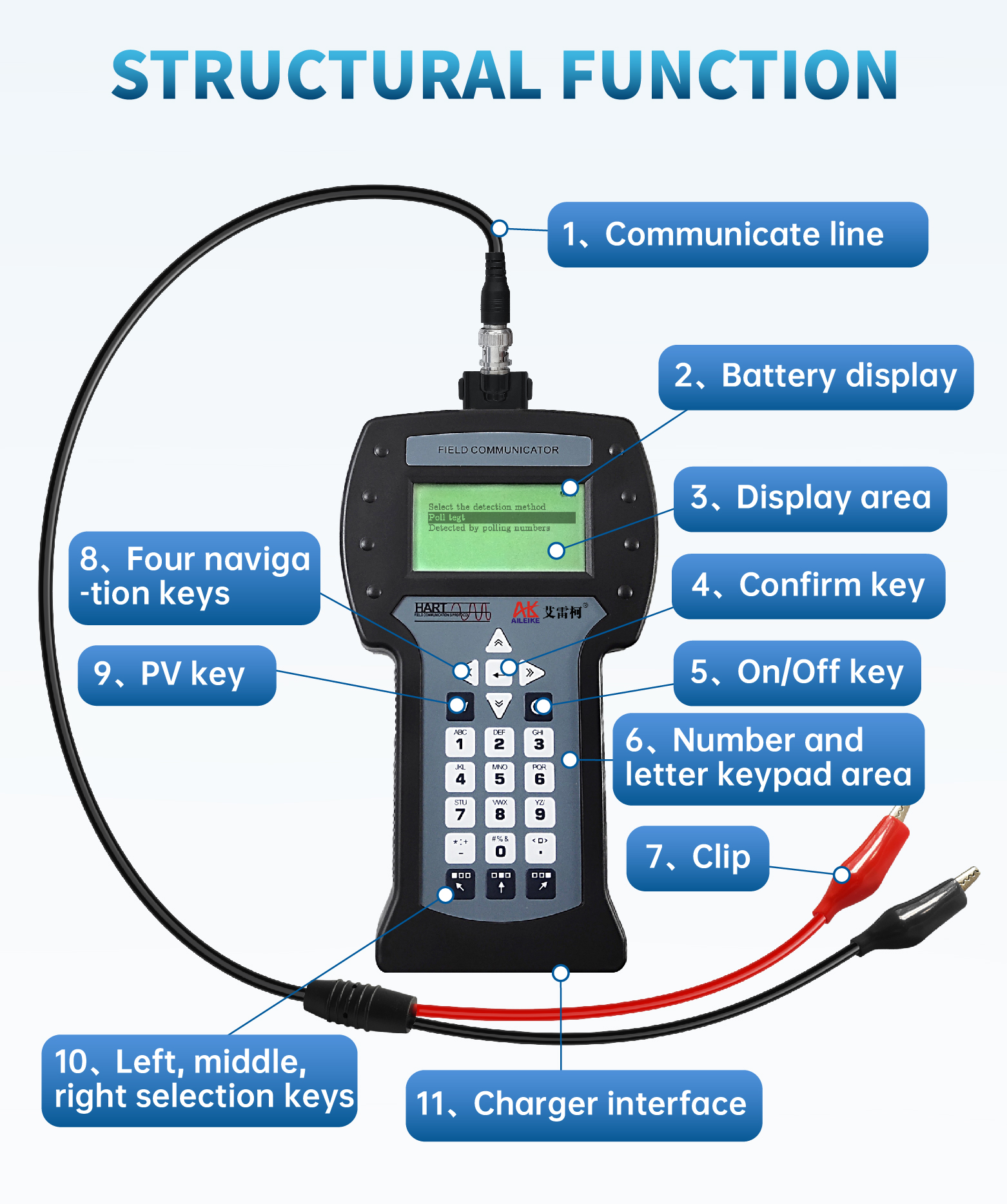

1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
|
Communicate cable |
Battery display |
Display area |
Confirm key |
On/off key |
Number and letter keypad area |
Clip |
Four navigation keys |
PV key |
Left, middle, right selection keys |
Charger interface |
|
Product name |
Hart handheld device |
|
Model |
HART475(English) |
|
Accuracy |
0.05%FS |
|
Digital communication |
HART protocol |
|
Built in lithium battery capacity |
24V · DC (can provide power to the calibrated product) |
|
Battery storage |
-20~50℃ |
|
Operation temperature |
-10~50℃ |
|
Relative humidity |
0~95%RH (No condensation) |
|
Net weight |
Approximately 0.48kg |
|
Product size |
230×130×45mm |
|
Weight after packaging |
Approximately 1.5kg (packaging material is cardboard box) |
|
Product packaging size |
340×250×150mm |
|
Product attachments |
Charger x 1 250 Ω resistor x 2 Test probe crocodile clip x 1 Portable bag x 1 |
|
Communicative products |
Communication import pressure, differential pressure, temperature transmitter Rosemount, Yokogawa EIAJ series ABB、 E+H、 Honeywell and other domestic communication brands, all equipped with HART protocol pressure、 differential pressure、and temperature transmitters。 electromagnetic flowmeter 、Vortex flowmeter、 Target flowmeter、Jinzhuan flowmeter 、Float level gauge、 Radar level gauge
|
FEATURES OF HAND OPERATORS
1. During online monitoring and communication, modulation signals will not interrupt 4-20mA DC signals;
2. Can be used together with instruments using the Hart communication protocol. The Hart communicator can be used together with instruments using the Hart communication protocol;
3. Easy to operate with a large display screen (4 lines, 18 characters per line);
4. Users can easily set and modify it at a glance;Information self diagnosis/protection function;Functional communication: Flow instruments, temperature instruments, pressure instruments, and liquid level instruments for communication with the Hart protocol;
5. Large screen display: The display interface is larger and clearer;
6. Capable of conducting production testing, diagnosis, and inspection on Hart smart devices. Capable of configuring, calibrating,diagnosing, maintaining, and monitoring Hart smart devices during on-site operation;
7. Obtain manufacturer information of on-site Hart instruments;
8. Understand the working status and fault information of the Hart instrument;
9. Read the output current and process variables of the instrument;
10. Obtain parameters and output values related to sensors;
11. The self check function formats password protection for low voltage alarm display.
