Description
|
1. |
2. |
3. |
4. |
5. |
6. |
7. |
8. |
9. |
10. |
|

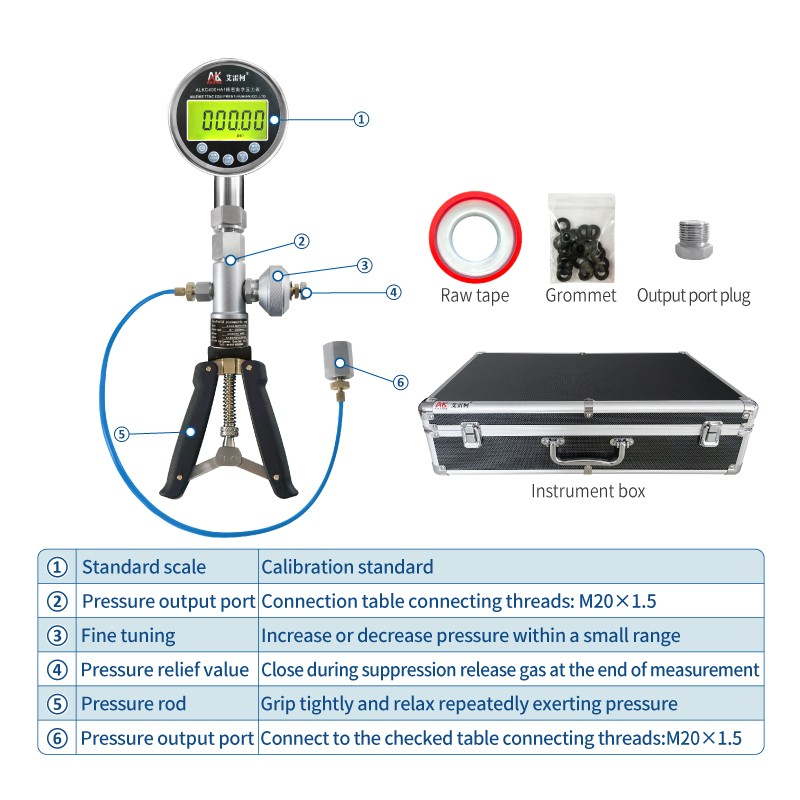

ON/OFF One click power on/off |
Unit switch key mpa、kpa、mmHg psi、bar、kgf/cm2 |
Peak value H1：Display peak value L0：Display valley value |
Backlight Backlight onafter pressingthe button |
Zero calibration Under no pressureconditionsOne click reset |
Pressure reliefValve Close during suppressionAt the end of themeasurementRelease gas |
Pressure outputPort Connect to thechecked table |
Fine tuning Increase within a smallrange or reduce pressure |
Pressure rod Grip tightly and relaxRepeatedly carry outGenerating pressure |
Pressure output port Connect to the checked table Connecting threads: M20X1.5 |
|
Product name |
Handheld air pressure pump (Including pressure gauge and connector) |
|
Model |
AILEIKE102SA﹢ALKC400HA1+ALJ01 |
|
Measuring range |
0~25bar |
|
Environmental conditions |
Laboratory or field |
|
Way of Pressure |
Hand movement |
|
Basic thread |
M20×1.5 |
|
Applicable medium |
Ambient air |
|
Display |
5-digit display |
|
Accuracy |
0.1%FS |
|
Overload capacity |
1.2 times the upper range limit |
|
Power supply |
Lithium battery ( ER14505 3.6V) |
|
Net weight |
Approximately 1.5Kg |
|

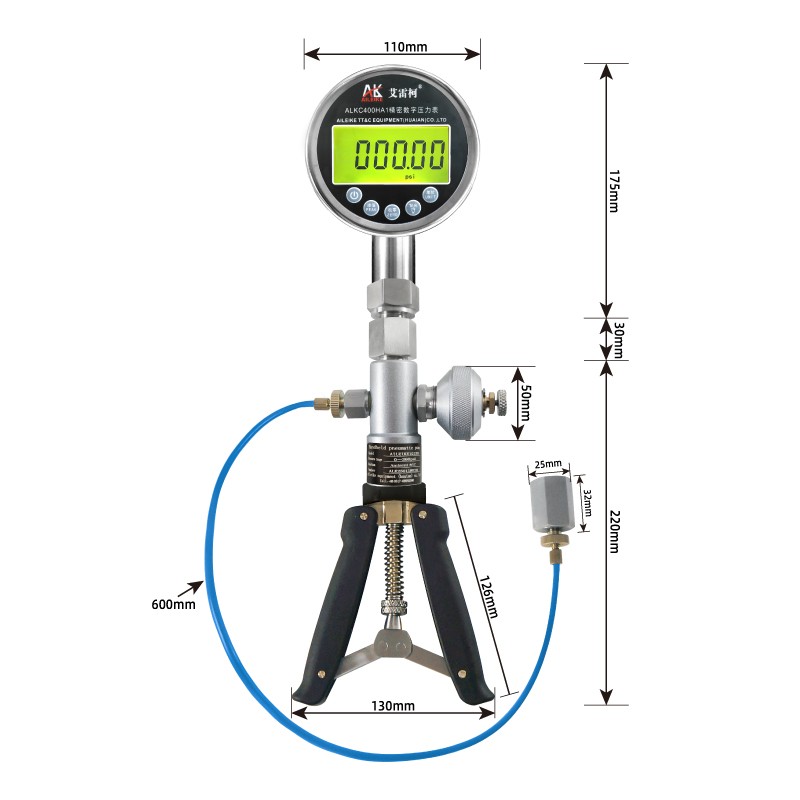

Size |
425×110×50mm |
|
Weight after product packaging |
Approximately 5.5Kg |
|
Product packaging size |
520×320×160mm |
|

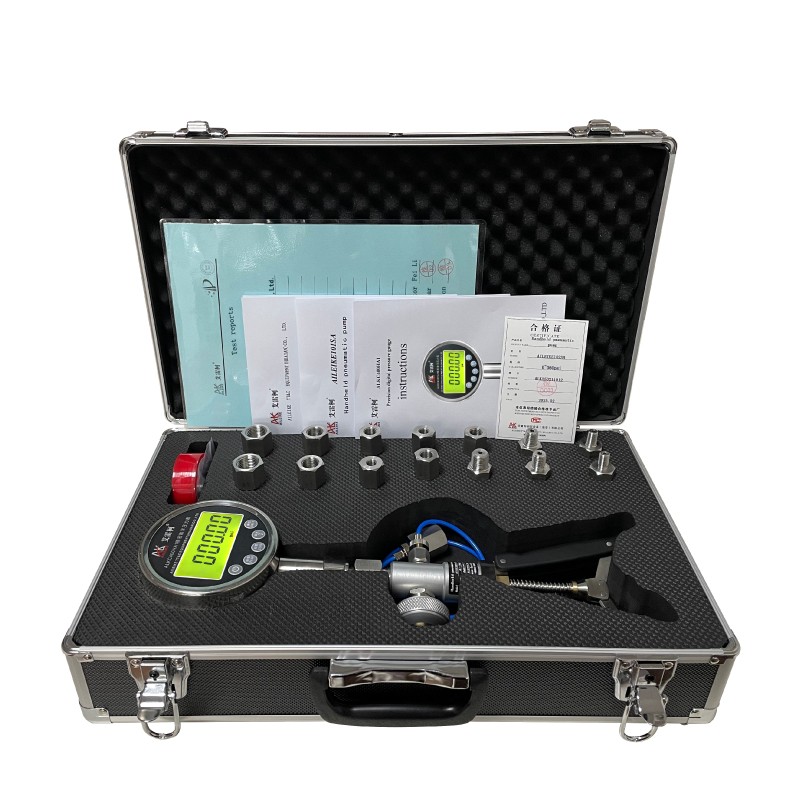

Product standard configuration |
Certificate of conformity x 1 copy Instructions x 1 copy Quality assurance card x 1 copy Output portplug x 1 piece Instrument box x 1 piece Gaskets x 40 piece PTFE sealing tape x 1 piece Pressure conversion joint x 14 piece |
|

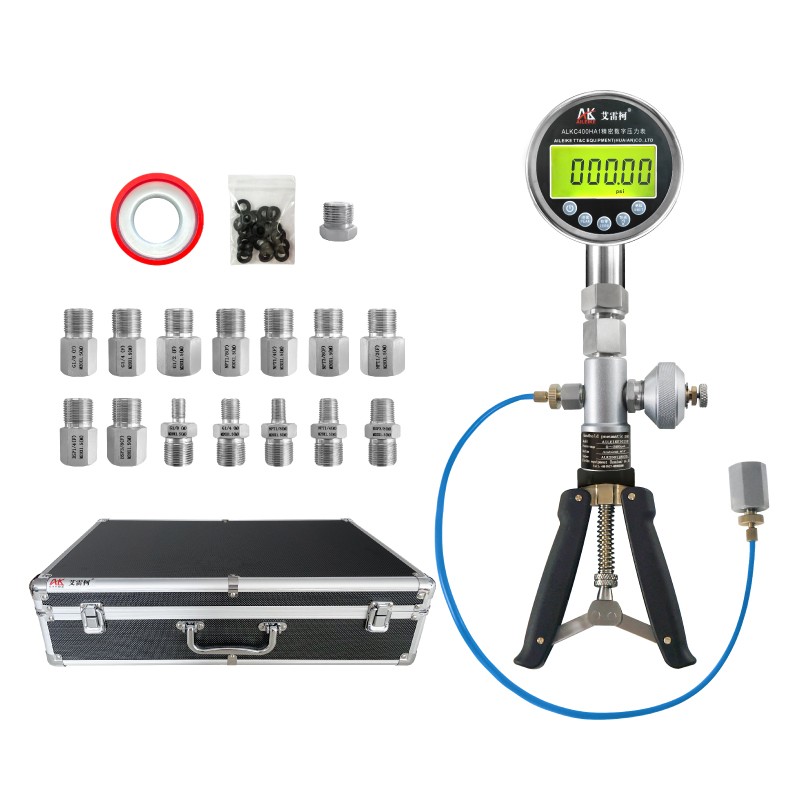

Equipped with fourteen conversion joints |
|
|
M20X1.5(M) G1/8(F) |
1 piece |
|
M20X1.5(M) G1/4(F) |
1 piece |
|
M20X1.5(M) G1/2(F) |
1 piece |
|
M20X1.5(M) NPT1/8(F) |
1 piece |
|
M20X1.5(M) NPT3/8(F) |
1 piece |
|
M20X1.5(M) NPT1/4(F) |
1 piece |
|
M20X1.5(M) NPT1/2(F) |
1 piece |
|
M20X1.5(M) BSP1/4(F) |
1 piece |
|
M20X1.5(M) BSP3/8(F) |
1 piece |
|
M20X1.5(M) G1/8(M) |
1 piece |
|
M20X1.5(M) G1/4(M) |
1 piece |
|
M20X1.5(M) NPT1/8(M) |
1 piece |
|
M20X1.5(M) NPT1/4(M) |
1 piece |
|
M20X1.5(M) BSP3/8(M) |
1 piece |
