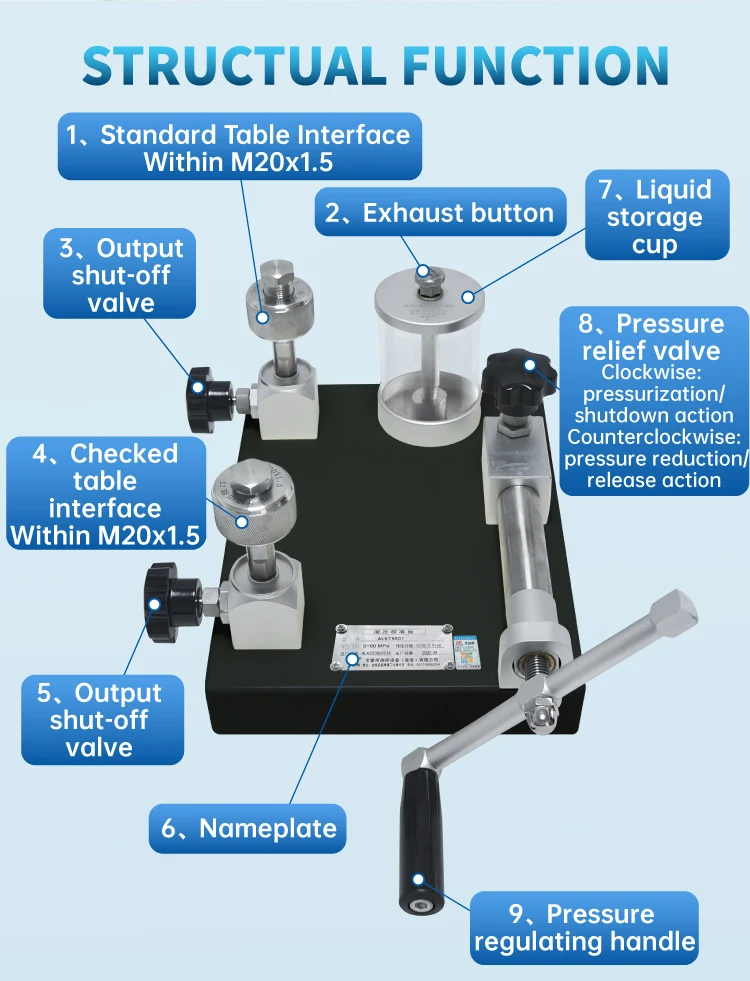

Description
|
1. |
2. |
3. |
4. |
5. |
6. |
7. |
8. |
9. |
|
Standard Table Interface (Within M20x1.5) express interface |
Exhaust button |
Output shut-off valve |
Checkedtable interface (Within M20x1.5) express interface |
Output shut-off valve |
Name plate |
Liquid storage cup |
Pressurerelief valve Clockwise: pressurization/ shutdown action Counterclockwise: pressure reduction/ release action |
Pressure regulating handle |
|

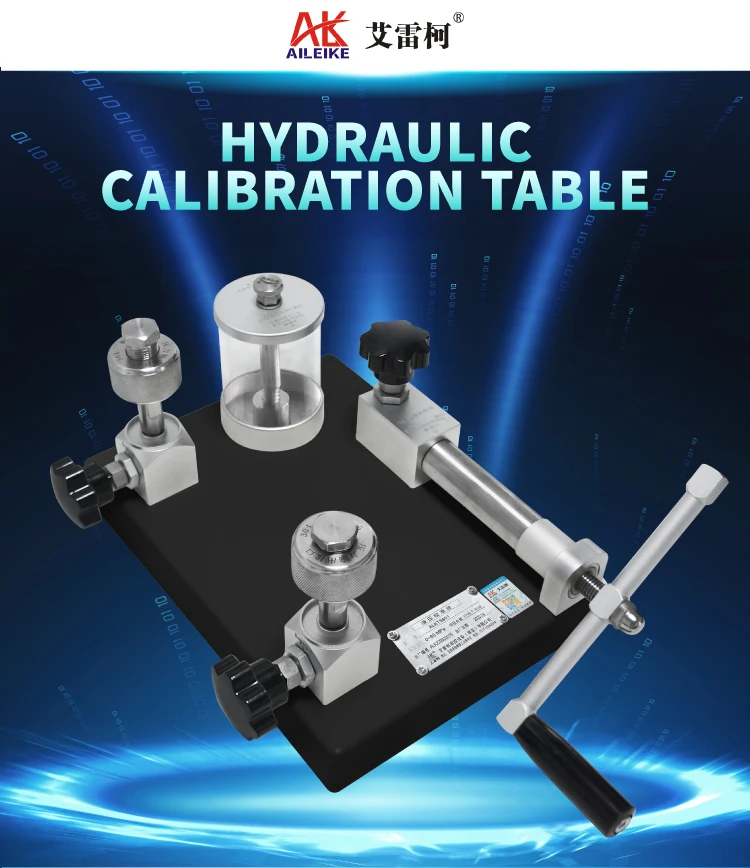

Product name |
Hydraulic calibration table |
|
Model |
ALKT9801 |
|
Measuring range |
0~600bar/0~8700psi/0~60MPa (Pressure selectable) |
|
Regulating fineness |
1KPa |
|
Output port |
Two |
|
Pressure connection |
The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation. |
|
Ambient temperature |
0~60℃ |
|
Measurement medium |
Purified water or Transformer oil 25# |
|
Way of Pressure |
Hand movement |
|
Weight |
Approximately 5.5kg |
|
Size |
405×260×180mm |
|

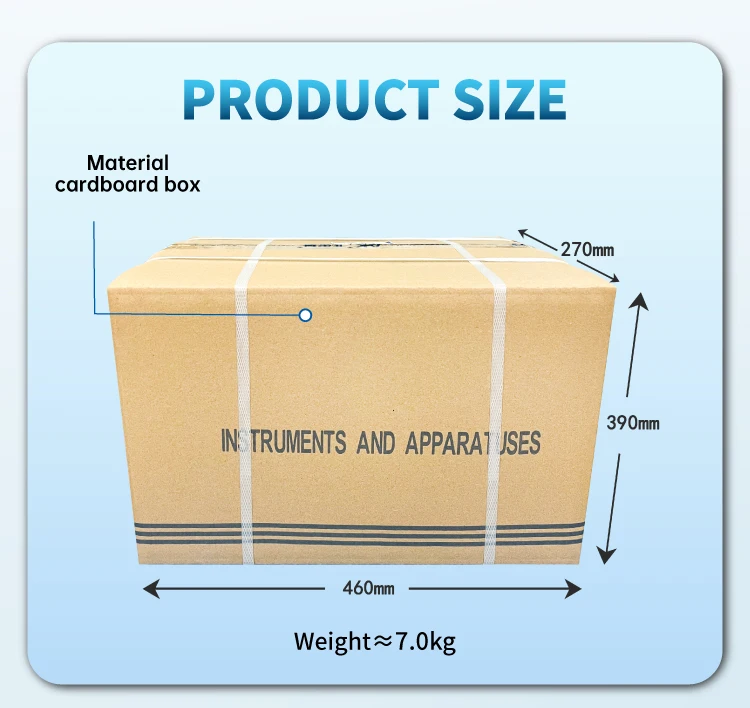

Weight after packaging |
Approximately 7.0kg (packaging material is cardboard box) |
|
Product packaging size |
460×390×270mm |
|
Product standard configuration |
Certificate of conformity × 1 Instruction manual × 1 Quality assurance card × 1 Sealing ring × 2 plugs × 2 |
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours.
Q:How soon can you arrange your production?
A:once getting your product confirmation and receiving the prepayment, the
production will be started immediately.
Q: Whats delivery time?
A:lt usually takes about 3-5 working days for small order and 10-15 days for big
order.
Q: Whats your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes,OEM and oDM are both available, we have the professional R&D dept which
can provide professional solutions for you.
