Description
|
01 |
02 |
|
Reasonable structure be easy to carry about Available as field measurements Use of pressure building device |
Boost/Depressurize/Reset Three pressure repair methods The pressure value of the detection point can be stabilized within the required range of the detection point |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Oil cup |
Output 1 Connecting threads： M20X1.5 |
Output 2 Connecting threads： M20X1.5 |
Output 3 Connecting threads： M20X1.5 |
Boost button |
Pressure release button |
Reset button |
|
Product name |
Electrodynamic pressure calibratione |
|
Model |
ALKD100 |
|
Measuring range |
0~1000bar/0~14500psi/0~100MPa(Pressure selectable) |
|
Humidity |
0~80%RH |
|
Output port |
Three |
|
Pressure connection |
The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation. |
|
Ambient temperature |
15~35 ℃ |
|
Drift |
<0.01% F.S/year |
|
Power consumption |
<500VA |
|
Pressure fluctuation range |
0.05% F·S/5S |
|
Power supply |
AC22010% ± 50Hz |
|
Net Weight |
Approximately 40.8kg |
|
Product size |
800×440×520mm |
|

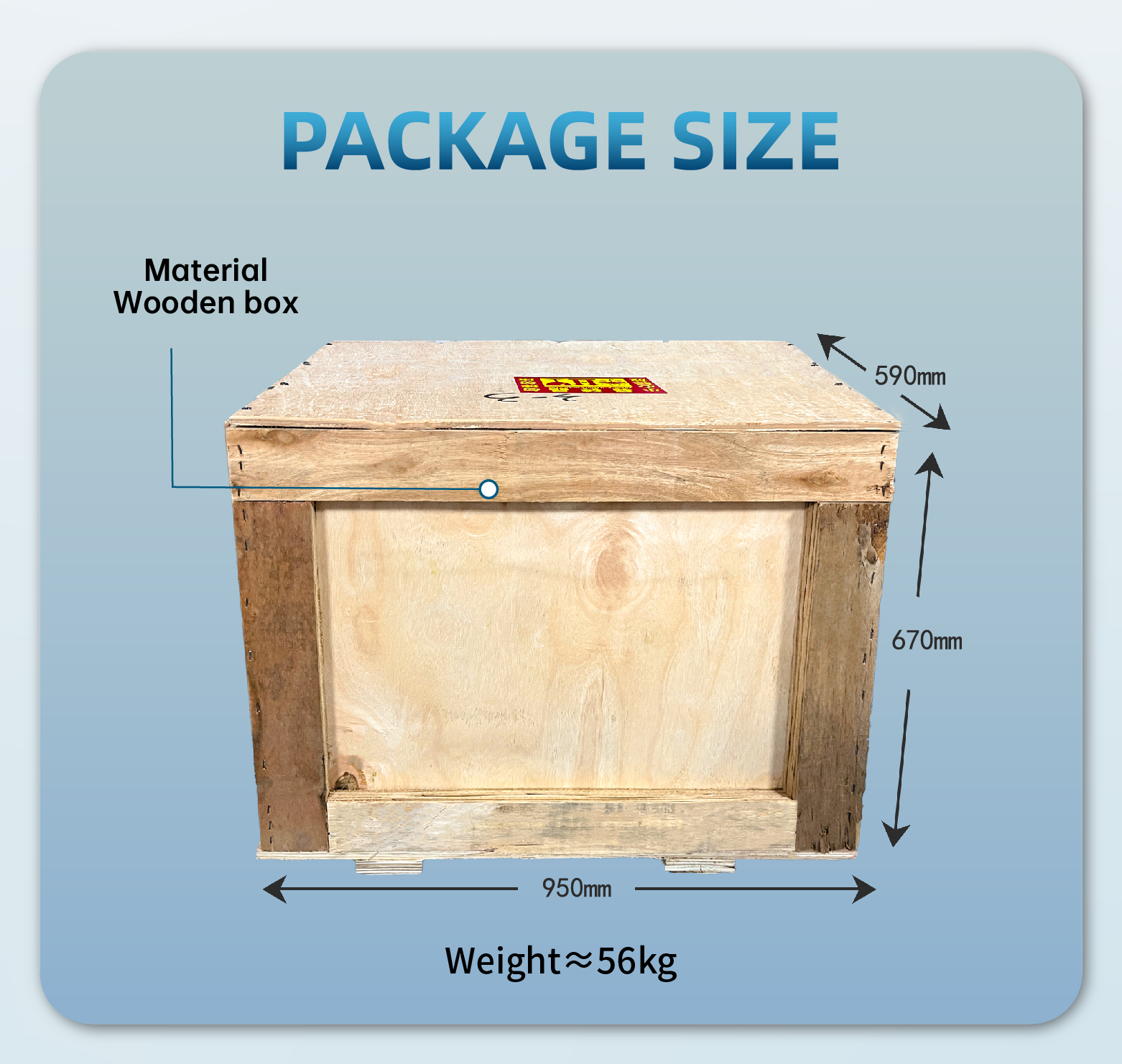

Packaged weight |
Approximately 56kg |
|
Product packaging size |
950×590×670mm |
