Description

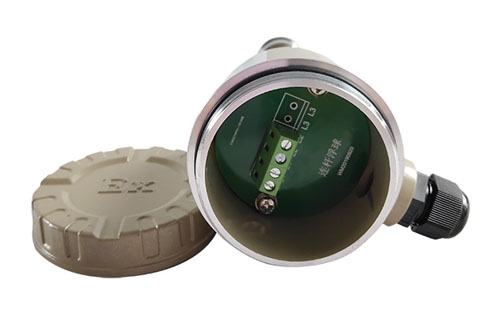

The floating ball liquid level controller alkuqk is a kind of safe, reliable, easy to use, simple structure liquid level controller. It is smaller than the general mechanical switch in volume, faster in speed, longer in working life. Compared with the electronic switch, it has the characteristics of strong load impact resistance. It is widely used in shipbuilding, papermaking, printing, generator equipment, petrochemical, food industry, water treatment, electrical, fuel industry, etc Hydraulic machinery and other aspects have been widely used.
The working principle of
In a sealed stainless steel tube (non magnetic conductivity) through one or more of the ring magnet floating ball, in the
installation of one or more of the reed tube to tube, liquid level fluctuation of lifting will drive the floating ball move
together at the same time, when the float magnet to tube reed at the same level of the position of the sealing tube suction reed
tube or disconnected, and the output signal switch.
Technical parameters
Contact capacity: 10W, 30W, 50W
Switching current: 0.5A
Switching voltage: 220VAC/24VDC
Insulation impedance: >;100MQ
Working life: 1 million times
Working pressure: 1.0 ~ 3.0MPa
Operating temperature: SUS: -20 ~ 200℃ PP: -10 ~ 80℃
Medium specific gravity: >0.55
Product material: SUS304/SUS316/PP/PE/PTFE
