Description
|
Product Information |
|
|
Product name |
Surface temperature calibration furnace |
|
Model |
ALKW851E |
|
Temperature range |
(Room temperature+5)~400 ℃/30~400 ℃/50~400 ℃ |
|
Control mode |
LCD Touch Screen |
|
Display resolution |
0.01℃ |
|
Measurement surface |
φ90mm |
|
Accuracy |
± 1.0@200 ℃, ± 1.5@400 ℃ |
|
Stability |
± 0.3@100 ℃, ± 0.4@200 ℃ ± 0.6@300 ℃, ± 1.0@400 ℃ |
|
Uniformity |
±0.4℃@100℃, ±0.6℃@200℃ ±1.0℃@300℃, ±1.5℃@400℃ |
|
Display method |
Switching between Chinese and English |
|
Usage environment |
There is no corrosive gas, flammable orexplosive gas in the surrounding area |
|
External dimensions |
250x330x220mm |
|
Weight |
6.1kg |
|
Produce packaging size |
410×410×300mm |
|
Produce weight |
Approximately11.1kg (packaging material isWooden box) |
|
Power supply |
AC220V±10℃ 50HZ/60HZ |
|
Power |
400W |
|
Standard accessories |
Instruction manual x 1 Certificate of conformity x 1 Quality assurance card x 1 |
|

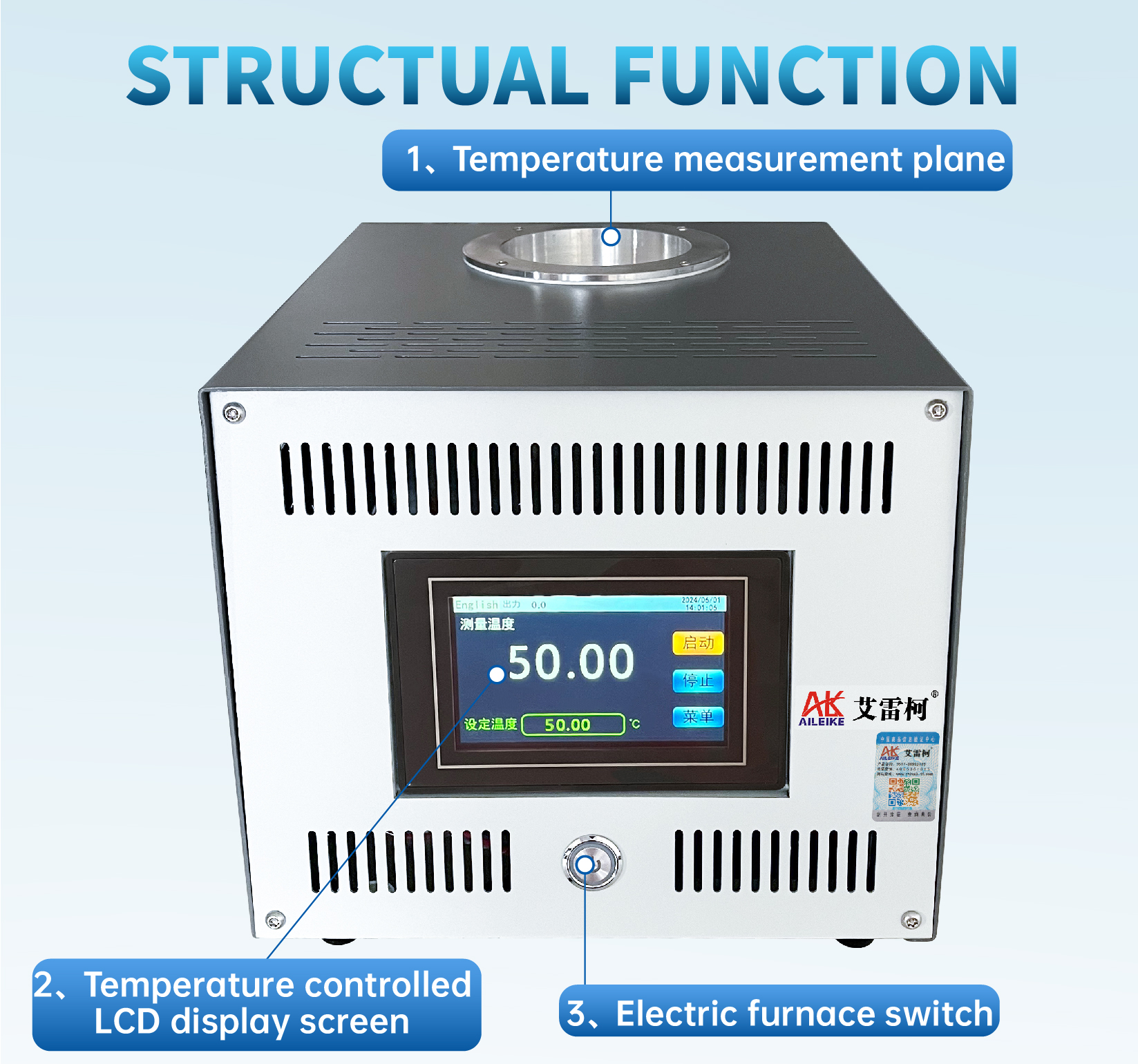

1 |
2 |
3 |
|
Temperature measurement plane |
Temperature controlled LCD display screen |
Electric furnace switch |
Fast heating and cooling speed
The surface temperature calibration furnace reaches the predetermined temperature
point and the temperature stabilizes faster than the constant temperature bath,
This can greatly save the time of calibration personnel and
improve the speed of temperature calibration.
|
Surface temperature calibration furnace heating time |
||
|
ALKW851E (room temperature+5~400℃) |
ALKW851E (30~400℃) |
ALKW851E (50~400℃) |
|
26~100 ℃ / 16 minutes |
30~100℃ / 15 minutes |
50~100℃ / 10 minutes |
|
100~200℃ / 20 minutes |
100~200℃ / 20 minutes |
100~200℃ / 20 minutes |
|
200~300℃ / 21 minutes |
200~300℃ / 21 minutes |
200~300℃ / 21 minutes |
|
300~400℃ / 16 minutes |
300~400℃ / 16 minutes |
300~400℃ / 16 minutes |
|
Surface temperature calibration furnace cooling time |
|
|
Total duration |
Time division |
|
400~50℃ / 111 minutes |
400~300℃ / 12 minutes |
|
400~30℃ / 217 minutes |
300~200℃ / 15 minutes |
|
|
200~100℃ / 33 minutes |
|
|
|
