Description
Product Features
Low fluid resistance, ball valve is one of the valve types with low fluid resistance.
The actuator adopts high-performance cylinder piston actuator, with a simple structure and large output torque. Ball valves are suitable for controlling high-pressure or high-pressure differential fluids containing fibers and particles.
The valve stem seal is reliable. As the valve stem only rotates without lifting, the packing seal of the valve stem is not easily damaged, and the sealing ability increases with the pressure of the medium.
Product Display
01
02
03
Stainless steel flange
Pneumatic actuator
Precision cast thickened valve body
Stainless steel flange, earthquake resistant stable, with high mechanical strength and with high ductility and strength,
High temperature resistance, not easy to rust
Gear type dual piston,
High output torque, low friction coefficient, flexible rotation, and small volume
The valve body is made of stainless steel material,corrosion and rust
resistance, long service life

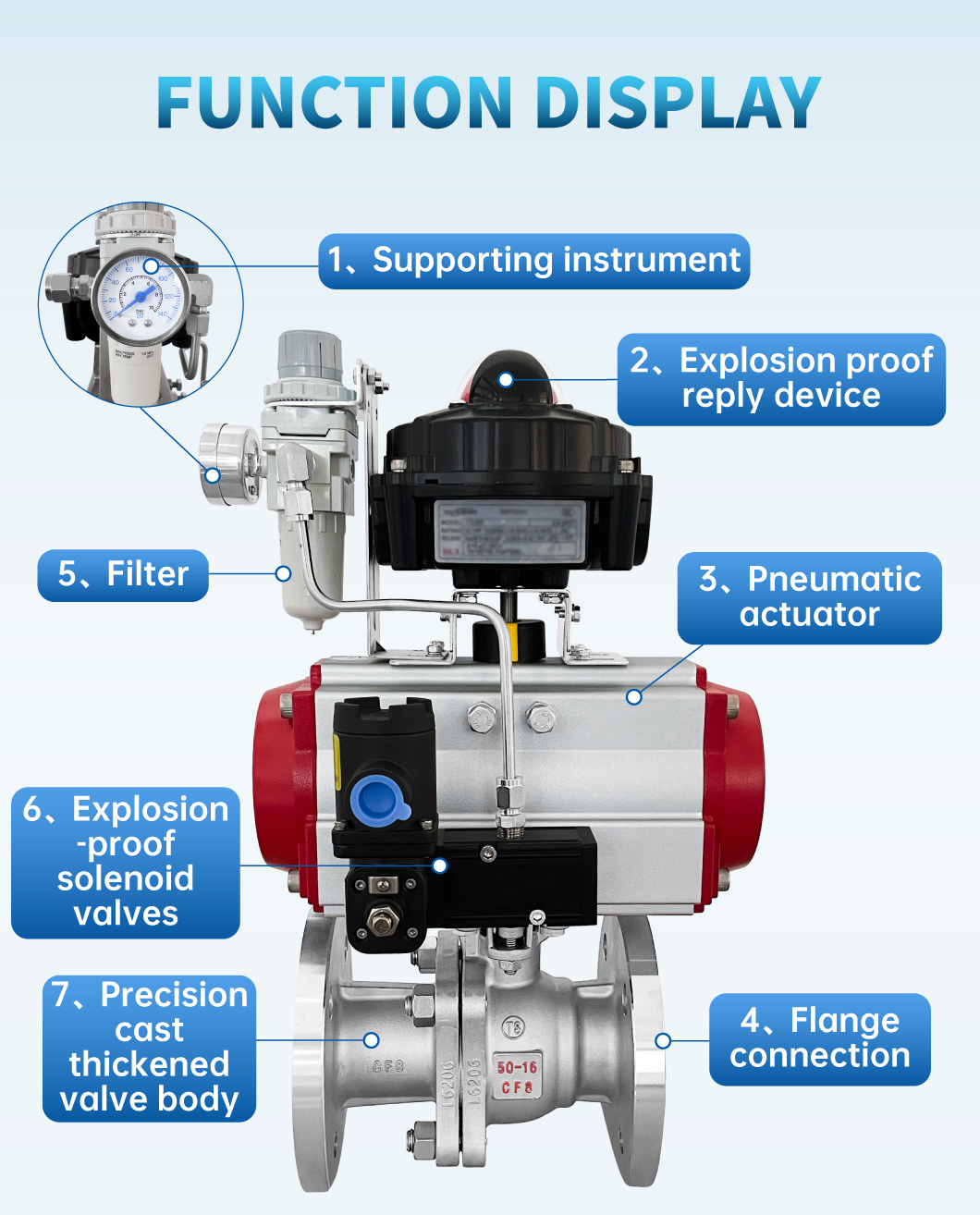

Function Display
01
02
03
04
05
06
07
Supporting instrument
Explosion proof
reply device
Pneumatic
actuator
Flange
connection
Filter
Explosion-proof
Solenoid valves
Precision cast
thickened
valve body

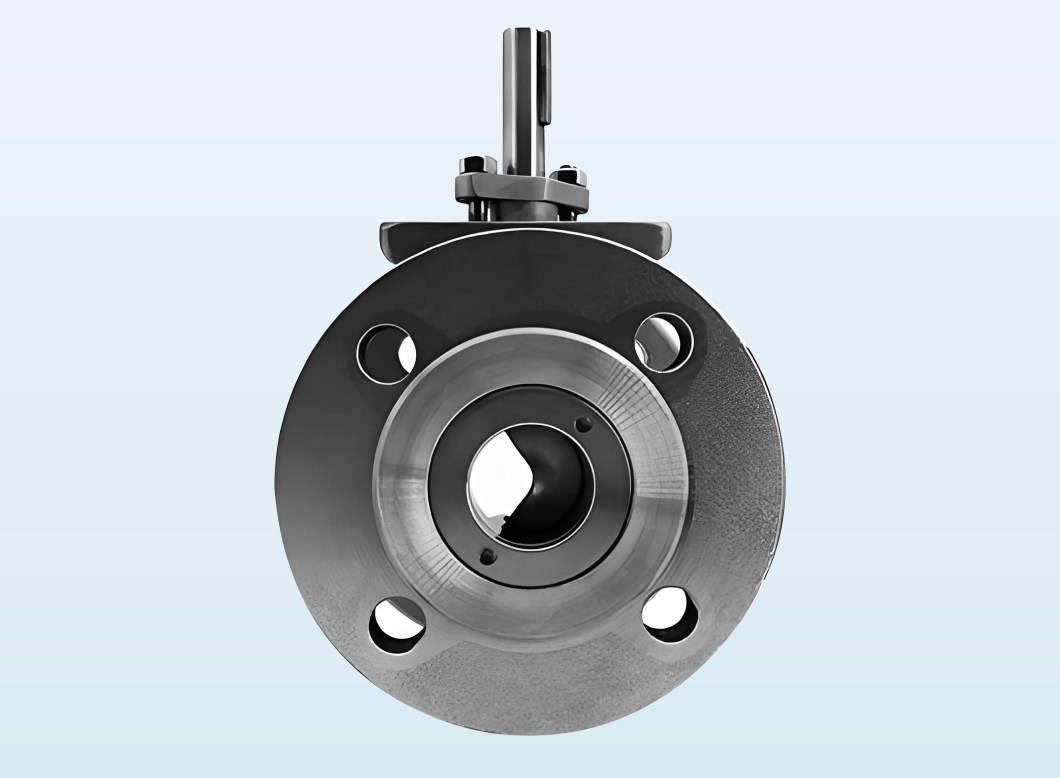

V-ring ball valve core
The edge of the V-shaped ball valve core is V-shaped, and there is a V-shaped opening on the ball. With the rotation of the ball, the flow rate can be adjusted using the change of the middle opening area, and it can cut off impurities in the fluid and close the control suitable for pulp, mortar, and viscous fluids.
|
Product Information |
|
|
Customized processing |
Yes |
|
Product name |
Pneumatic V-type ball valve |
|
Nominal pressure |
1.6MPa~6.4MPa |
|
Nominal diameter |
DN18~DN200 |
|
Drive mode |
Pneumatic |
|
Body material |
Cast steel/stainless steel |
|
Connection method |
Flange connection |
|
Temperature |
-40~80℃ |
|
Core corner |
0 °± 4 ° to 90 °± 4 ° (adjustable) |
|
Operating Pressure |
Double acting 0.2~1, single acting 0.3~1 |
|
Allowable leakage level |
Soft seal VI Hard seal IV |
