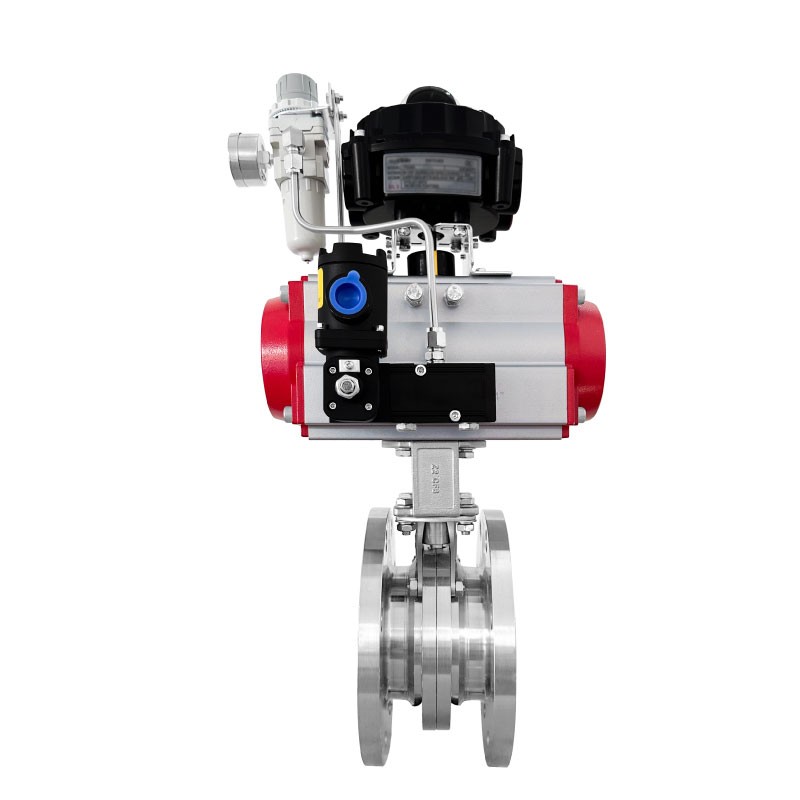

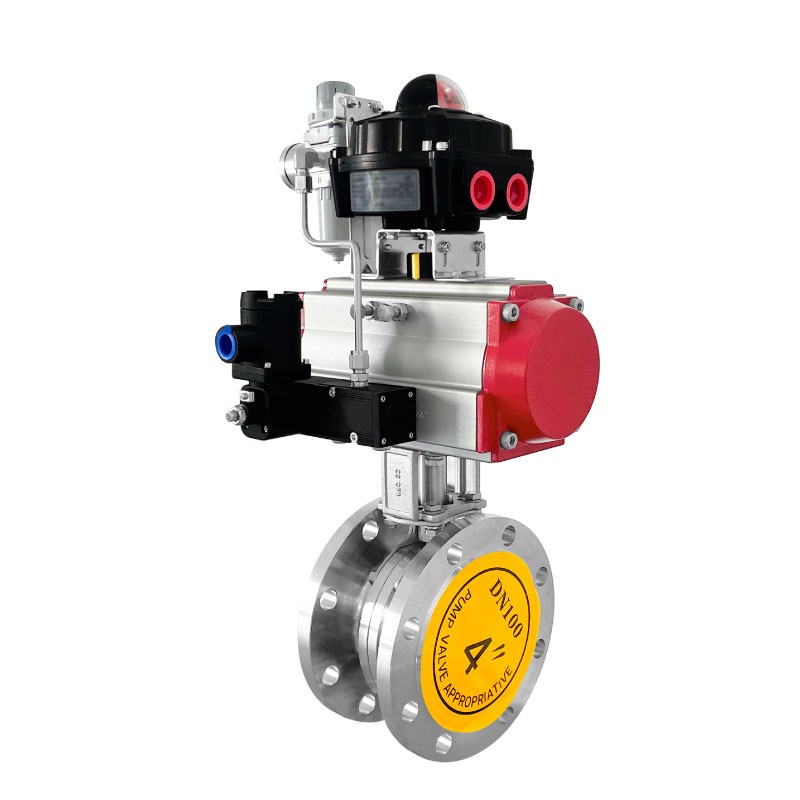

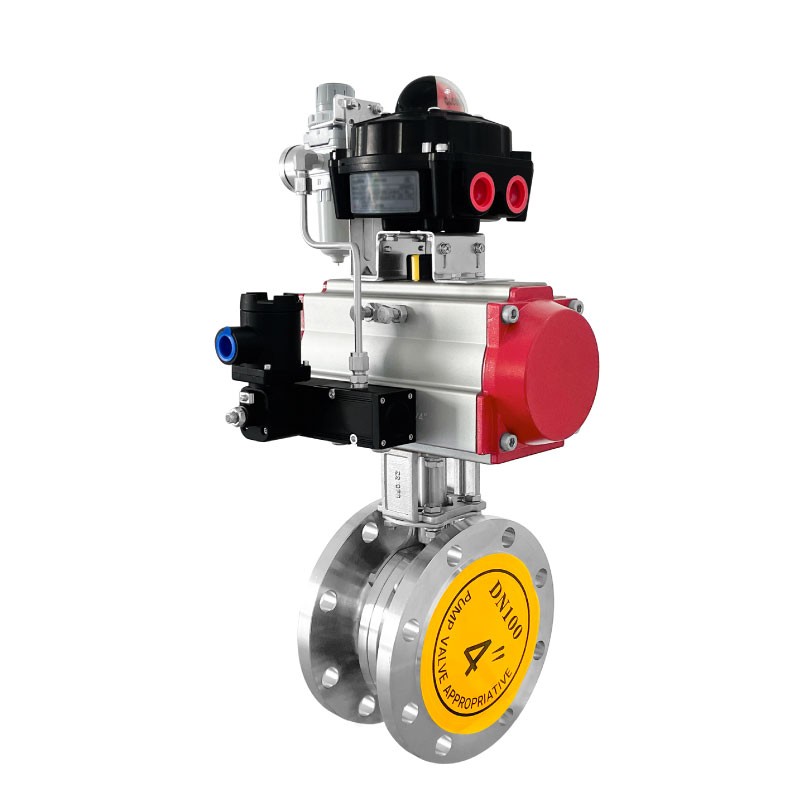

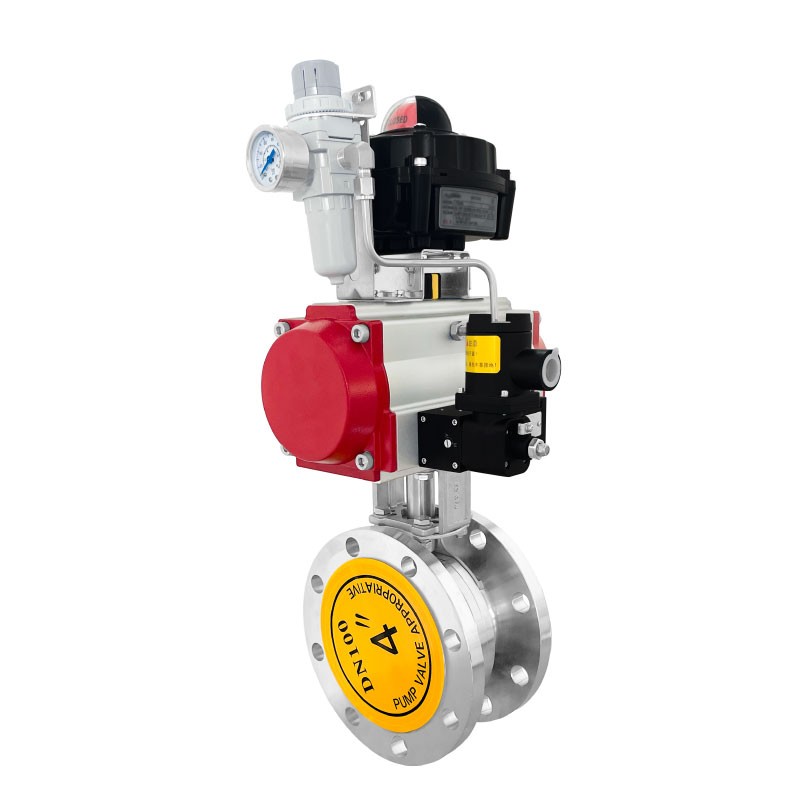

  • Sanitary pneumatic butterfly valve
  • Sanitary pneumatic butterfly valve
  • Sanitary pneumatic butterfly valve
  • Sanitary pneumatic butterfly valve
Sanitary pneumatic butterfly valve Sanitary pneumatic butterfly valve Sanitary pneumatic butterfly valve Sanitary pneumatic butterfly valve

Sanitary pneumatic butterfly valve

  • Product Item: ALK
  • “Pneumatic butterfly valve”“Quick open butterfly valve”“Stainless steel gas filled horizontal clamp”
    Facebook
    Twitter
    Youtube
    TIKTOK
    TELEGRAM
    Inquiry Send Email

    Description


    Product Features

    1、Sanitary grade pneumatic butterfly valves are available in double acting and single acting (spring reset), with gear rack transmission.

    2、Butterfly valve actuator gear type dual piston, with large output torque and small volume; The cylinder is made of aluminum material, which is lightweight and aesthetically pleasing.

    3、Manual operation can be installed at the top and bottom. The rack and pinion connection can adjust the opening angle and rated flow rate.

    4、Sanitary grade butterfly valve actuators can be equipped with live signal feedback indicators and accessories to achieve automated operation. The adjustable screws at both ends provide a ± 4 ° adjustable range for standard products between 0 ° and 90 °. Ensure synchronization accuracy with the valve.


    Product Display

    01

    02

    03

    Flange connection

    Pneumatic actuator

    Precision cast thickened valve body

    Stainless steel flange, earthquake resistant and stable, with high

    mechanical strength and ductility,

    High strength, high

    temperature resistance, not easy to rust

    Precision investment

    casting,

    Three sprays and three baked, sun resistant and corrosion-resistant,

    resistance without

    deformation

    The valve body is made of stainless steel material,corrosion and rust

    resistance, long service life

    Function Display

    01

    02

    03

    04

    05

    06

    07

    Supporting instrument

    Explosion proof

    reply device

    Pneumatic

    actuator

    Flange

    connection

    Filter

    Explosion-proof

    Solenoid valves

    Precision cast

    thickened

    valve body

    Product Information

    Customized processing

    Yes

    Product name

    Sanitary pneumatic butterfly valve

    Nominal pressure

    1.6MPa

    Nominal diameter

    DN15~DN300

    Body material

    Cast steel/stainless steel

    Valve plate material

    Cast steel/stainless steel

    Drive mode

    Pneumatic

    Body material

    Cast steel/stainless steel

    Connection method

    Flange connection

    Temperature

    -20℃~150℃

    Applicable Medium

    Gas on, gas off
