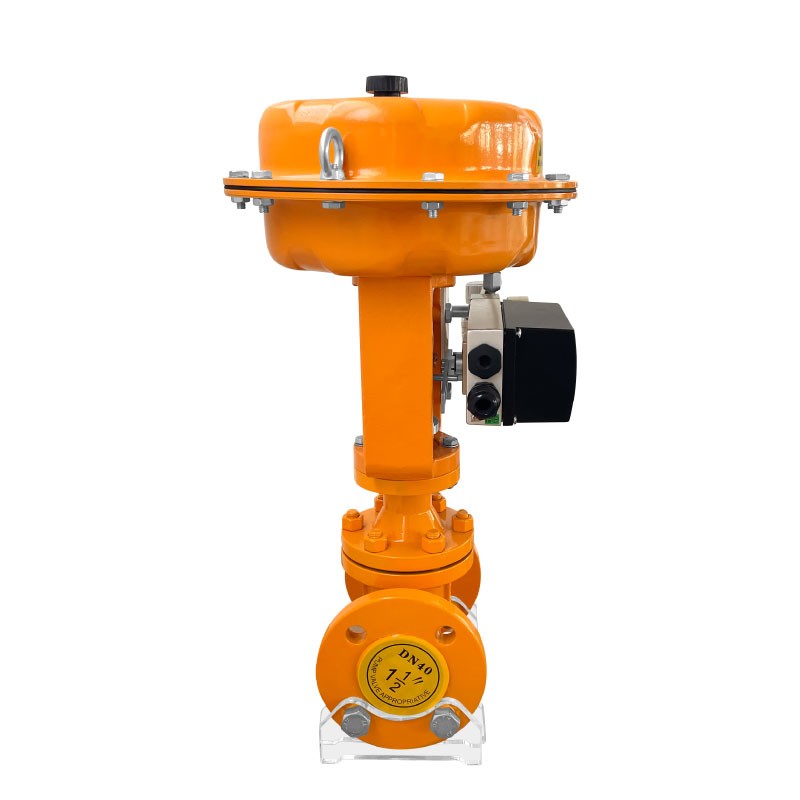

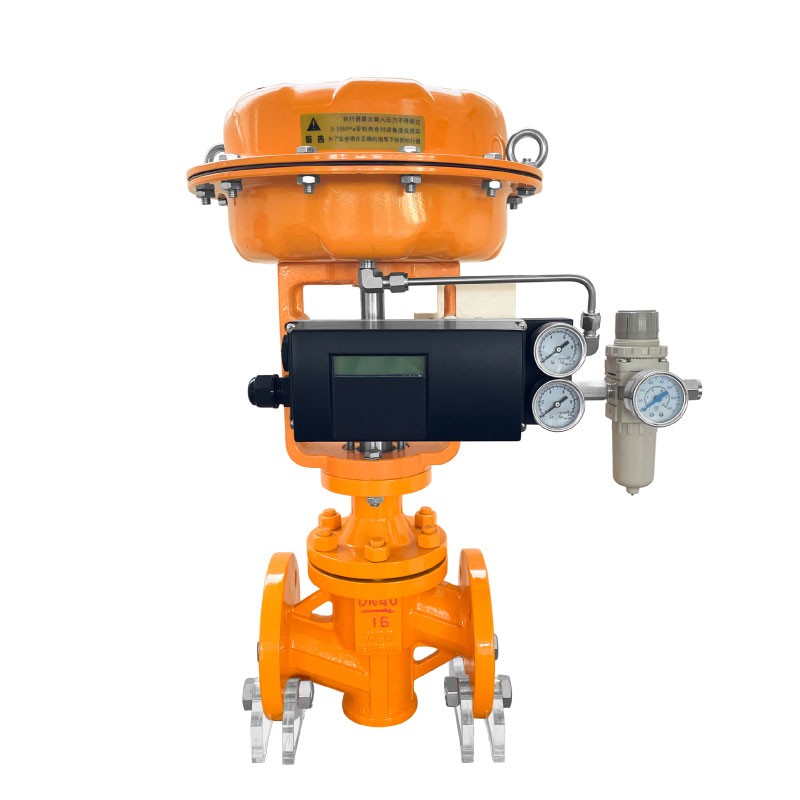

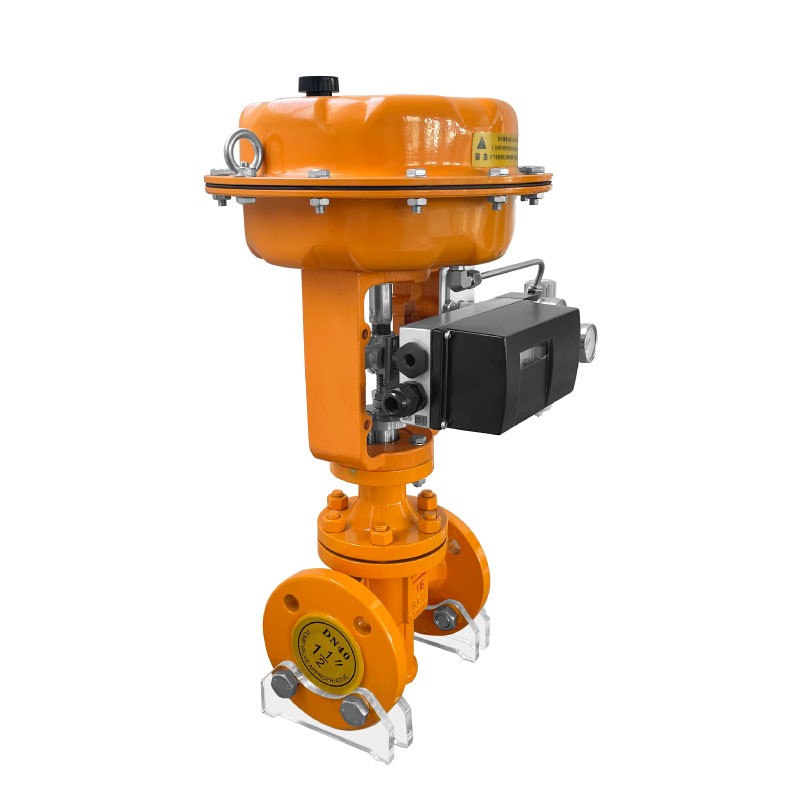

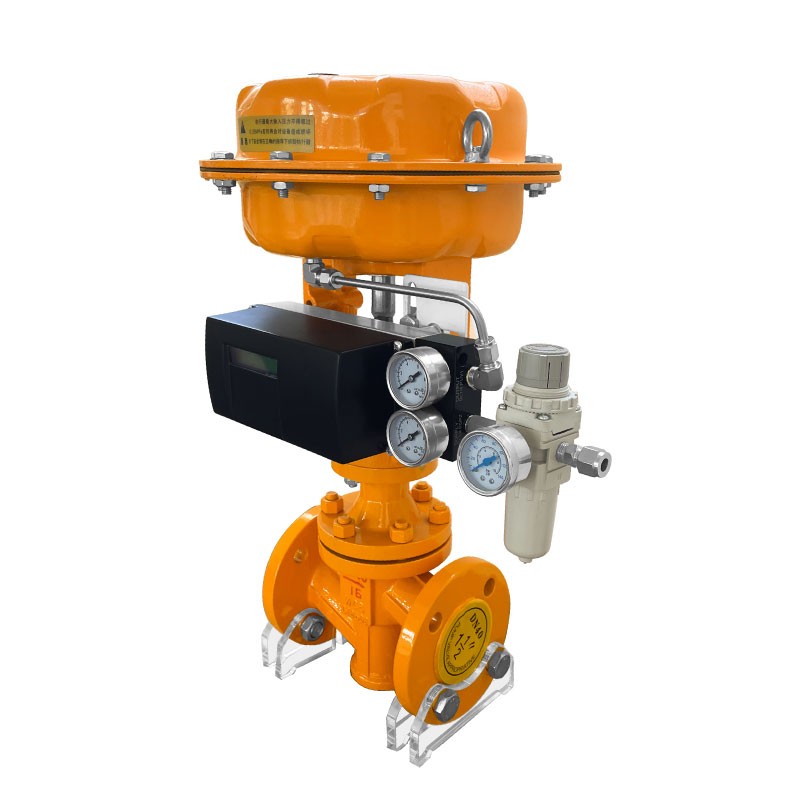

Pneumatic sleeve regulating valve

Product Item：ALKZJHM

Product Features

1、Adopting a balanced valve core, the unbalanced force is small, allowing for a large pressure difference and stable operation.

2、The large guiding surface of the valve core can improve the oscillation caused by eddy currents and impacts, and reduce damage.

3、Reduce noise by about 10dB compared to ordinary double seat regulating valves.

4、The structure is simple and easy to assemble, disassemble, and maintain.

Product Display
01	02	03
Flange connection	Pneumatic thin film actuator	Precision cast thickened valve body
Made of high-quality materials, it has high mechanical strength and ductility, High strength, high temperature resistance, not easy to rust	Natural craftsmanship, precision investment casting, Anti sun and anticorrosion, resistant to deformation	The valve body is made of stainless steel material, Corrosion and rust resistance, long service life

Function Display

Pneumatic thin

film actuator

Filter

Stainless steel

valve body

Positioner

Stainless

steel fasteners

Product Information
Customized processing	Yes
Product name	Pneumatic sleeve regulating valve
Nominal diameter	DN40~DN200
nominal pressure	1.6~6.4MPa
Body material	Cast steel/stainless steel
Drive mode	Pneumatic
Temperature	-30℃~70℃
Connection method	Flange connection
Action form	Gas on, gas off
Traffic characteristics	Equal percentage and linearity
Cover form	Bolt compression type
Applicable Medium	Air, water, oil, etc
Packing material	Polytetrafluoroethylene packing, Asbestos woven packing
