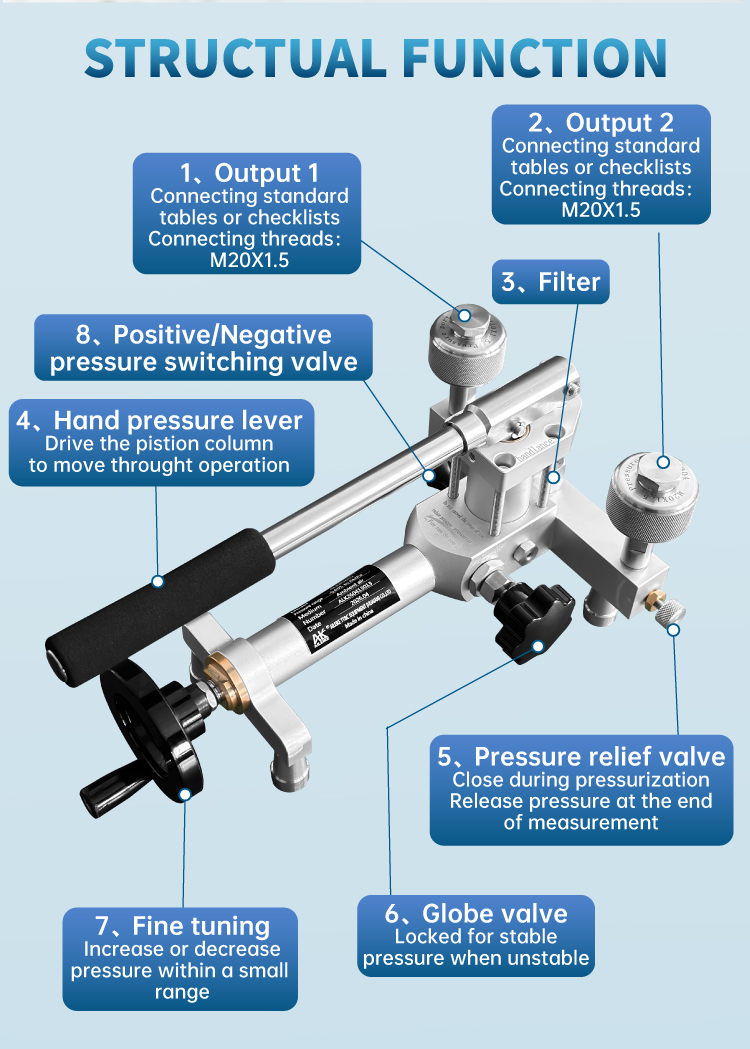

Description
|
① |
② |
③ |
④ |
⑤ |
⑥ |
⑦ |
|
Output 1 Connecting standard tables or checklists Connecting threads： M20X1.5 |
Output 2 Connecting standard tables or checklists Connecting threads： M20X1.5 |
Filter |
Hand pressure lever Drive the pistion column to move throught operation |
Pressure relief valve Close during pressurization Release pressure at the end of measurement |
Globe valve Locked for stable pressure when unstable |
Fine tuning Increase or decrease pressure within a small range |
|
Product name |

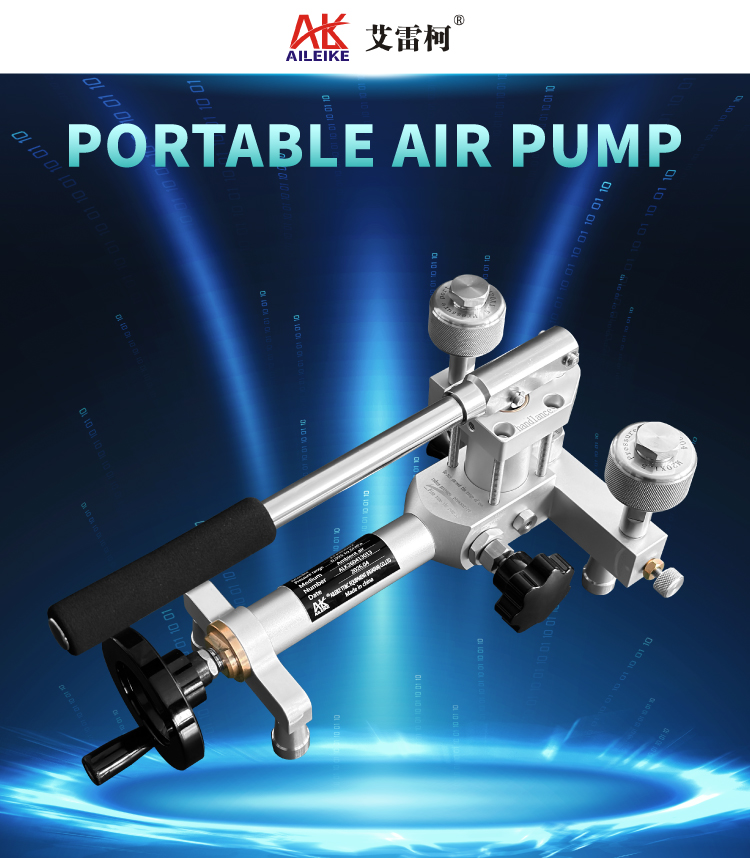

Portable air pump |
|
Model |
ALKB9602 |
|
Measuring range |
-0.95~60bar |
|
Regulating fineness |
10 pa |
|
Output port |
Two |
|
Pressure connection |
The default thread size for the pressure output port is M20 × 1.5. If other thread sizes are required, such as Bsp 1/2, G1/4, NPT1/4, G1/2, NPT1/2, etc., other special thread sizes can also be customized |
|
Ambient temperature |
0~50℃ |
|
Measurement medium |
Clean air |
|
Way of Pressure |
Hand movement |
|
Weight |
Approximately 3.2kg |
|

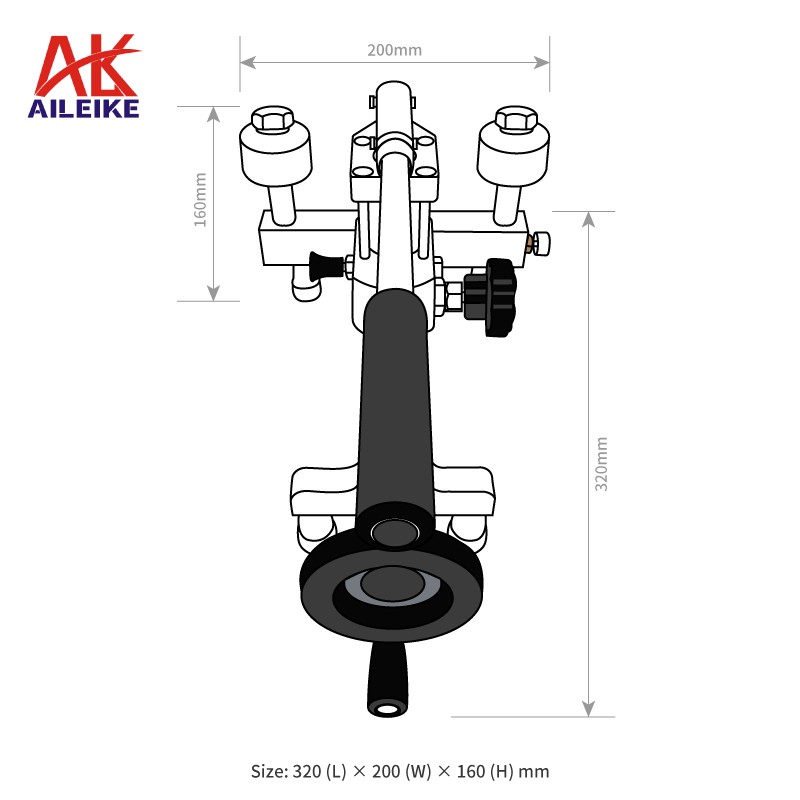

Size |
320×200×160mm |
|
Weight after packaging |
Approximately 4.2kg(packaging material is cardboard box) |
|
Product packaging size |
370×320×310mm |
|
Product standardconfiguration |
Certificate of conformity x 1 Instruction manual x 1 Quality assurance card x 1 Sealing ring x 2 Output port plug x 2 |
