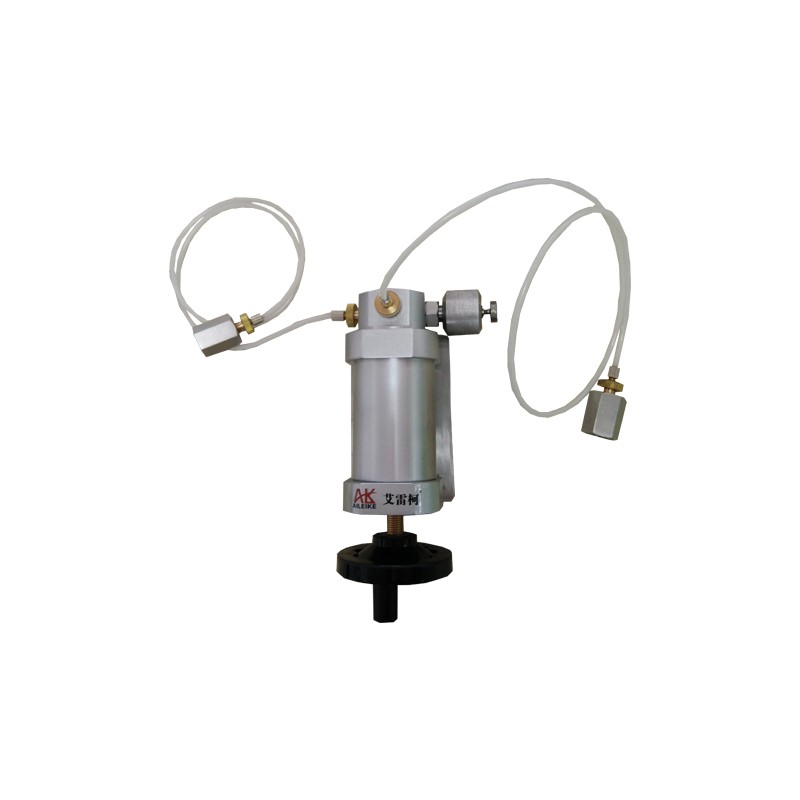

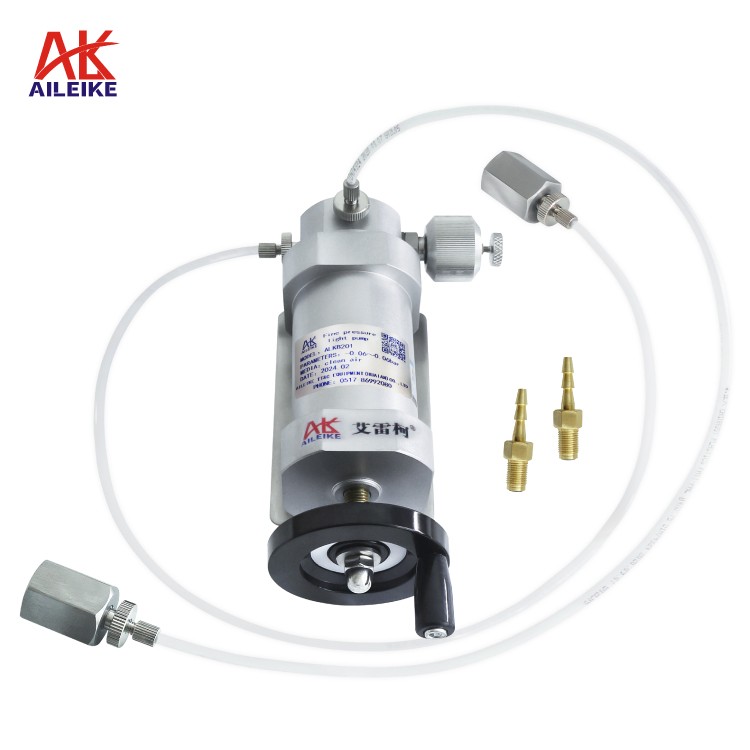

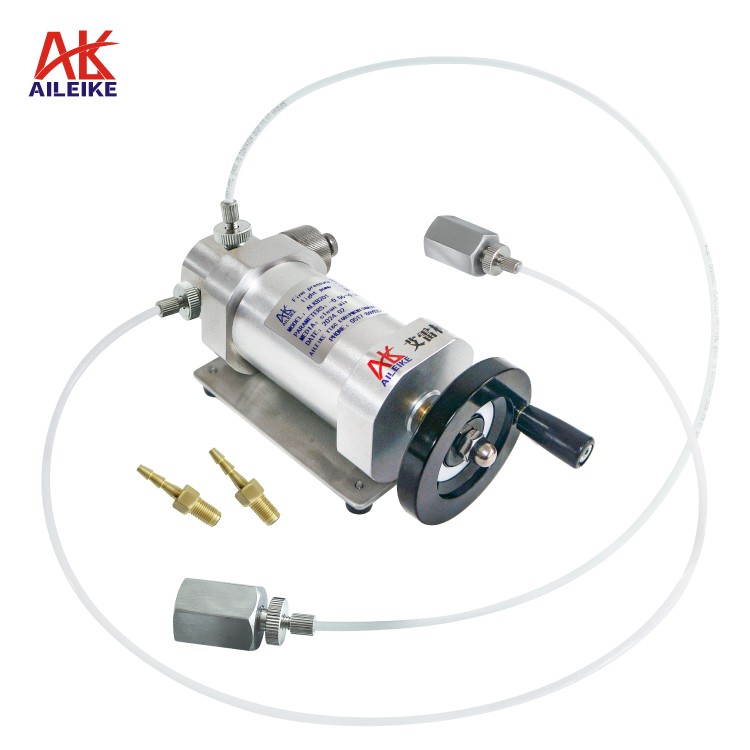

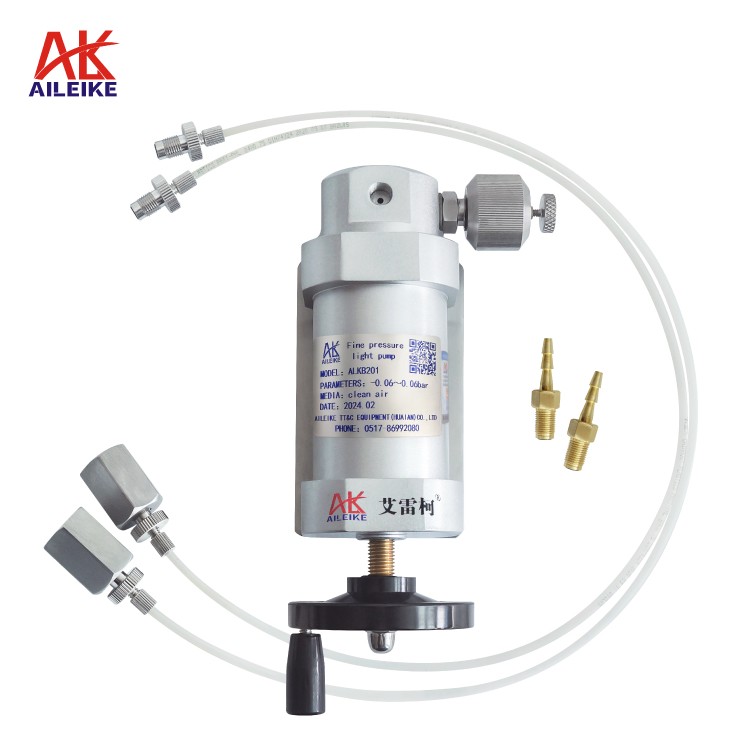

Portable miniature pressure pump alkb201

1

2

3

4

5

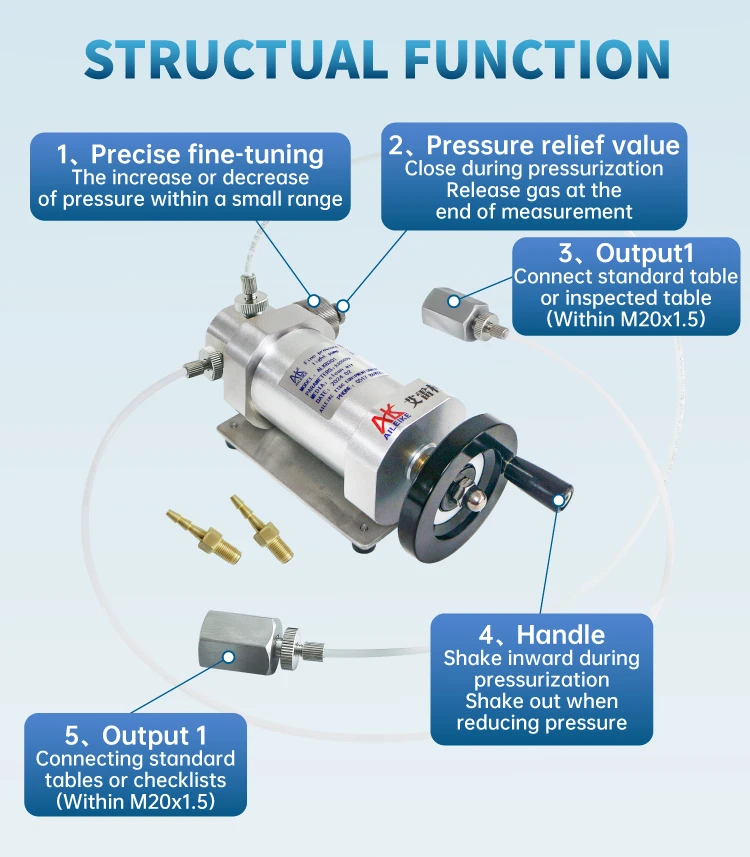

Precise fine-tuning

The increase or decrease

of pressure within

a small range

Pressure relief value

Close during pressurization

Release gas at the

end of measurement

Output 1

Connect standard table

or inspected table

(Within M20x1.5)

Handle

Shake inward during

pressurization

Shake out when

reducing pressure

Output 2

Connect standard table

or inspected table

(Within M20x1.5)

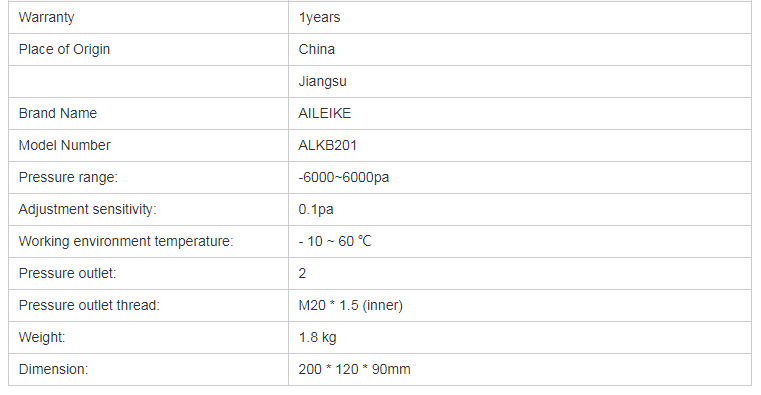

Product name

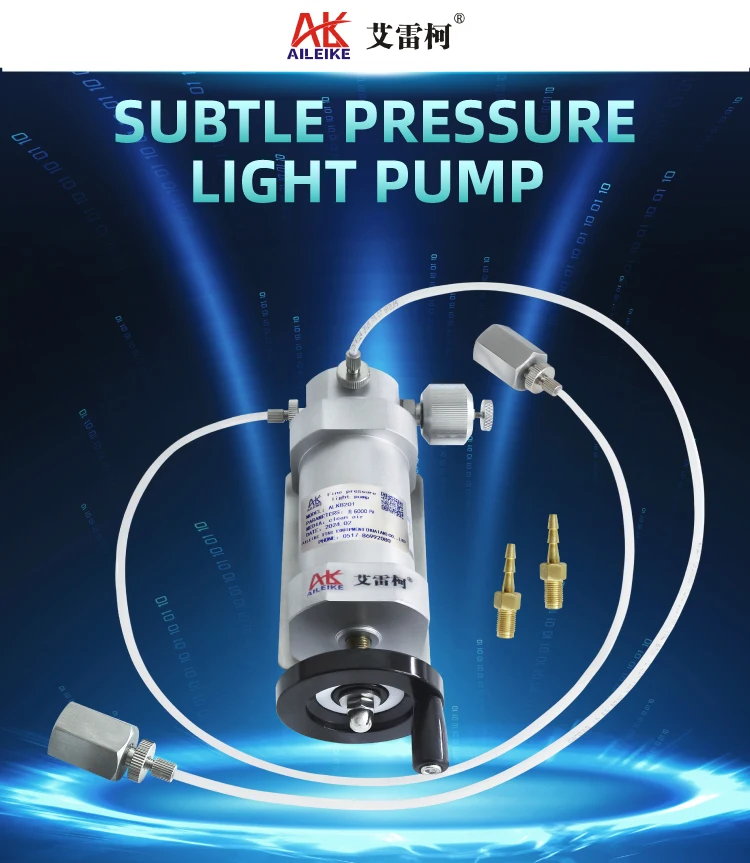

Subtle pressure light pump

Model

ALKB201

Measuring range

-6000~6000Pa

Regulating fineness

1 pa

Output port

Two

Pressure connection

The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation.

Ambient temperature

-10~60℃

Measurement medium

Clean air

Way of Pressure

Hand movement

Weight

Approximately 1.8kg

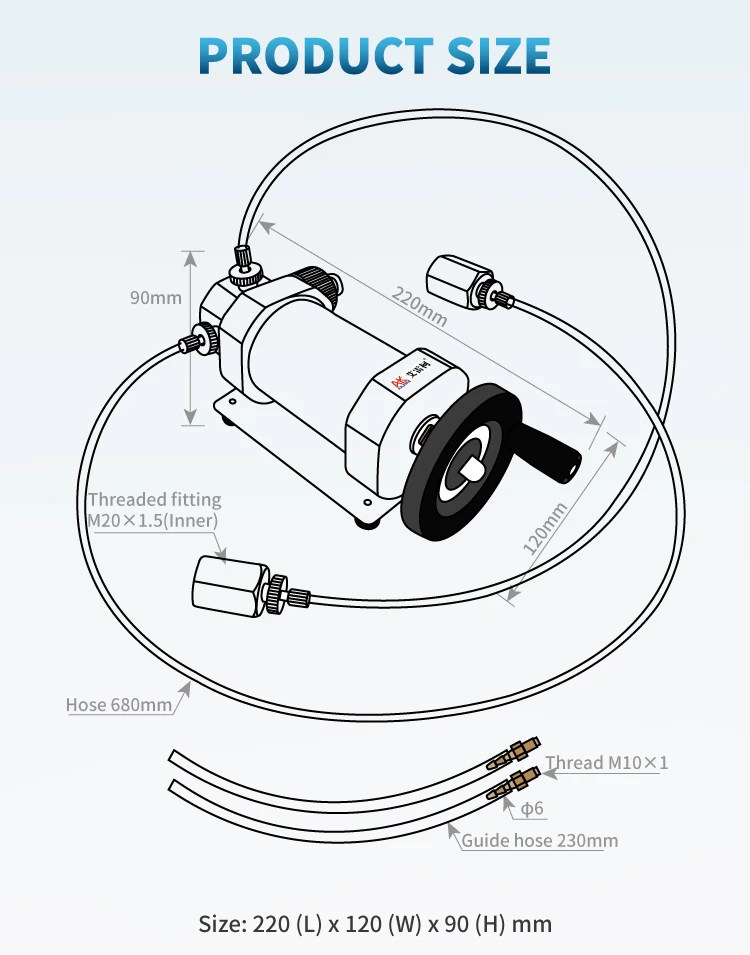

Size

220×120×90mm

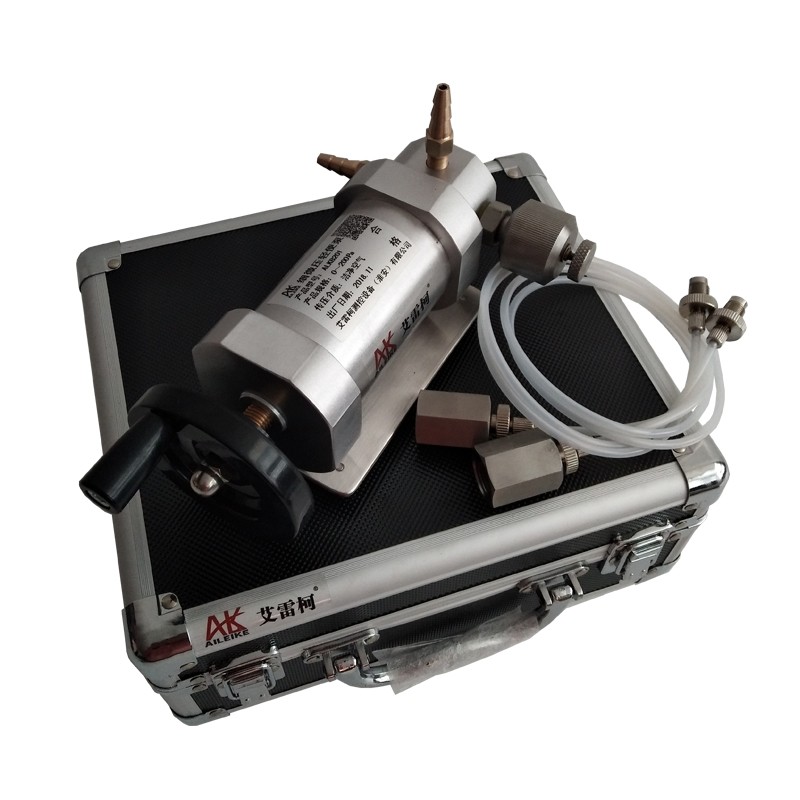

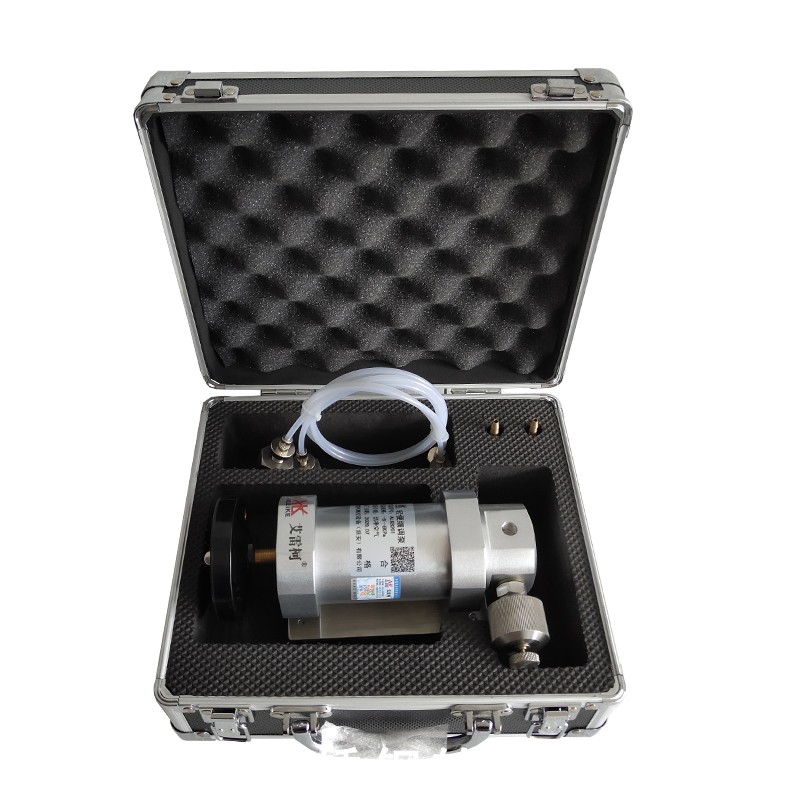

Weight of instrument box

Approximately 0.9kg

Instrument box size

280×260×230mm

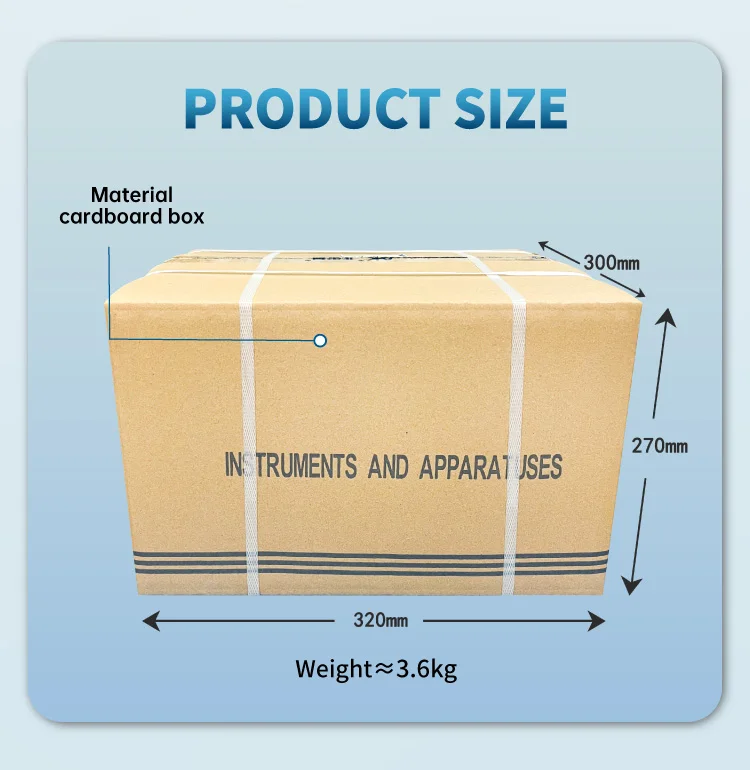

Product weight

Approximately 3.6kg

(packaging material is cardboard box)

Product packaging size

320×300×270mm

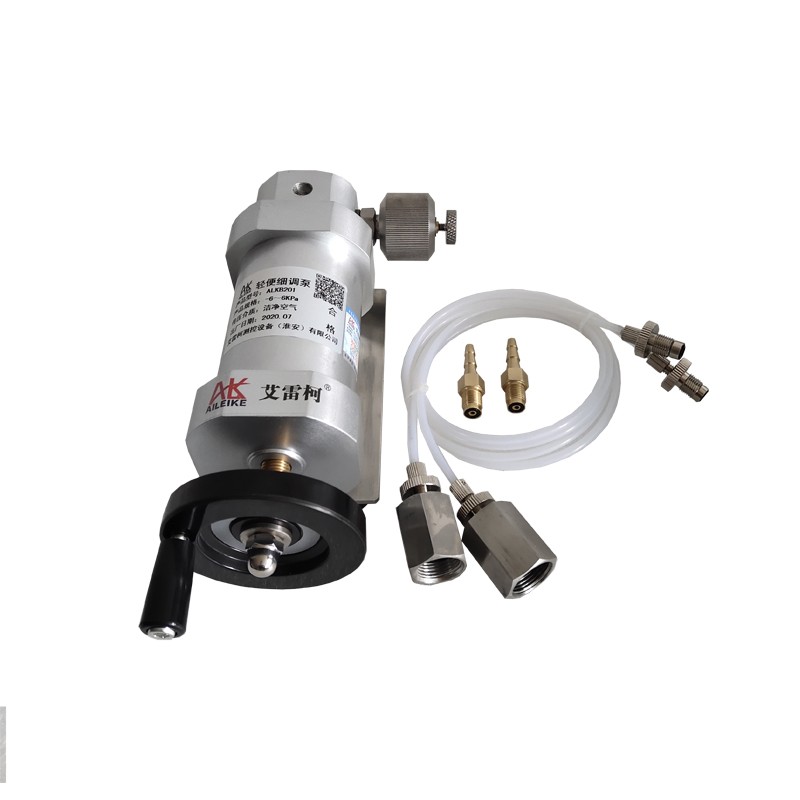

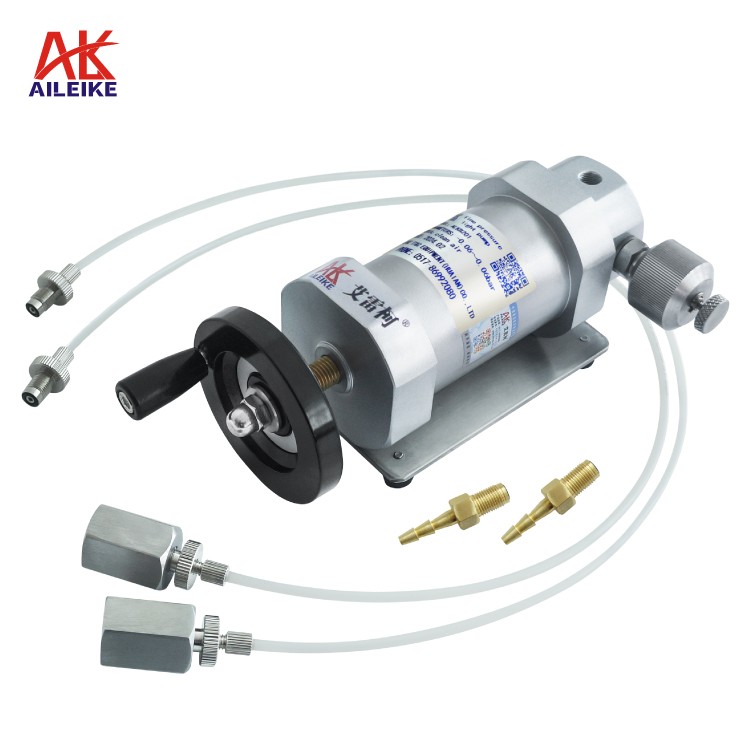

Product standard configuration

Joint hose x2

Guiding hose x2

Guide joint x 2

Sealing ring x 4

Output port plug x 1

Instruction manual x 1

Certificate of conformity x 1

Warranty card x 1
