Self operated micro pressure regulating valve

Product Features

1、The adjustment spring is designed above the thin film actuator for on-site debugging.

2、No packing, there is no friction when the valve stem moves up and down, and the upper seal is reliable.

3、The sensitive components of the actuator are extremely sensitive, and even tiny pressure changes can be detected.

4、The valve body is in a four-way form, so K and B types can be used interchangeably.

5、Balanced structure, not affected by valve front pressure.

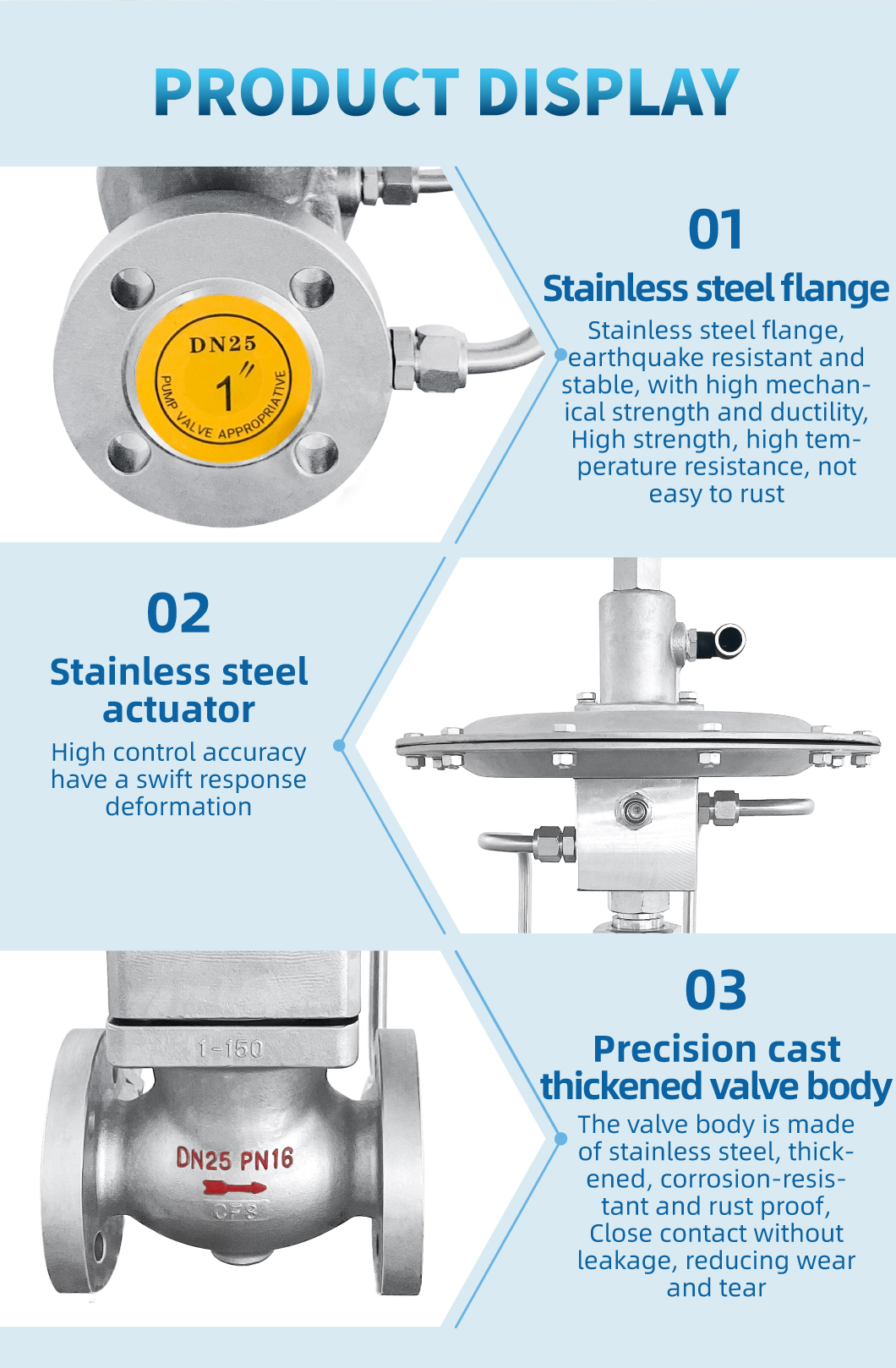

Product Display
01	02	03
Stainless steel flange	Stainless steel actuator	Precision cast thickened valve body
Stainless steel flange, earthquake resistant and stable, with high mechanical strength and ductility, High strength, high temperature resistance, not easy to rust	High control accuracy have a swift response deformation	The valve body is made of stainless steel, thickened, corrosion-resistant and rust proof, Close contact without leakage, reducing wear and tear

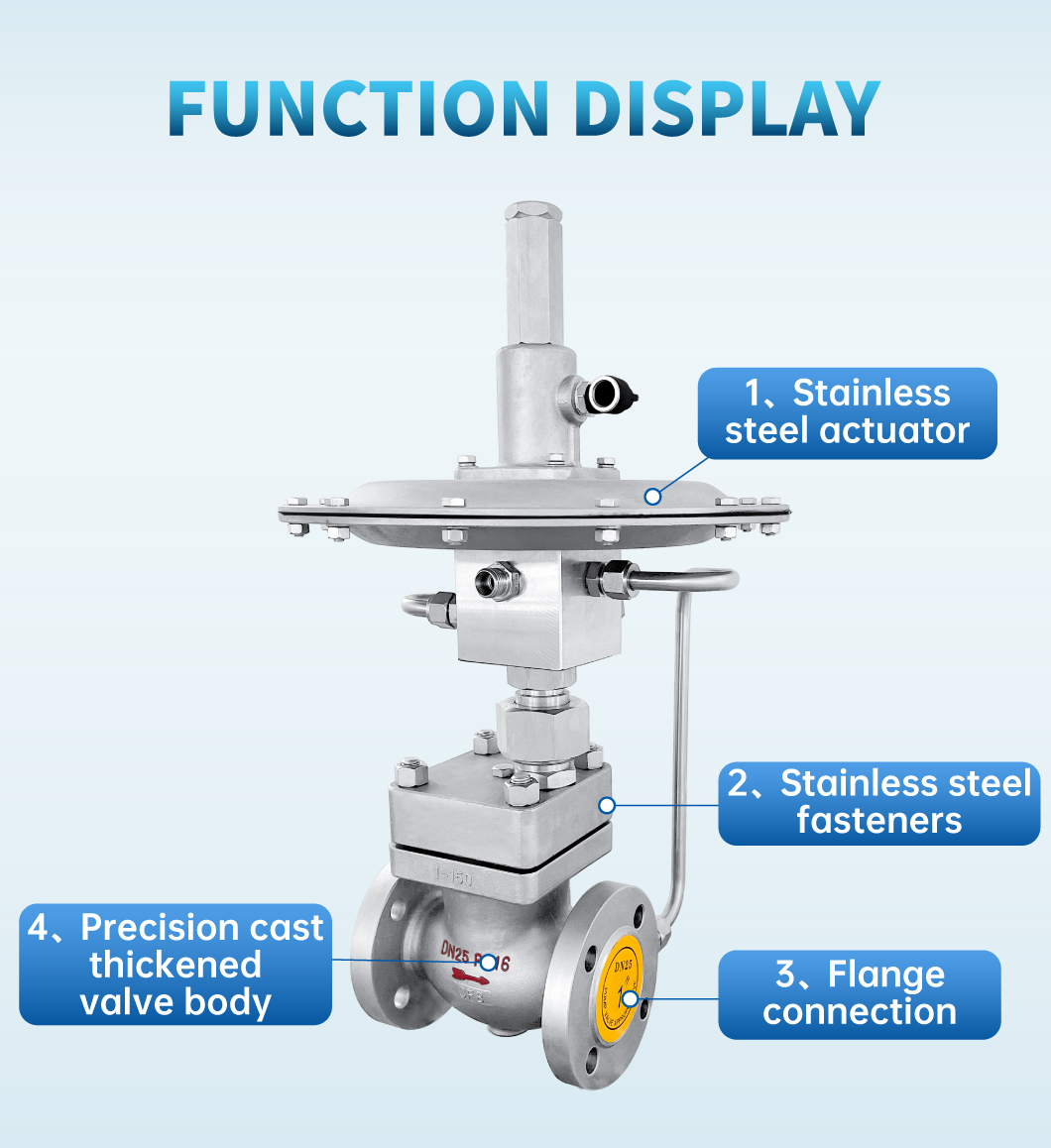

Function Display

Stainless steel actuator

Stainless steel fasteners

Flange connection

Precision cast thickened

valve body

Product Information
Customized processing	Yes
Product name	Self operated micro pressure regulating valve
Nominal pressure	1.6MPa
Nominal diameter	DN20~DN150
Body material	0.1~1.2MPa
Control accuracy	5%
Cut off performance	5%
Connection method	Flange connection
Temperature	-20~+60℃
Leakage level	VI
Media type	Nitrogen, air or other gases
Pressure regulation range segmented in kPa	0.3~0.8/0.5~1.5/1~4/3~15
