Description
|
1 |
2 |
3 |
4 |
5 |
6 |
|
Divergent heat dissipation zone + homogeneous block |
Portable handle |
Temperature -controlled liquid crystal display |
Heating and cooling pause switch |
Main power switch |
Power cord jack |
|
Product name |

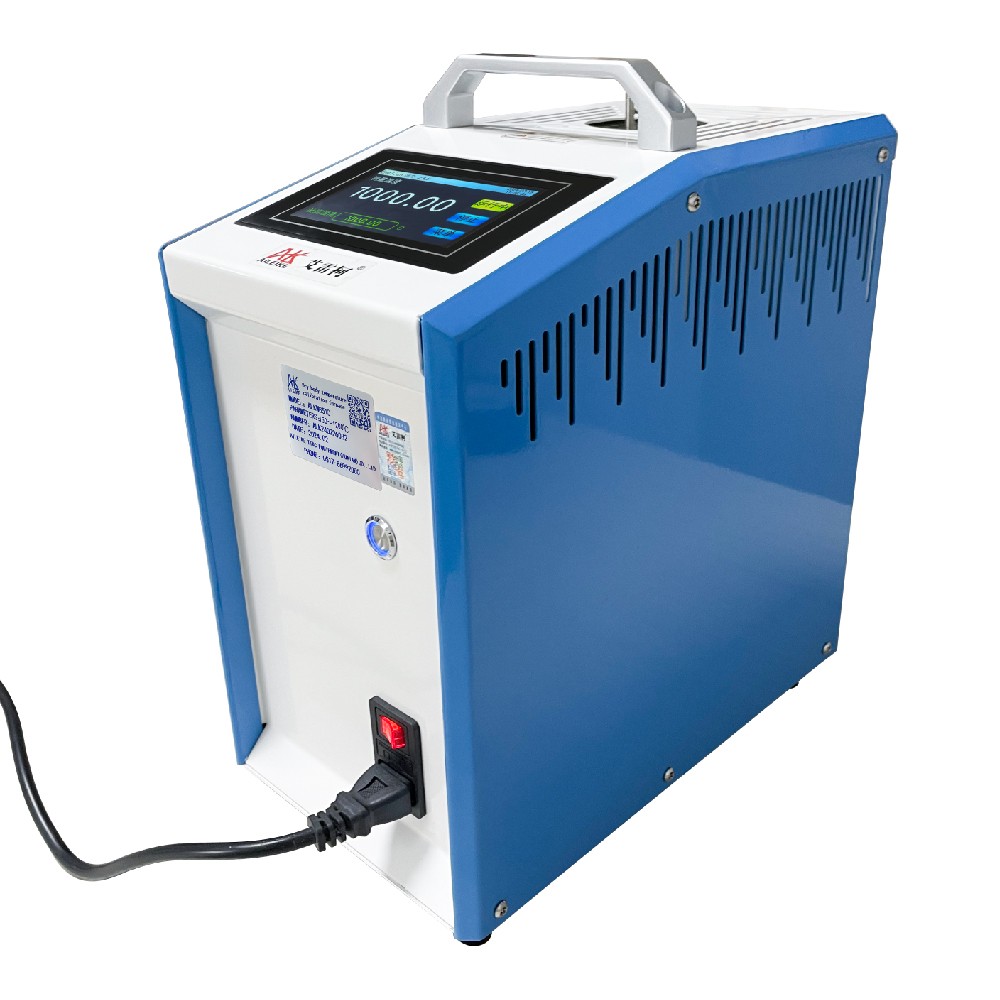

Dry body temperature test furnace |
|
Model |
ALKW851C |
|
Temperature range |
150~1000℃/150~1200℃ |
|
Heat source |
Electric heating |
|
Control method |
LCD touch screen |
|
Accuracy |
0.1 level |
|
Display resolution |
0.01℃/0.1℃ |
|
Stability |
±0.2℃ |
|
Uniformity |
±0.3℃ |
|
Power supply |
220V/50HZ 60HZ 600W |
|
Calibration well depth |
180mm |
|
Well opening dimensions |
40mm |
|
Measurement hole diameter |
∅6mm ,∅8mm , ∅10mm, ∅12mm( customizable ) |
|
Default display |
Chinese/English switch |
|
Operating temperature |
20±2℃ |
|
Furnace size |
360×190×300mm |
|
Furnace weight |
Approximately 7.7kg |
|
Weight of instrument box |
440×240×340mm |
|
Instrument box size |
Approximately 3.0kg |
|
Product outer box size |
520×320×420mm ( The packaging material is a wooden box ) |
|
Product outer box weight |
Approximately 16kg |
|
Standard Accessories |
Power cord×1, Furnace core×1, User manual×1, Certificate of conformity×1, Matching packaging: Instrument case×1 |
