Description

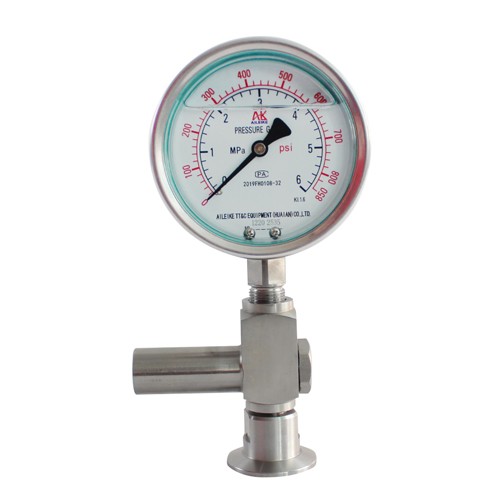

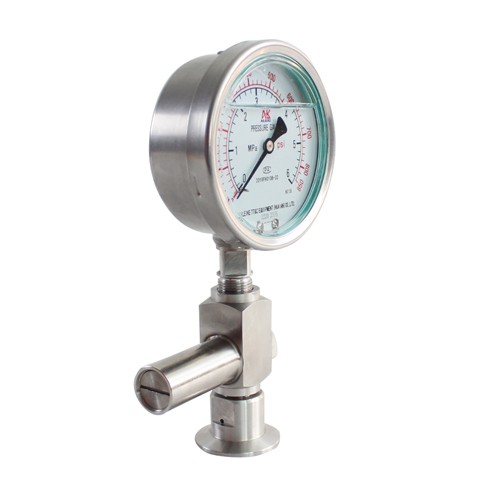

Yb-100fzgymc stainless steel diaphragm shock resistant pressure gauge is used in petroleum, chemical industry, chemical fiber, dyeing, pharmaceutical, alkali food and other industrial sectors. Measuring corrosive, high viscosity, easy to crystallize, easy to solidify, high temperature, the pressure of liquid, gas or granular solid medium, and the occasions where the measuring medium must be prevented from directly entering the pressure instrument and sediment accumulation and easy to clean.
Structure principle
The pressure gauge is composed of a pressure guide system (including joint, spring tube, current limiting screw, etc.), a gear transmission mechanism, a number indicator device (pointer and dial) and a case (including case, cover, glass, etc.).The enclosure is air-tight structure, which can effectively protect the internal parts from environmental influence and pollution intrusion.For the instrument filled with liquid (usually silicone oil or glycerin) in the case, it can resist the vibration of the working environment and reduce the influence of the pulsation of medium pressure.
Decay resistance of diaphragm pressure gauges
The corrosion resistance of the diaphragm pressure gauge can be ensured by the proper selection of materials for the diaphragm, flange and sealing ring in contact with the measuring medium.
Diaphragm material: 316,316 L
Flange material: 316,316L
Sealing ring material: silicone rubber, PTFE
Technical indicators
Accuracy grade: ±1.6%;Plus or minus 2.5%.
Case diameter: 60mm;100 mm;150mm
Case material: 304 stainless steel, 316 stainless steel.
Case form: Containment construction, clapboard device after release
Material of elastic element and joint body: 304;Argon arc welding of elastic element to joint body.
Movement material: 304 stainless steel, 316 stainless steel.
Joint thread: M14×1.5;G1/4;M20 x 1.5;1/2 NPT, etc.
Measuring range: -0.1~0 MPa or,0.1~60 MPa
Pointer: Normal
Table glass: plexiglass
Shock resistant filling material glycerin 98% (silicone oil, fluorine oil or other categories can be selected)
Ambient temperature:
1) -25~70℃(liquid filled inside the shell)
2) -40~70℃(no liquid filling in the shell)
Temperature influence: not more than 0.4%/10℃(use temperature deviation from 20±5℃)
Anti-vibration of working environment: V·H·4 (liquid filled inside the shell)V·H·3 (liquid not filled inside the shell)
