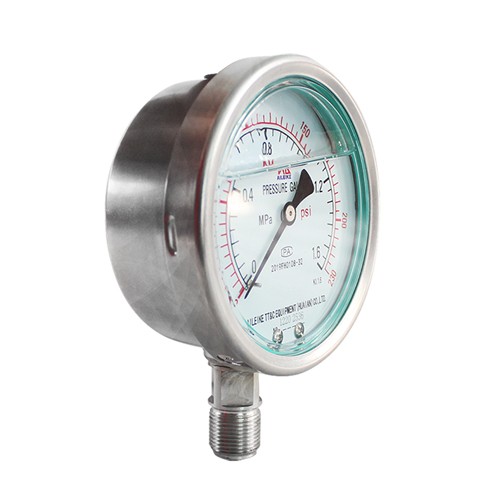

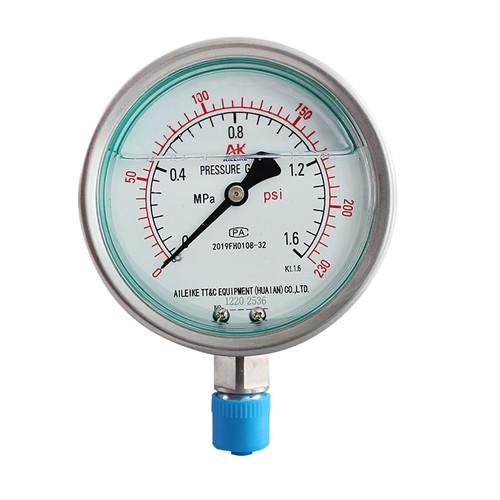

Stainless steel shock proof pressure gauge y-100bfz

Description

The parts of stainless steel pressure gauges are made of corrosion-resistant stainless steel and corrosion-resistant alloy materials, so that the stainless steel pressure gauges have good corrosion resistance. The stainless steel pressure gauges can be widely used in petroleum, chemical, mining, machinery, electric power and food industries. Direct measurement of non-crystalline, corrosive gas and liquid pressure.

Model Number	Y-100BFZ
Type:	pressure gauge
Pressure range:	-0.1~0 MPa,0.1~60 MPa
Accuracy:	±1.6% ;±2.5%
Size:	60mm;100mm ;150mm

Type	Scale range MPa (Hg~PSi)	Accuracy Grade
Y-60BF Y-60BFZ Y-63BF Y-63BFZ	0 ≤ 0.6, 1, 1.6, 2.5, 4, 6, 10,16,25,40,60 -0.1 ≤ 0.5, 0.9, 1.5, 2.4	2.5
Y-100BF Y-100BFZ Y-150BF Y-150BFZ Y-103BF Y-103BF Y-153BF Y-153BFZ	0 ≤ 0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6 2.5,4,6,10,16,25,40,60 -0.1 ≤ 0, 0. 06, 0. 15, 0.3 0.5,0.9,1.5,2.4 (- 30 "~ 0, 15, 30, 60, 100, 150 0 15, 30, 60, 100, 200, 300, 400 600,800,1000,1500,2000, 3000,4000,6000,10000 )

The stainless steel pressure gauge is composed of a pressure guide system (including joint, spring tube, current limiting screw, etc.), a gear transmission mechanism, a number indicator device (pointer and dial) and a case (including case, cover, glass, etc.). The enclosure is air-tight structure, which can effectively protect the internal parts from environmental influence and pollution intrusion. For the instrument filled with liquid (usually silicone oil or glycerin) in the case, it can resist the vibration of the working environment and reduce the influence of the pulsation of medium pressure.

Note: The scale range and precision grade in brackets are for special order only.

Accuracy grade: ±1.6%; Plus or minus 2.5%.

Case diameter: 60mm; 100 mm; 150 mm.

Case material: 304 stainless steel, 316 stainless steel.

Case form: Containment construction, clapboard device after release

Material of elastic element and joint body: 304; Argon arc welding of elastic element to joint body.

Movement material: 304 stainless steel, 316 stainless steel.

Joint thread: M14×1.5; G1/4; M20 x 1.5; 1/2 NPT, etc.

Measuring range: -0.1~0 MPa or,0.1~60 MPa

Pointer: Normal

Table glass: plexiglass

Shock resistant filling material glycerin 98% (silicone oil, fluorine oil or other categories can be selected)
