Description
|
1 |
2 |
3 |
4 |
5 |
|

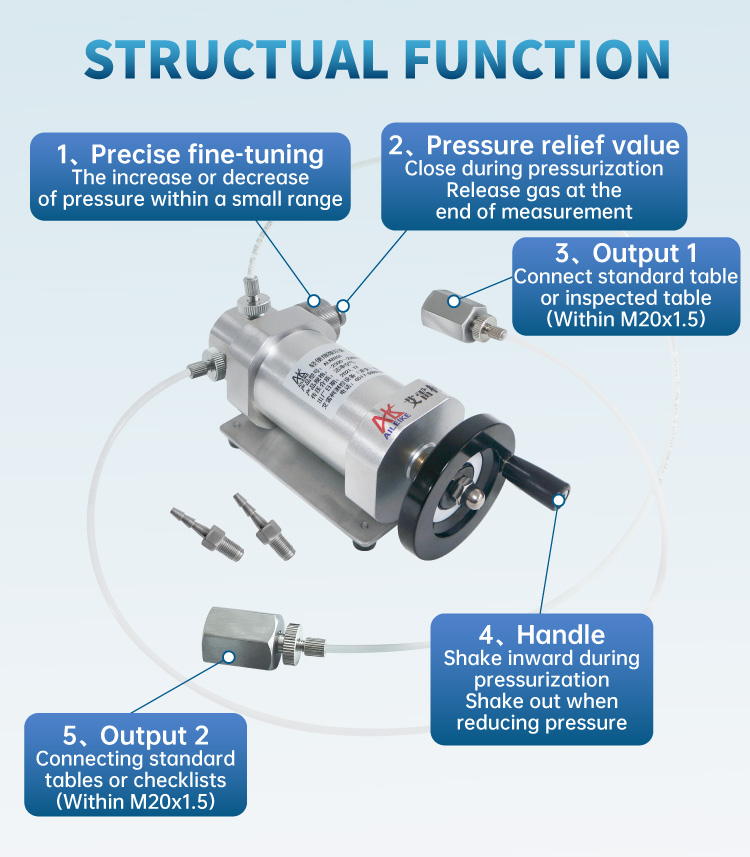

Precise fine-tuning The increase or decrease of pressure within a small range |
Pressure relief value Close during pressurization Release gas at the end of measurement |
Output 1 Connect standard table or inspected table (Within M20x1.5) |
Handle Shake inward during pressurization Shake out when reducing pressure |
Output 2 Connect standard table or inspected table (Within M20x1.5) |
|
Product name |

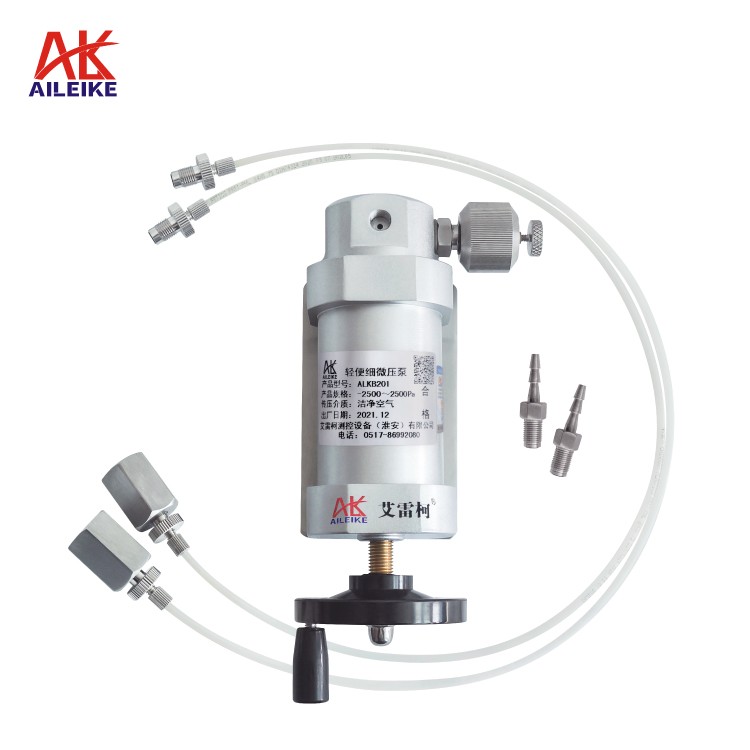

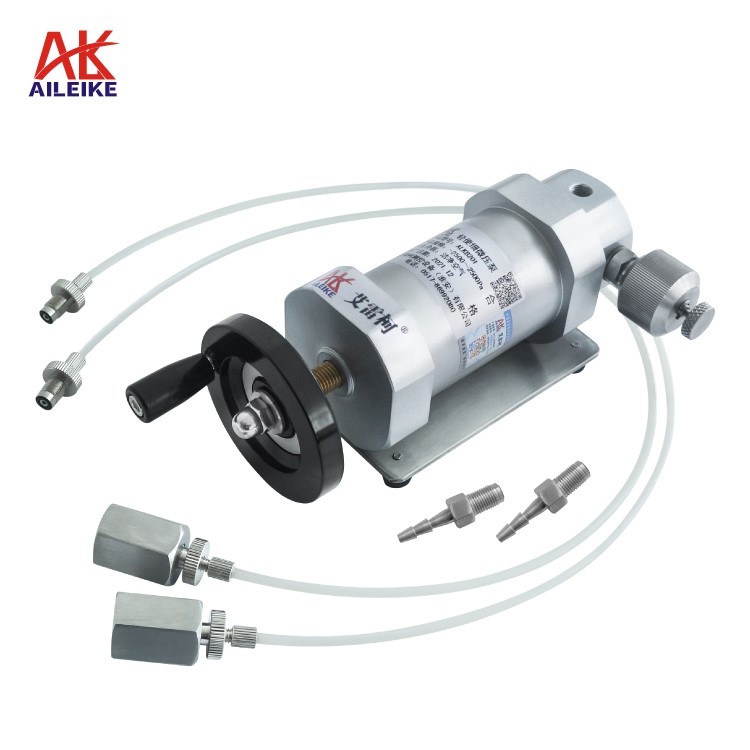

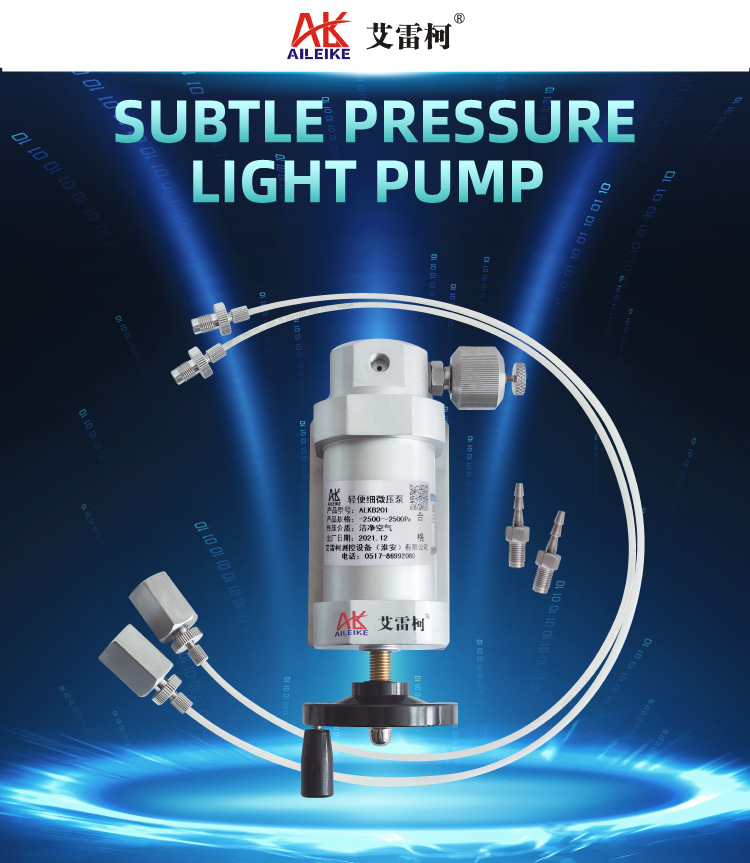

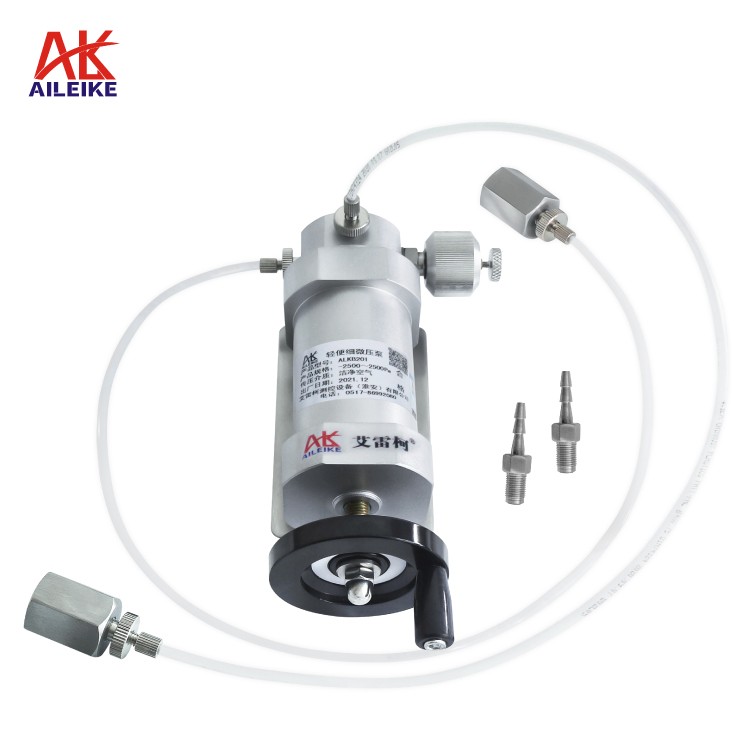

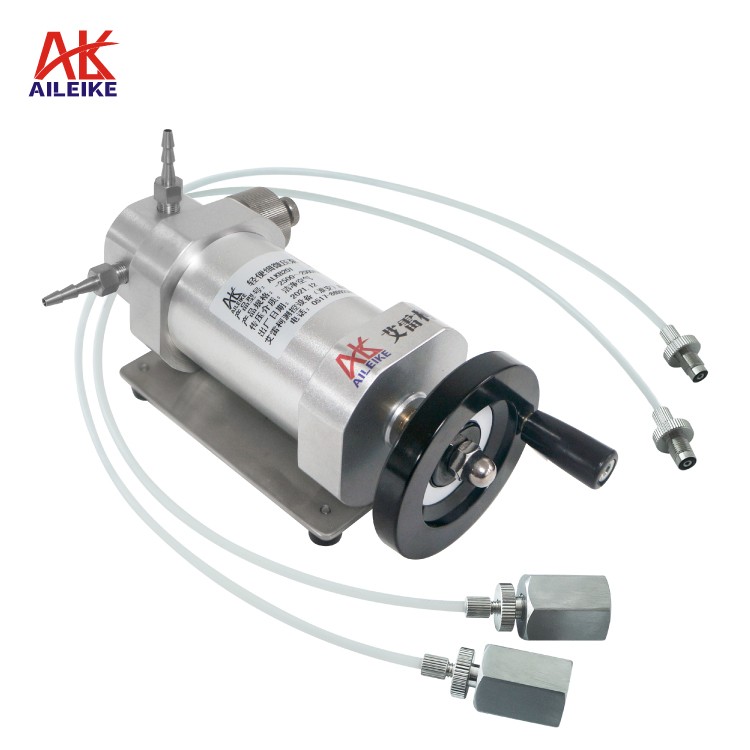

Subtle pressure light pump |
|
Model |
ALKB201 |
|
Measuring range |
-6000~6000Pa |
|
Regulating fineness |
1 pa |
|
Output port |
Two |
|
Pressure connection |
The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation. |
|
Ambient temperature |
-10~60℃ |
|
Measurement medium |
Clean air |
|
Way of Pressure |
Hand movement |
|
Weight |
Approximately 1.8kg |
|
Size |
220×120×90mm |
|
Weight of instrument box |
Approximately 0.9kg |
|
Instrument box size |
280×260×230mm |
|
Product weight |
Approximately 3.6kg (packaging material is cardboard box) |
|
Product packaging size |
320×300×270mm |
|
Product standard configuration |
Joint hose x2 Guiding hose x2 Guide joint x 2 Sealing ring x 4 Output port plug x 1 Instruction manual x 1 Certificate of conformity x 1 Warranty card x 1 |
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours.
Q:How soon can you arrange your production?
A:once getting your product confirmation and receiving the prepayment, the
production will be started immediately.
Q: Whats delivery time?
A:lt usually takes about 3-5 working days for small order and 10-15 days for big
order.
Q: Whats your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes,OEM and oDM are both available, we have the professional R&D dept which
can provide professional solutions for you.
