Description
|
① |
② |
③ |
④ |
⑤ |
⑥ |
|
Pressure cutiet Connection standard table Connecting threads: M20X1.5 |
Fine tuning Increase or decreasepressure within a smallrange |
Switching valve Positive and negativepressure switch donot switch withpressure |
Pressure ReliefValue The pressure is closedat the end of the measurementand the gas is released |
Pressure outlet Connect to the checked table Connecting threads: M20X1.5 |
Pressure bor Repeated hard clenches andreleases produce pressure |
Product Information
|
Product name |

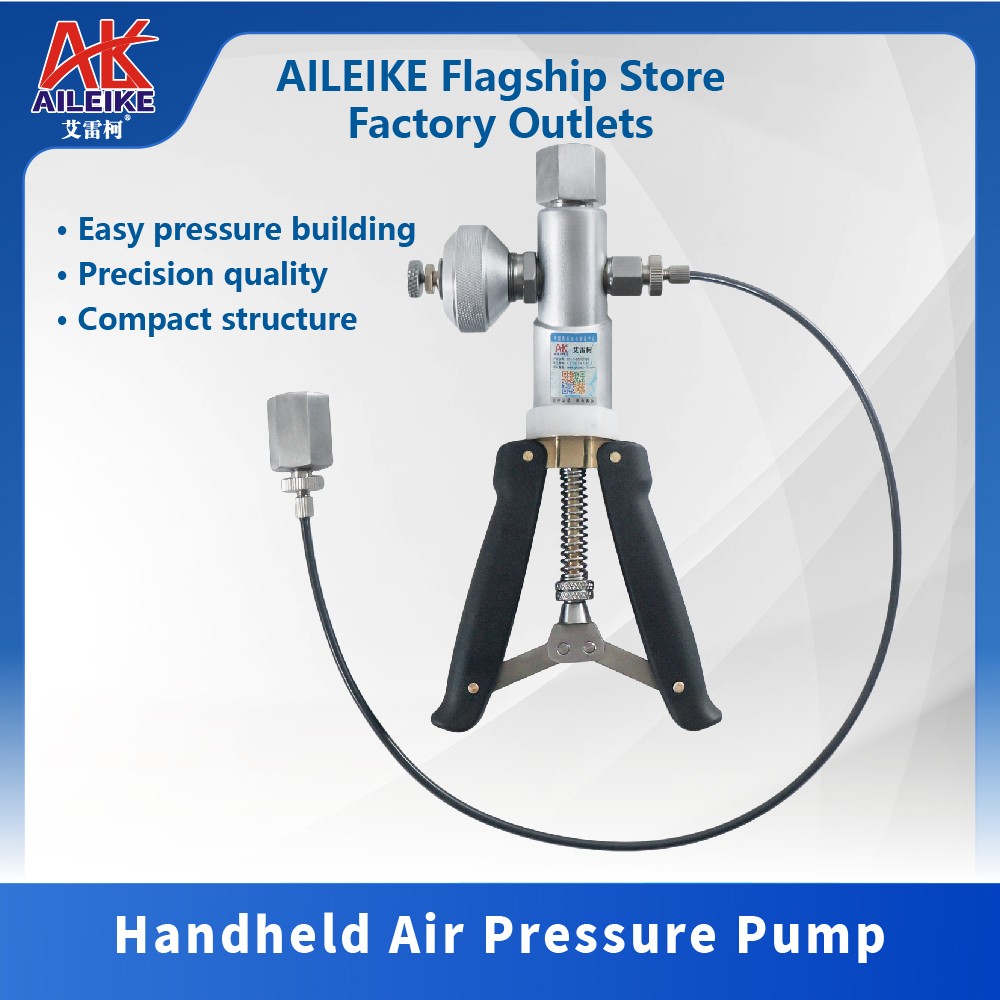

Handheld Air Pressure Pump |
|
Model |
ALKS503 |
|
Measuring range |
-0.95~25bar |
|
Environmentalconditions |
Laboratory or field |
|
Environmentaltemperature |
0～50℃ |
|
Way of Pressure |
Hand movement |
|
Connecting threads |
The default thread size for the pressure output port is M20 × 1.5. If other thread sizes are required, such as Bsp 1/2, G1/4, NPT1/4, G1/2, NPT1/2, etc., other special thread sizes can also be customized |
|
Applicable medium |
Clean air |
|
Net weight |
Approximately 0.8Kg |
|
Size |
220×110×55mm |
|
Product weight |
Approximately 3.3Kg |
|
Product packaging size |
310×290×160mm |
|
Product standard configuration |
Certificate of conformity x 1 copy Instructions x 1 copy Quality assurance card x 1 copy Sealing ring x 1 pack Portable bag x 1 piece 4 connector sets： G1/4(F) M20x1.5(M)x 1 piece G1/4(M) M20x1.5(M)x 1 piece NPT1/4(F) M20x1.5(M)x 1 piece NPT1/4(M) M20x1.5(M)x 1 piece |
