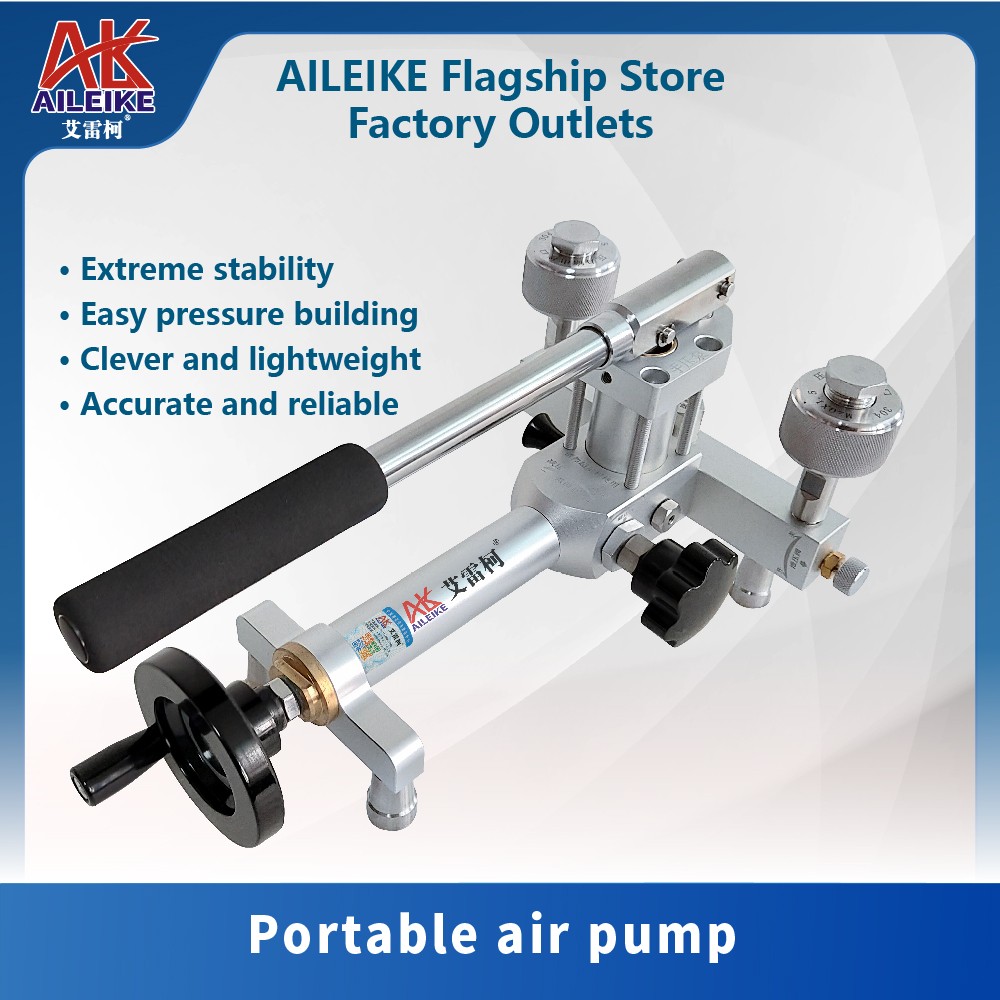

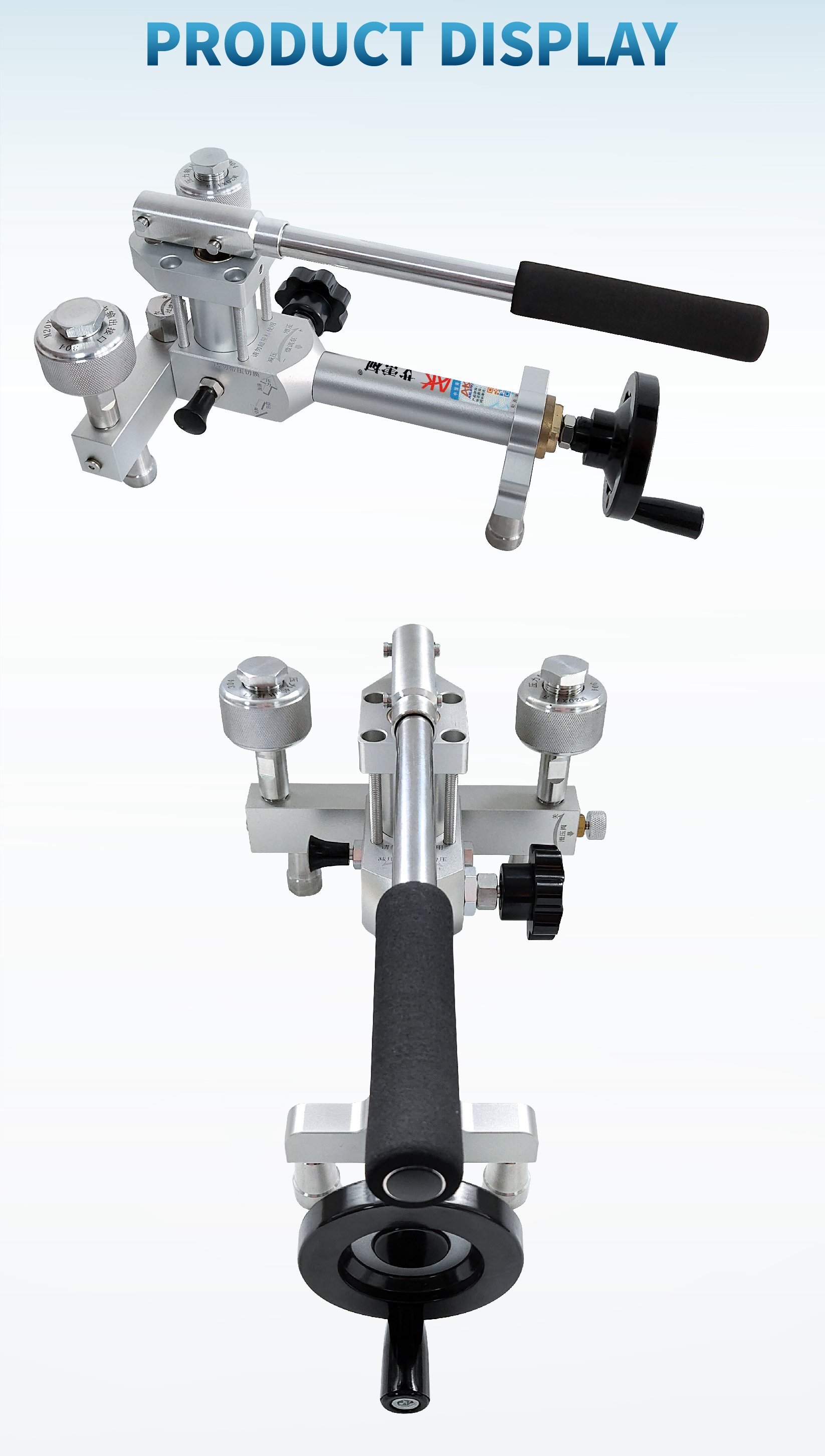

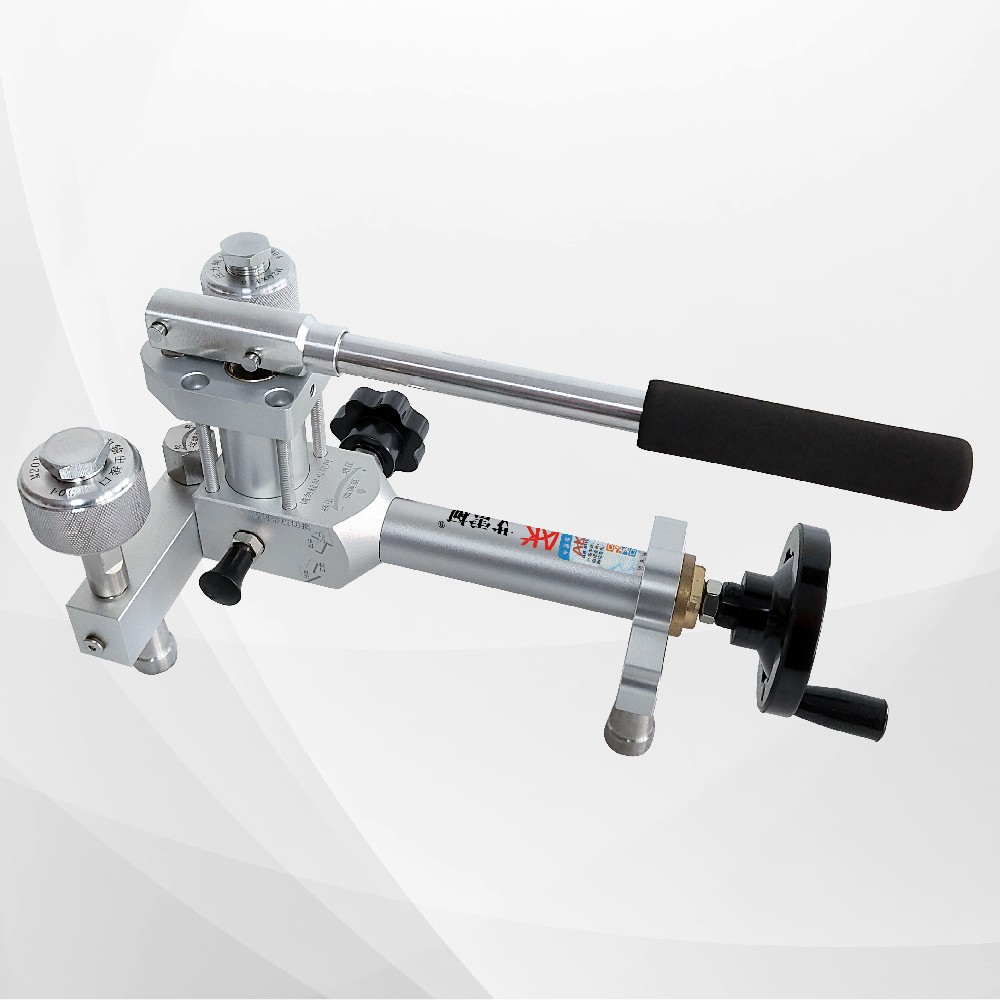

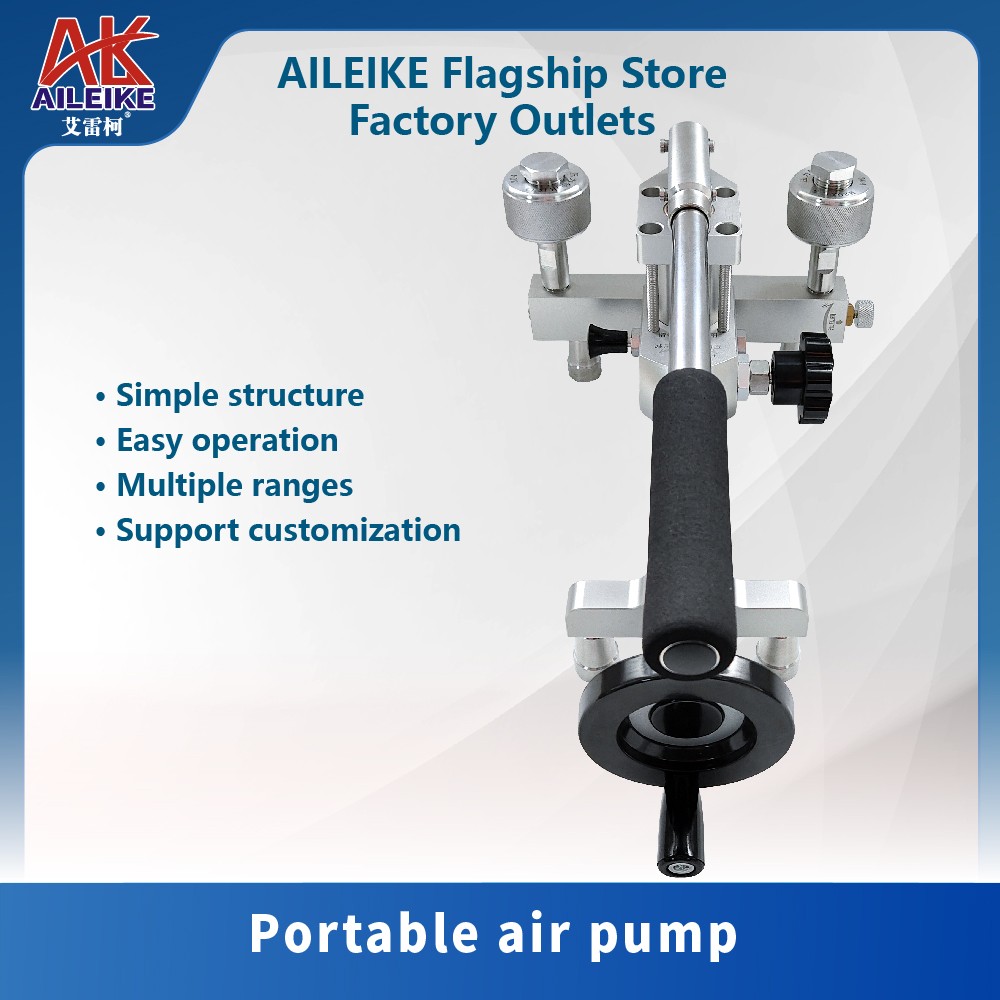

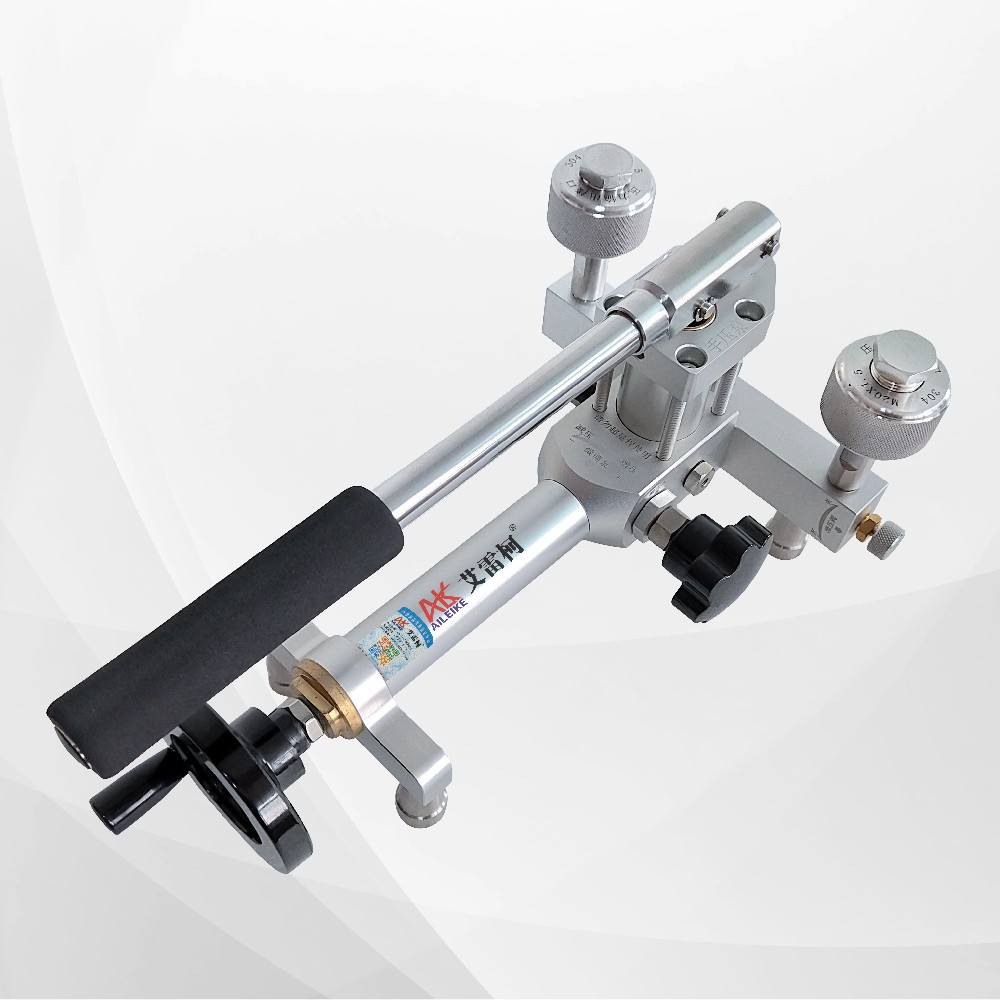

Portable pneumatic pump ALKB9602

①

②

③

④

⑤

⑥

⑦

Output 1

Connecting standard

tables or checklists

Connecting threads：

M20X1.5

Output 2

Connecting standard

tables or checklists

Connecting threads：

M20X1.5

Filter

Hand pressure lever

Drive the pistion column

to move throught operation

Pressure relief valve

Close during pressurization

Release pressure at the end

of measurement

Globe valve

Locked for stable

pressure when unstable

Fine tuning

Increase or decrease

pressure within a small

range

Product name

Portable air pump

Model

ALKB9602

Measuring range

-0.95~60bar

Regulating fineness

10 pa

Output port

Two

Pressure connection

The default thread size for the pressure output port is M20 × 1.5. If other thread sizes are required, such as Bsp 1/2, G1/4, NPT1/4, G1/2, NPT1/2, etc., other special thread sizes can also be customized

Ambient temperature

0~50℃

Measurement medium

Clean air

Way of Pressure

Hand movement

Weight

Approximately 3.2kg

Size

320×200×160mm

Weight after packaging

Approximately 4.2kg(packaging material is cardboard box)

Product packaging size

370×320×310mm

Product standardconfiguration

Certificate of conformity x 1

Instruction manual x 1

Quality assurance card x 1

Sealing ring x 2

Output port plug x 2
