Description
①
②
③
④
⑤
Pressure outputport
Connection table
Connecting threads:
M20X1.5
Fine tuning
Increase or decreasepressure
within a smallrange
Pressure relief value
Close during suppressionRelease
gas at the endof measurement
Pressure output port
Connect to the checkedtable
Connecting threads:
M20X1.5
Pressure rod
Grip tightly andrelax Repeatedly
exerting pressure

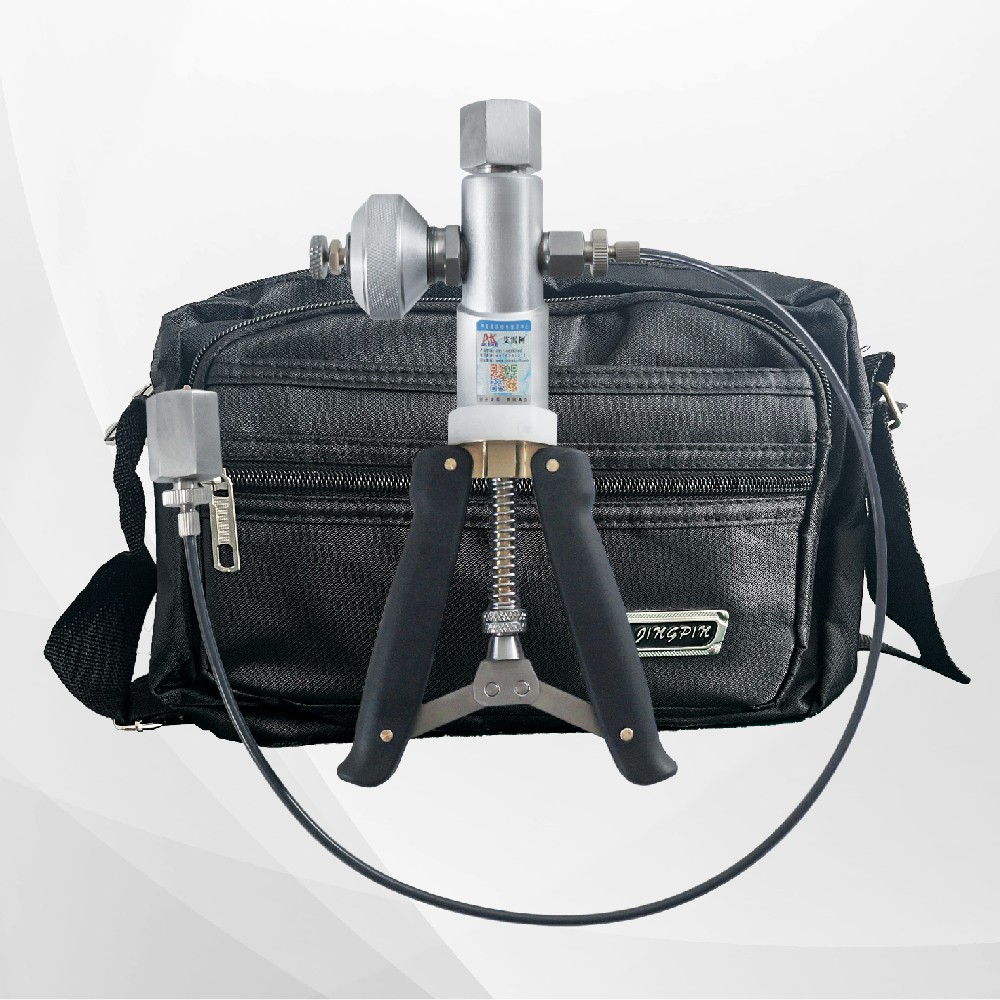

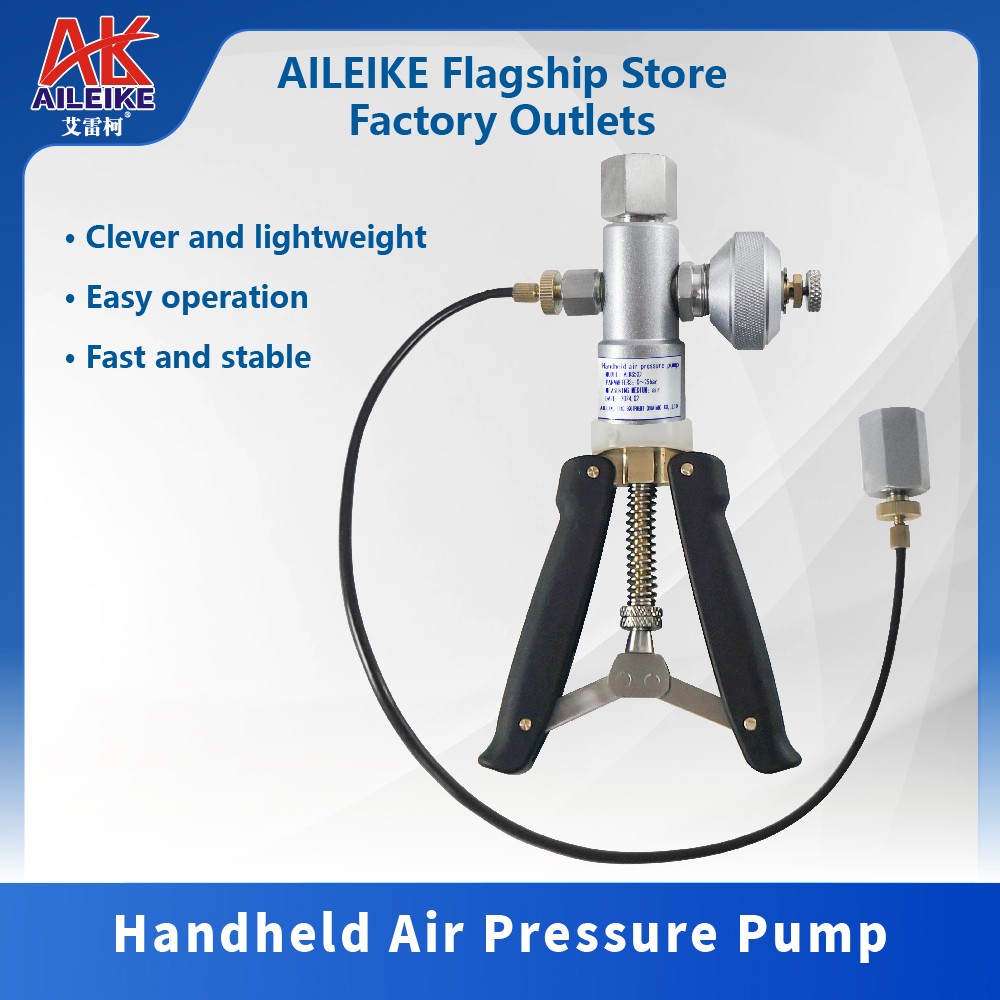

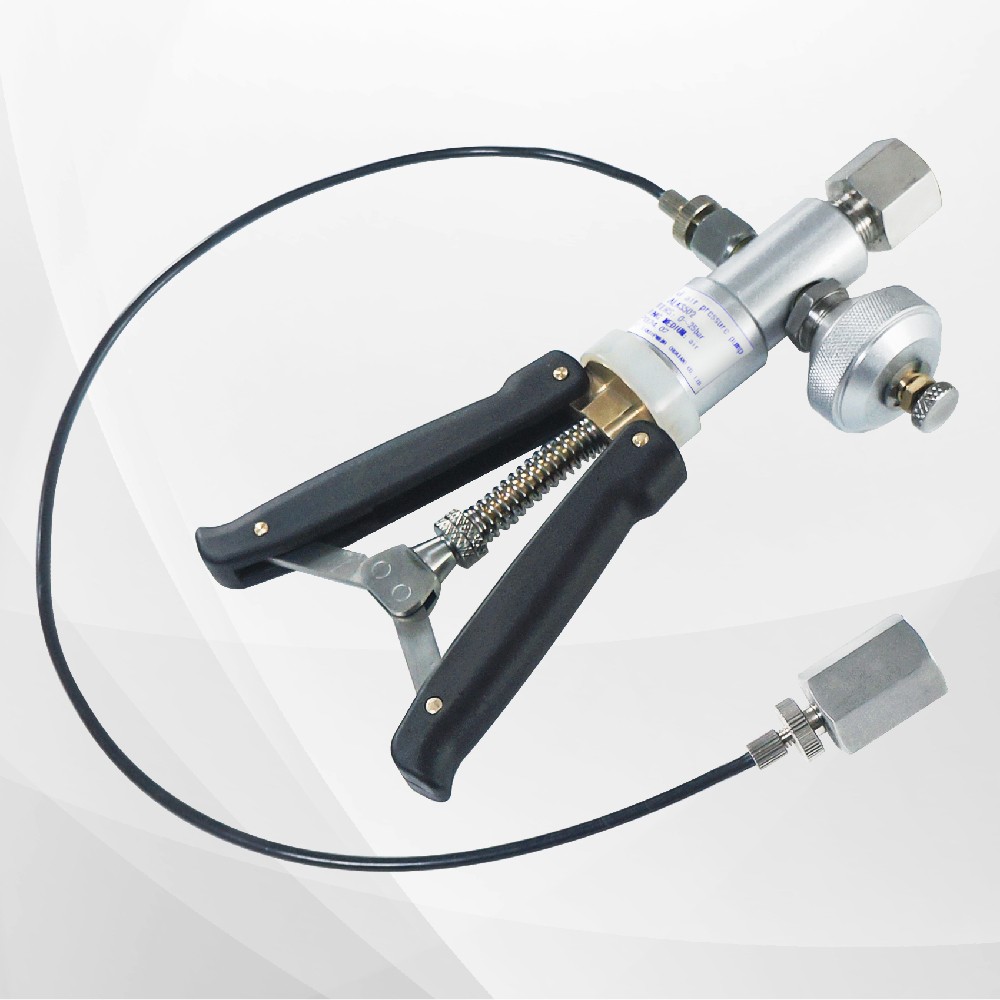

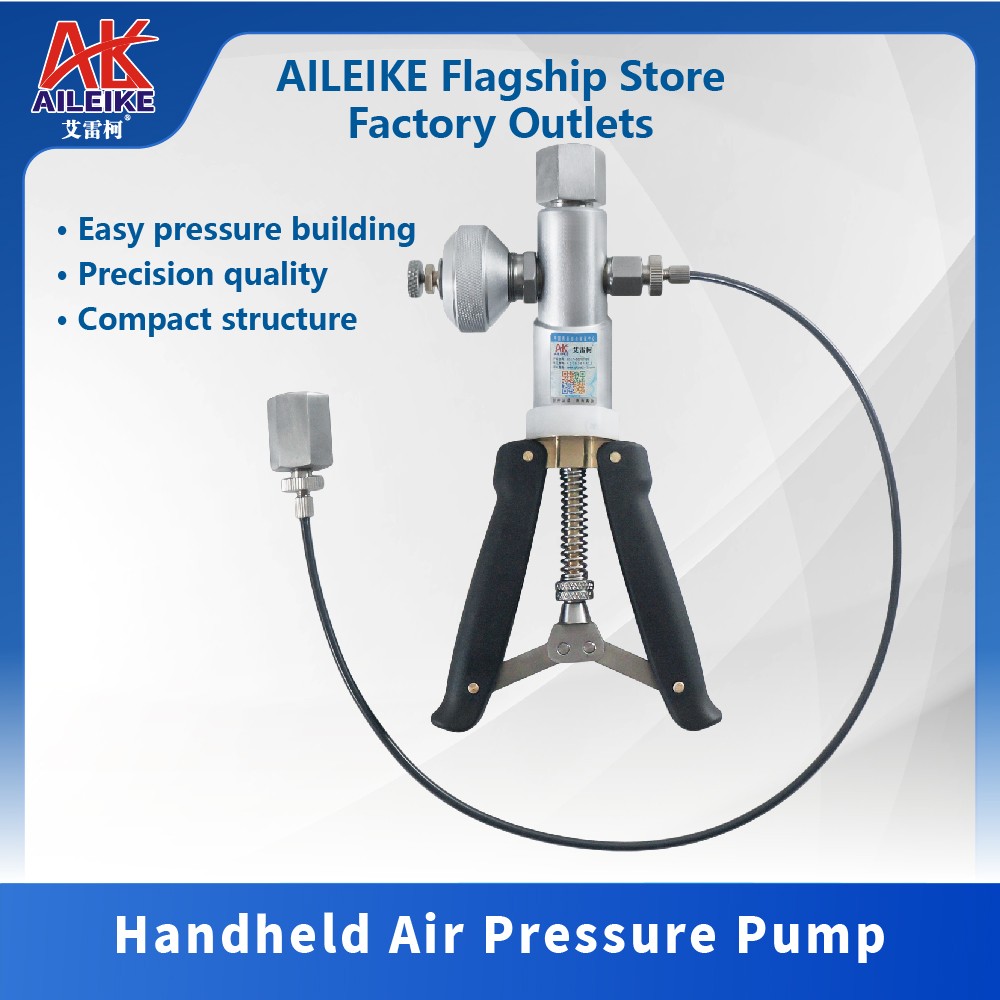

Product Information
|
Product name |
Handheld Air Pressure Pump |
|
Model |
ALKS502 |
|
Measuring range |
0~25bar |
|
Environmentalconditions |
Laboratory or field |
|
Environmentaltemperature |
0～50℃ |
|
Way of Pressure |
Hand movement |
|
Connecting threads |
The default thread size for the pressure output port is M20 × 1.5. If other thread sizes are required, such as Bsp 1/2, G1/4, NPT1/4, G1/2, NPT1/2, etc., other special thread sizes can also be customized |
|
Applicable medium |
Clean air |
|
Net weight |
Approximately 0.8Kg |
|
Size |
220×110×55mm |
|
Product weight |
Approximately 3.3Kg |
|
Product packaging size |
310×290×160mm |
|
Product standard configuration |
Certificate of conformity x 1 copy Instructions x 1 copy Quality assurance card x 1 copy Sealing ring x 1 pack Portable bag x 1 piece 4 connector sets： G1/4(F) M20x1.5(M)x 1 piece G1/4(M) M20x1.5(M)x 1 piece NPT1/4(F) M20x1.5(M)x 1 piece NPT1/4(M) M20x1.5(M)x 1 piece |
