Portable pneumatic pump ALKB612

1

2

3

4

5

6

7

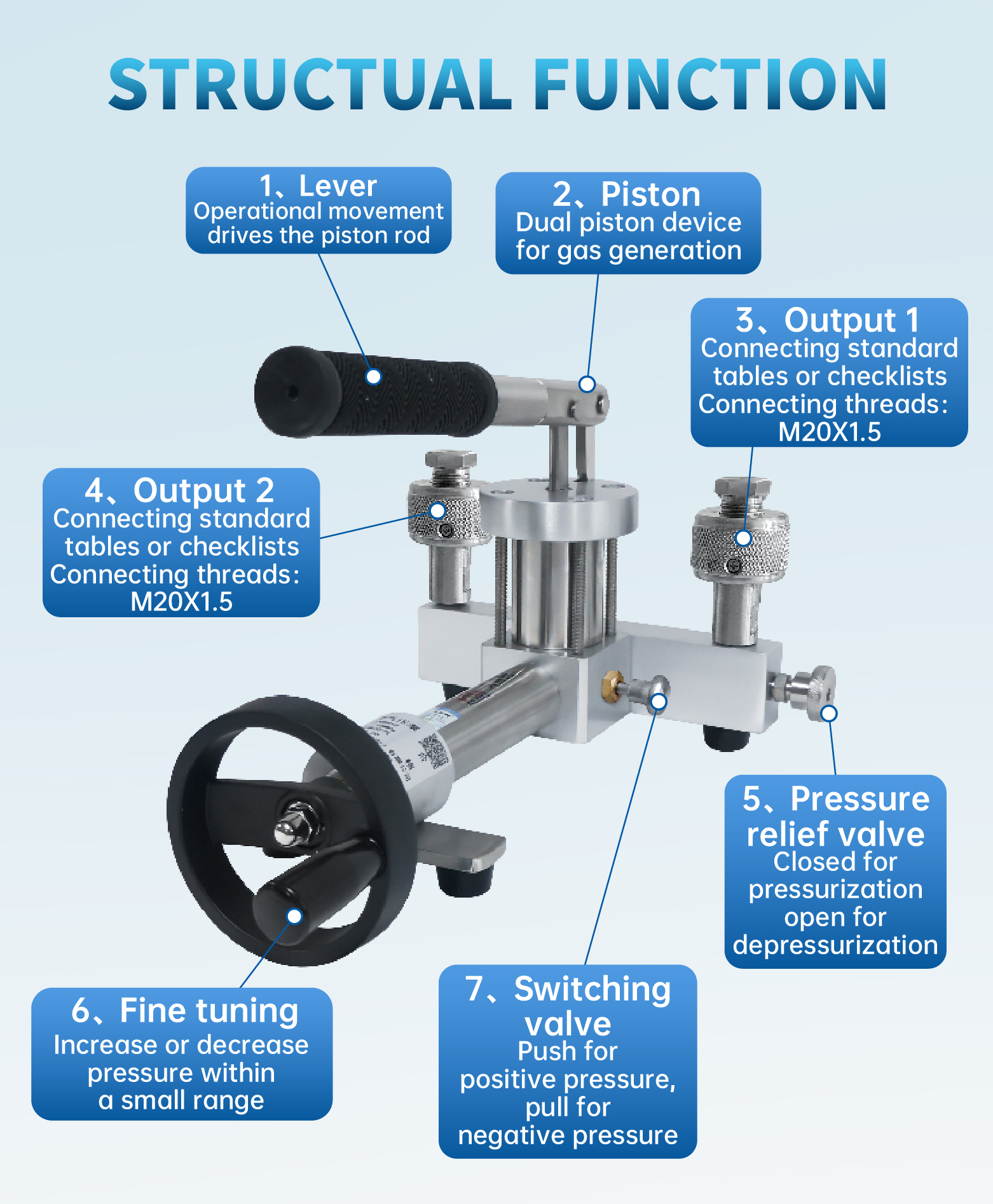

Lever

Operational movement

drives the piston rod

Piston

Dual piston device

for gas generation

Output 1

Connecting standard

tables or checklists

Connecting threads：

M20X1.5

Output 2

Connecting standard

tables or checklists

Connecting threads：

M20X1.5

Pressure

relief valve

Closed for

pressurization

open for

depressurization

Fine tuning

Increase or decrease

pressure within

a small range

Switching

Valve

Push for

positive pressure,

pull for

negative pressure

Product name

Portable air pump

Model

ALKB612

Measuring range

-0.95~60bar/-0.095~6MPa(Pressure selectable)

Adjust the fineness

10pa

Output port

Two

Pressure connection

The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation.

Ambient temperature

-10~60℃

Measurement medium

Clean air

Pressurization method

Hand movement

Net Weight

Approximately 4kg

Product size

350×230×175mm

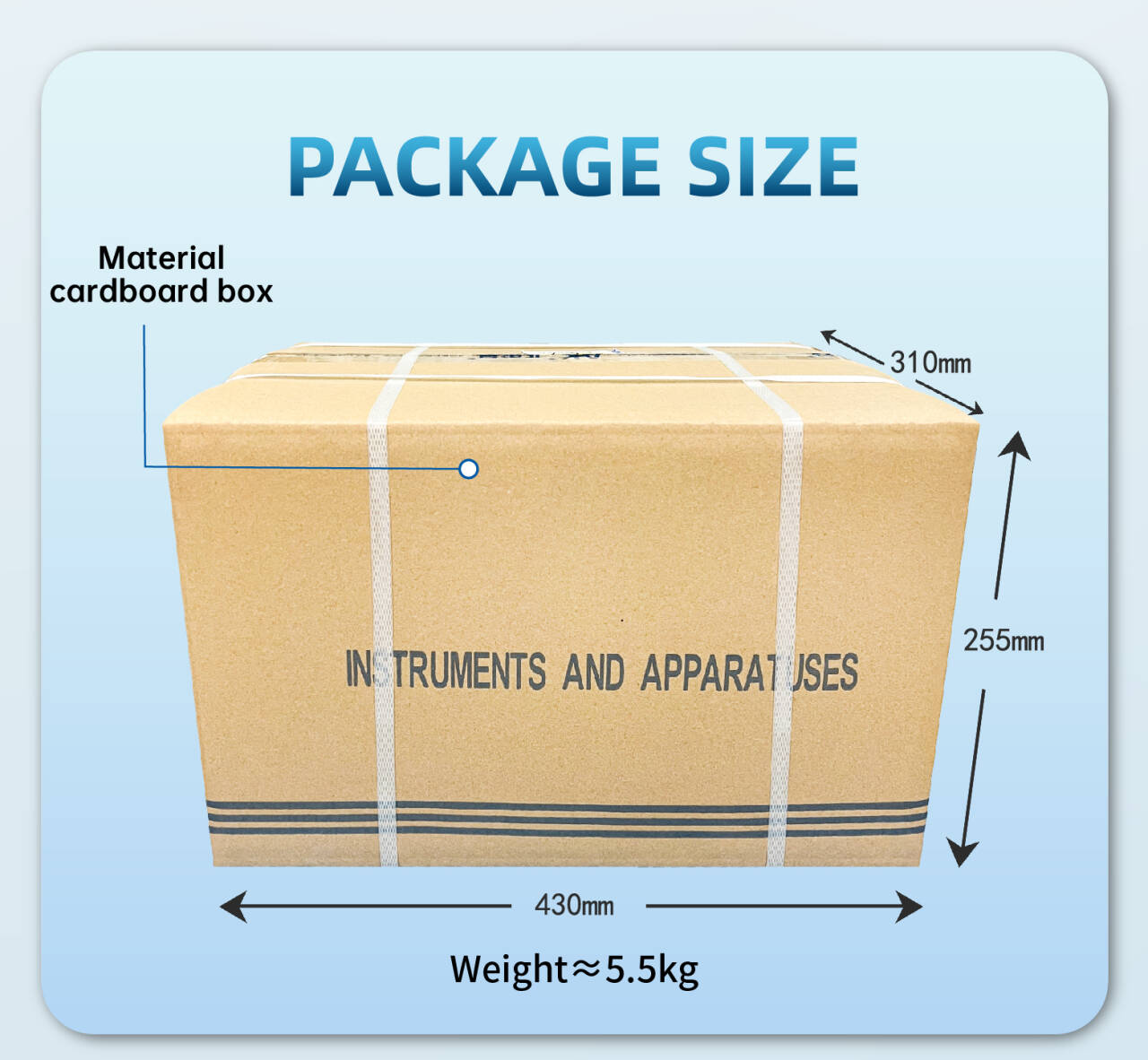

Packaged weight

Approximately 5.5kg(packaging material is cardboard box)

Product packaging size

430×310×255mm

Product standard configuration

Certificate of Conformity × 1

User Manual × 1

Warranty Card × 1

Sealing Ring × 2

Plug × 2
