Description
|
01 |
02 |
03 |
|
Widely used Petroleum/Chemical Industry Natural gas/metallurgy Electricity/Railway |
Mainly used Oxygen/Nitrogen Argon Helium/Hydrogen Propane Carbon Dioxide Acetylene Waiting for gas metrological verification
|
Boosting range When the cylinder pressure is 60bar, it can be pressurized to 150bar When the cylinder pressure is 90 bar, it can be pressurized to 250 bar |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|

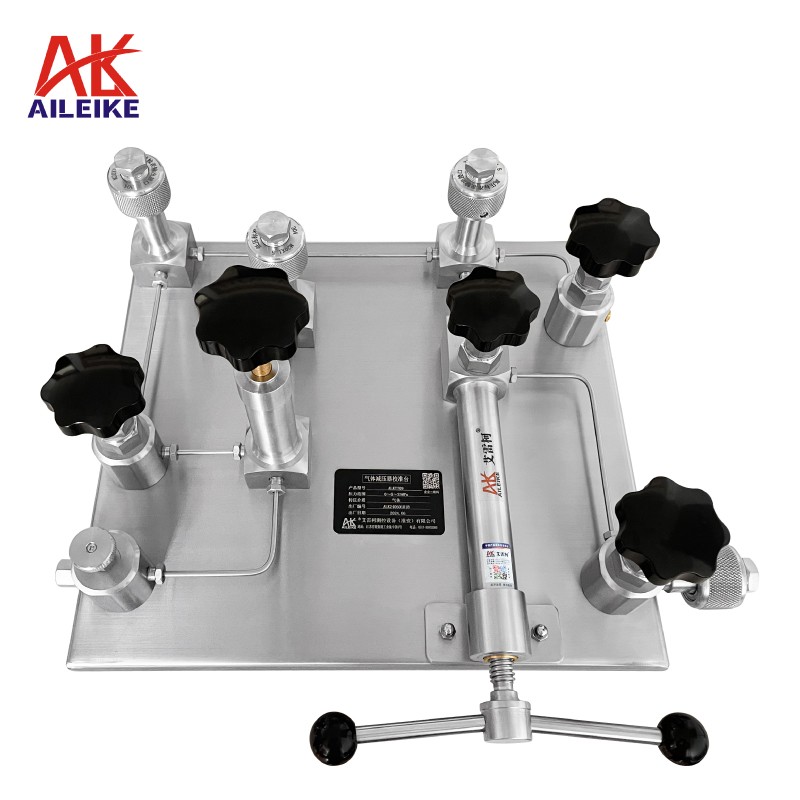

High voltage calibrated meter output interface Connecting threads： M20X1.5 |
Low voltage standard meter output interface Connecting threads： M20X1.5 |
High voltage standard meter output interface Connecting threads： M20X1.5 |
High pressure relief valve |
Low pressure fine adjustment |
Pressure regulating valve |
Low pressure relief valve |
Inlet shut-off valve |
Low pressure gauge connection |
Nitrogen cylinder connection |
High-Low pressure connection shut-off valve |
High pressure booster pump |
|

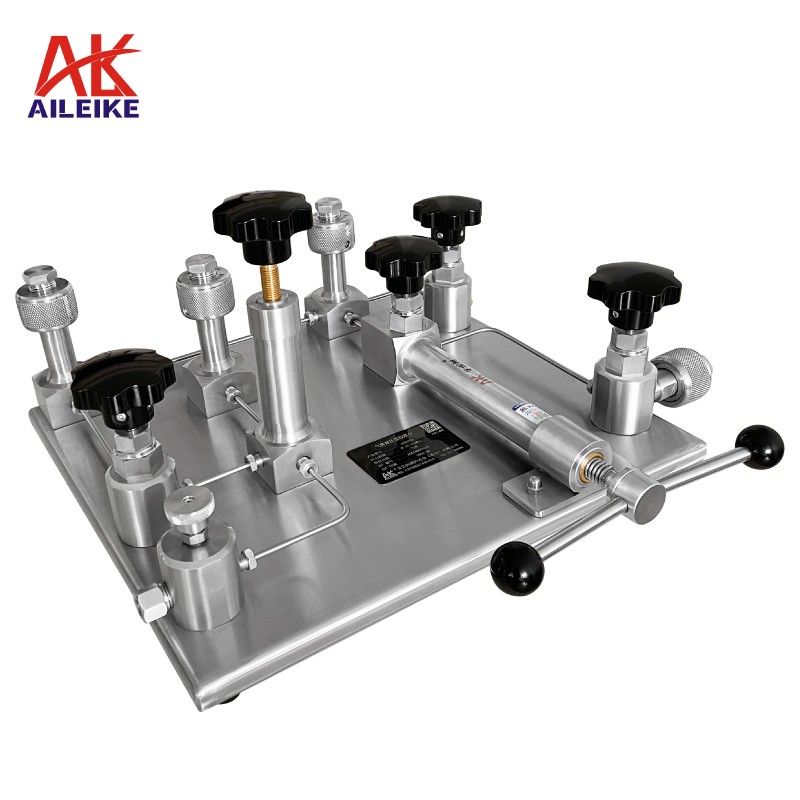

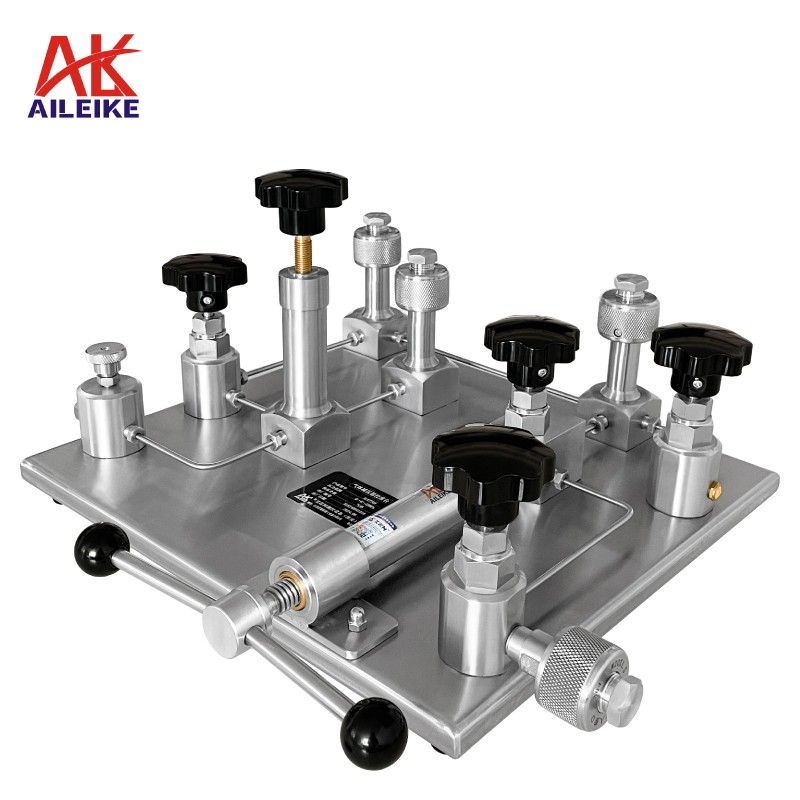

Product name |
Gas pressure reducing valve calibration bench |
|
Model |
ALKT709 |
|
Measuring range |
0~60 bar low voltage, 0~250bar high voltage |
|
Output port |
Four |
|
Pressure connection |
The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation. |
|
Ambient temperature |
5~50℃ |
|
Measurement medium |
Gas, Nitrogen, Oxygen |
|
Way of Pressure |
Hand movement |
|
Net Weight |
Approximately 14kg |
|
Product size |
500×410×220mm |
|
Packaged weight |
Approximately 21kg |
|
Product packaging size |
560×450×250mm( The packaging material is a wooden box ) |
|

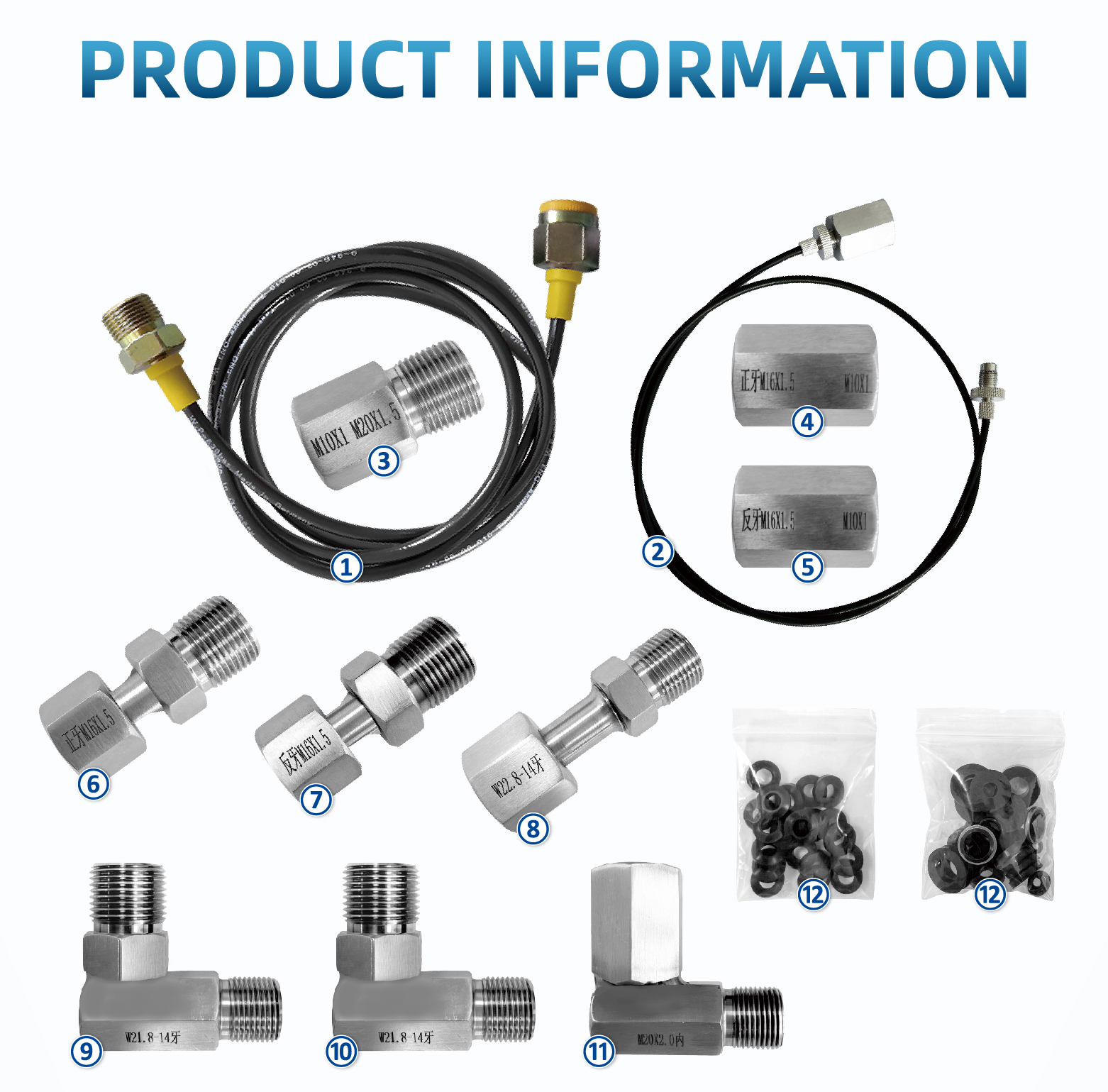

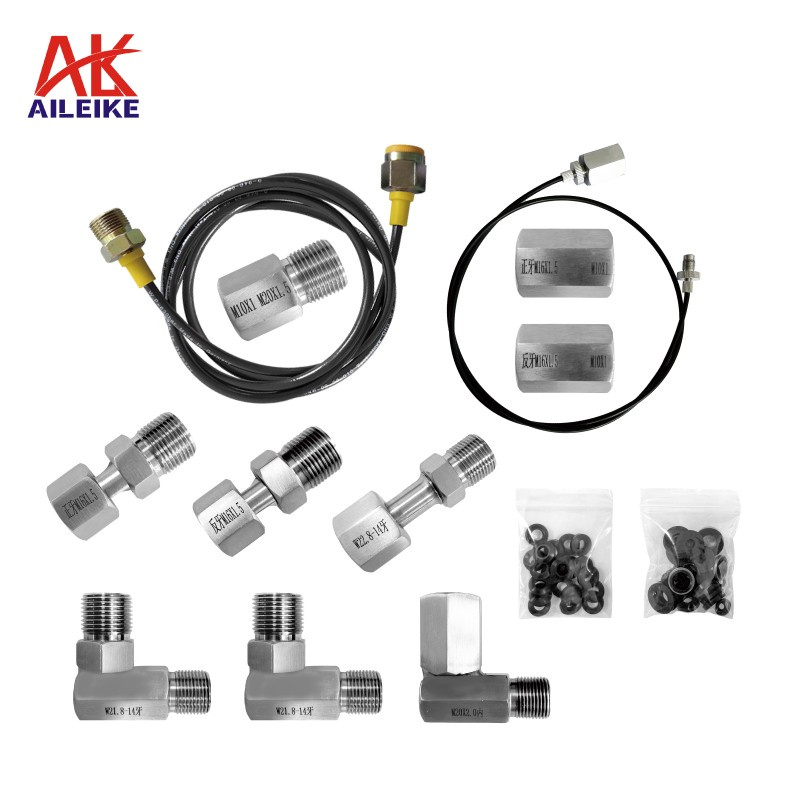

Product standard configuration |
Nitrogen bottle connector x1 Connecting hose x2 Backup connector for calibrated meter x1 Sealing ring 1 pack Pressure reducing valve joint x2 Instruction manual x1 Quality assurance card x1 Certificate of conformity x1 |
