Description
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|

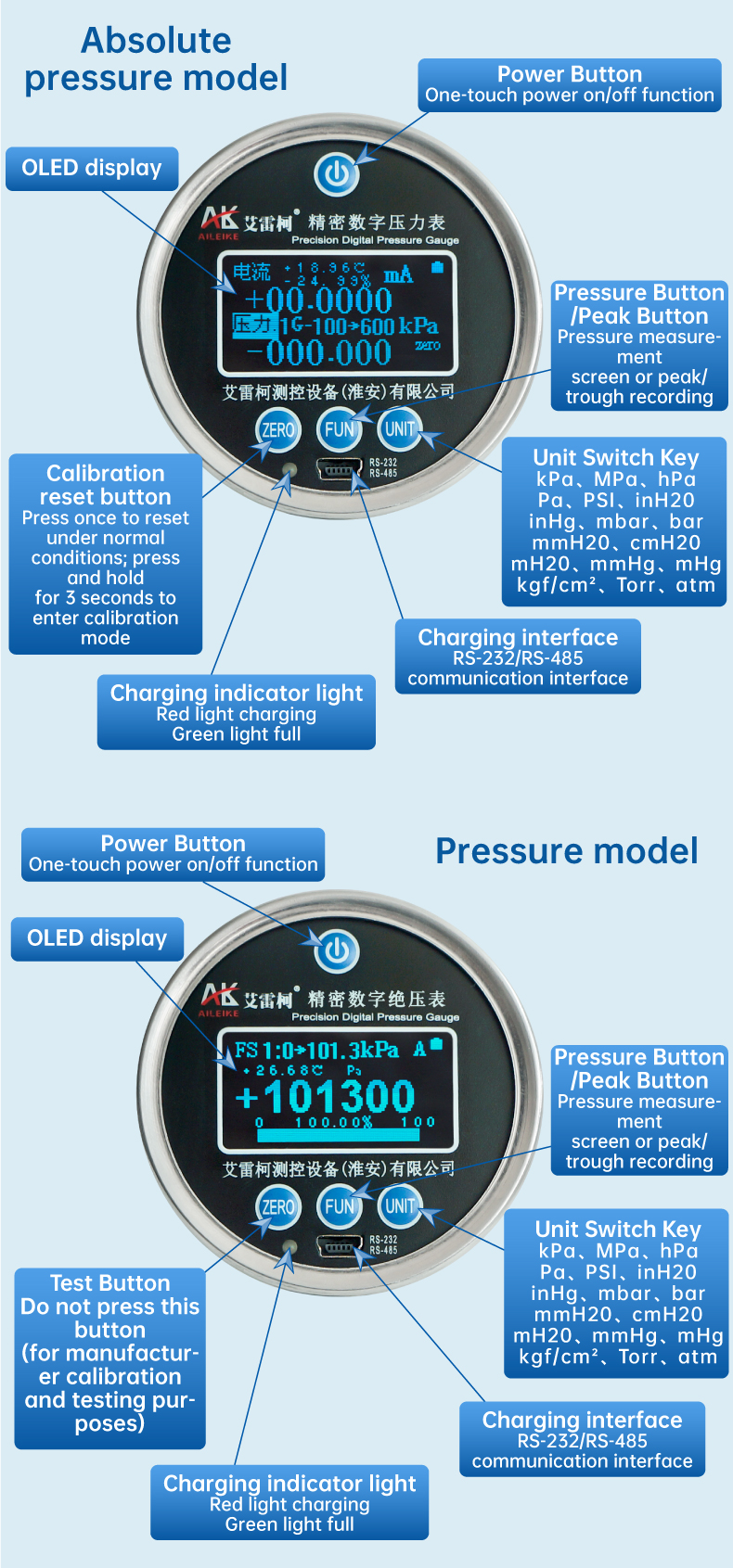

Electrical signal measurement interface |
Power switch |
OLED display |
Function keys |
Charging interface RS-232 RS-485 communication interface |
Charging indicator light Red light charging Green light full |
Pressure sensor |
|
1 |
Yellow: Voltage measurement/pressure switch test terminal |
|
2 |
Green: Voltage output terminal |
|
3 |
Red: Current measurement terminal |
|
4 |
Black: Common terminal |
|
Product name |
Precision digital pressure gauge |
|
Model |
ALKC400S |
|
Accuracy |
0.05%F·S |
|
Enclosure material |
±25.0000mA |
|
Pressure range |
±50.0000V |
|
Protection rating |
- 1~0~600~1000bar/ 1.013-0bar abs(Pressure selectable) |
|
Power supply voltage |
RS-485 |
|
LCD display |
5-digit or 6-digit display selectable via key |
|
Pressure connection |
The thread size is M20 × 1.5(M). If you need other thread sizes, please contact us for consultation. |
|
Overload capacity |
1.2 times the full scale |
|
Ambient temperature |
0～50℃ |
|
Power supply |
External charger 220VAC 50HZ 3VA |
|
Measurement medium |
Air, water, oil and other non corrosive media for stainless steel |
|
Product weight |
Approximately 0.25kg (only for the pressure gauge body) |
|

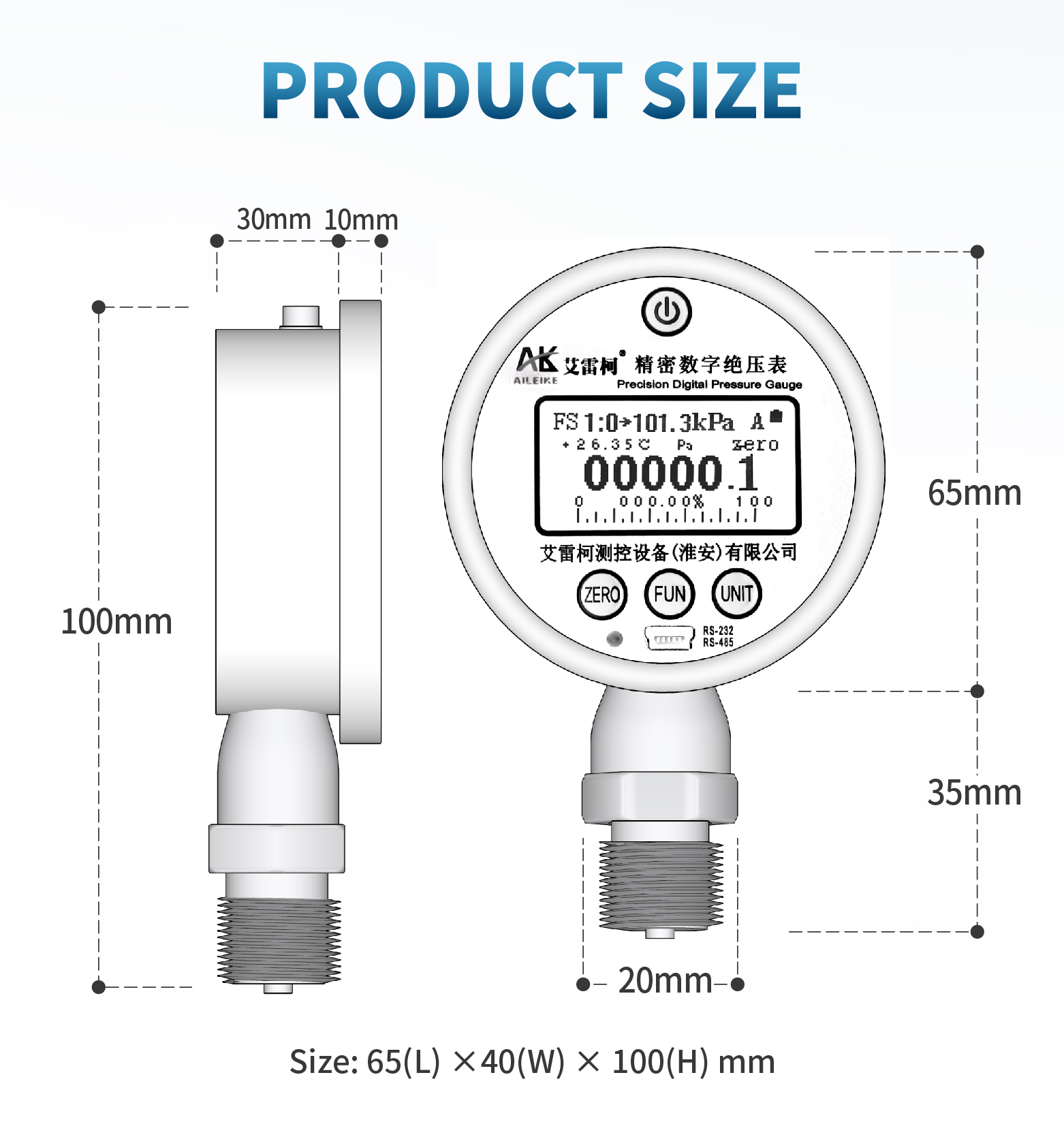

Product size |
65×40×100mm |
|
Package weight |
Approximately 2.5kg |
|

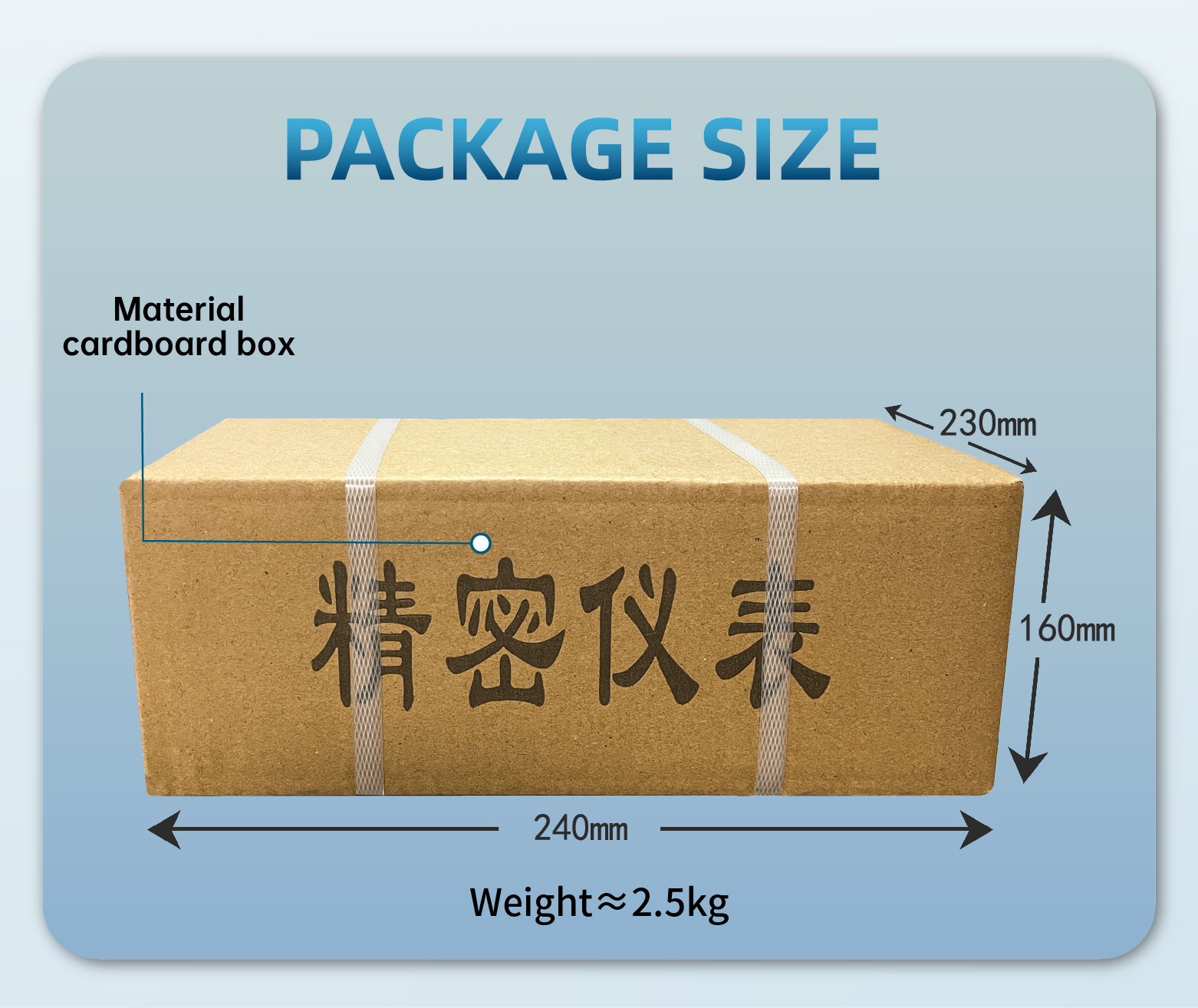

Package size |
240×230×160mm |
