Description
|

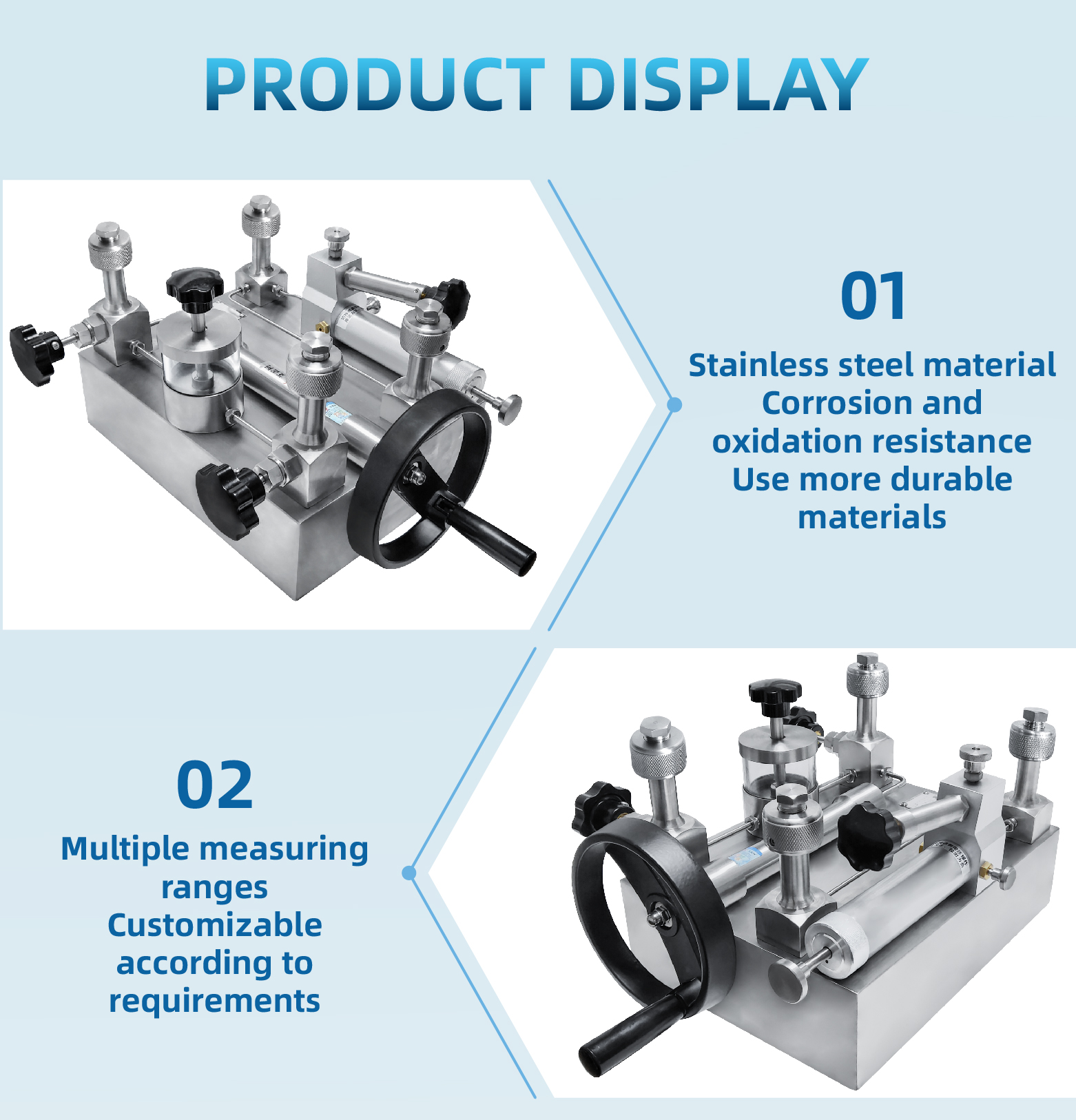

01 |
02 |
|
Stainless steel material Corrosion and oxidation resistance Use more durable materials
|
Suppressing easily Multiple measuring ranges Customizable according to requirements |
|
1 |
Output port 1 |
2 |
Output port 2 |
|
3 |
Output port 3 |
4 |
Output port 4 |
|
5 |
Pressure stabilizing valve |
6 |
stop valve |
|
7 |
Liquid cup |
8 |
Pressure stabilizing valve |
|
9 |
Pressure relief plug |
10 |
Positive and negative pressure switching valve |
|
11 |
Fine tuning |
12 |
Pressure rod |
|
13 |
Pressure handle |
|
|
|
Product name |
Gas-liquid calibration station |
|
Model |
ALKT781 |
|
Pressure range |
-0.95~600bar/-13~8700psi/-0.095~60MPa(Pressure selectable) |
|
Adjust sensitivity |
Min 10pa/1kPa |
|
Output port |
Four |
|
Pressure connection |
The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation. |
|
Ambient temperature |
0~50℃ |
|
Measurement medium |
Clean air/purified water (Transformer oil 25#) |
|
Way of Pressure |
Hand movement |
|
Net Weight |
Approximately 16.8kg |
|
Product size |
460×320×230mm |
|
Packaged weight |
Approximately 19kg |
|
Product packaging size |
560×420×330mm |
|
Product standard configuration |
Certificate of conformity x 1 Instruction manual x 1 Warranty card x 1 4 plugs Sealing ring x 4 |
