Electric cage type regulating valve ALKBTS
- Product ItemALKBTS
Description
Product Features
Composed of an electric actuator and a cage type regulating valve body, it is a high-performance single seat regulating valve suitable for situations where high pressure differentials are prone to flash evaporation and cavitation.
The sleeve protects the valve body from damage caused by flash evaporation and cavitation, with a compact cage structure and S-shaped channels, resulting in low pressure drop loss, high flow rate, and wide adjustable range.
Product Display
01
02
03
Stainless steel flange
Electric actuator
Precision cast thickened valve body
Stainless steel flange, earthquake resistant stable, with high mechanical strength and with high ductility and strength,
High temperature resistance, not easy to rust
Accurate valve position control can be achieved suitable for automation level higher systems can achieve
remote control, precise adjustment
and automated operations
The valve body is made of stainless steel material, corrosion-resistant and rust resistant,
Durable and bright, sturdy and long-lasting

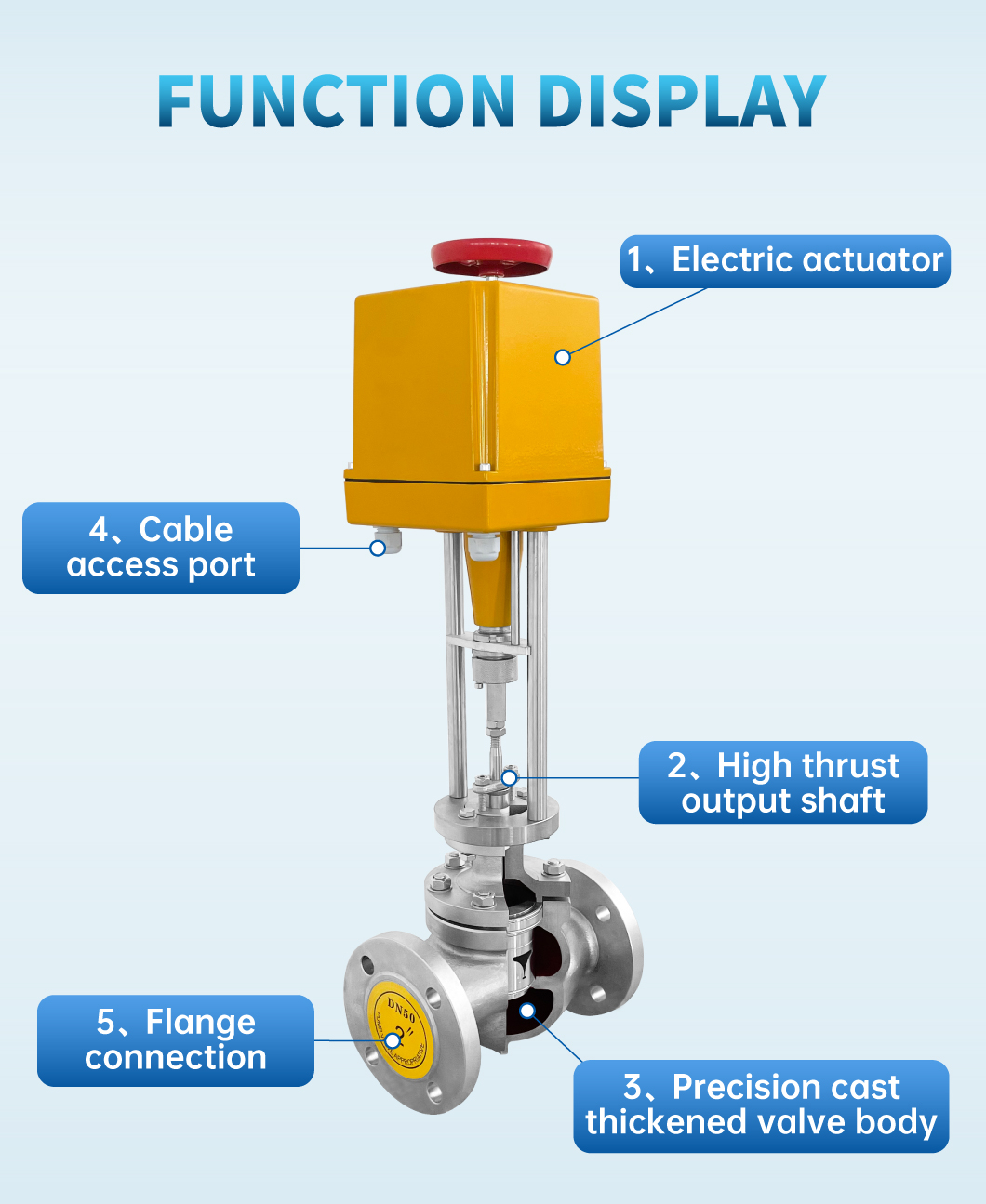

Function Display
01
02
03
04
05
Electric actuator
High thrust output shaft
Precision cast thickened valve body
Cable access port
Flange connection
Product Information
Customized processing
Yes
Product name
Electric cage type regulating valve
Nominal pressure
1.6MPa~6.4MPa
Nominal diameter
DN40~DN300
Drive mode
Electric
Body material
Cast steel/stainless steel
Connection method
Flange connection
Temperature
-30℃~+70℃
Traffic characteristics
Linear
Cover form
Spiral wound gasket
Power supply pressure
Standard, heat sink, extended
Operation form
Electric on/off
Adjustable range
50：1
Packing material
V-shaped polytetrafluoroethylene, graphite
