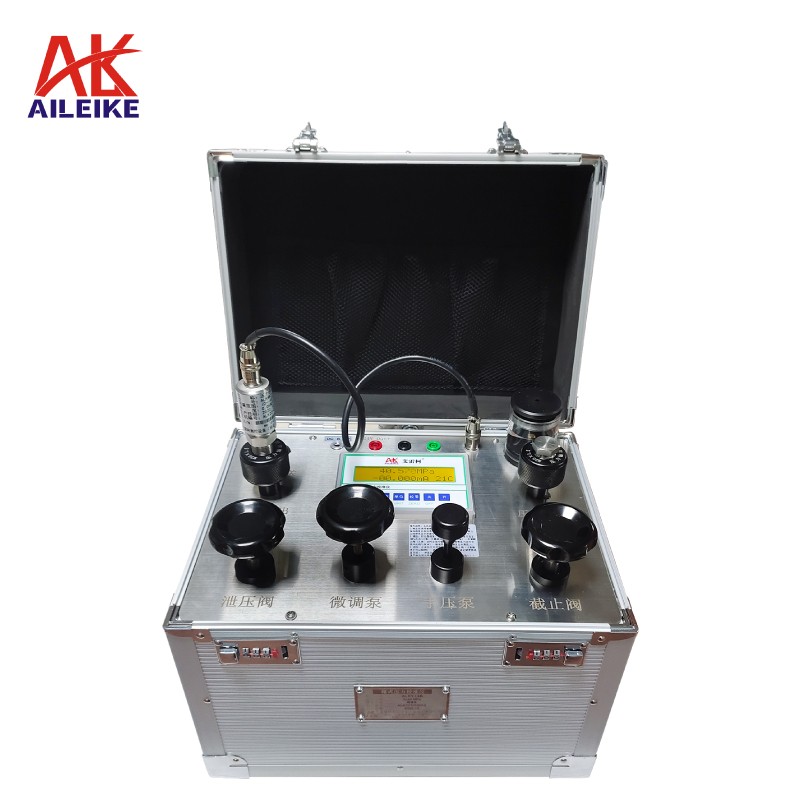

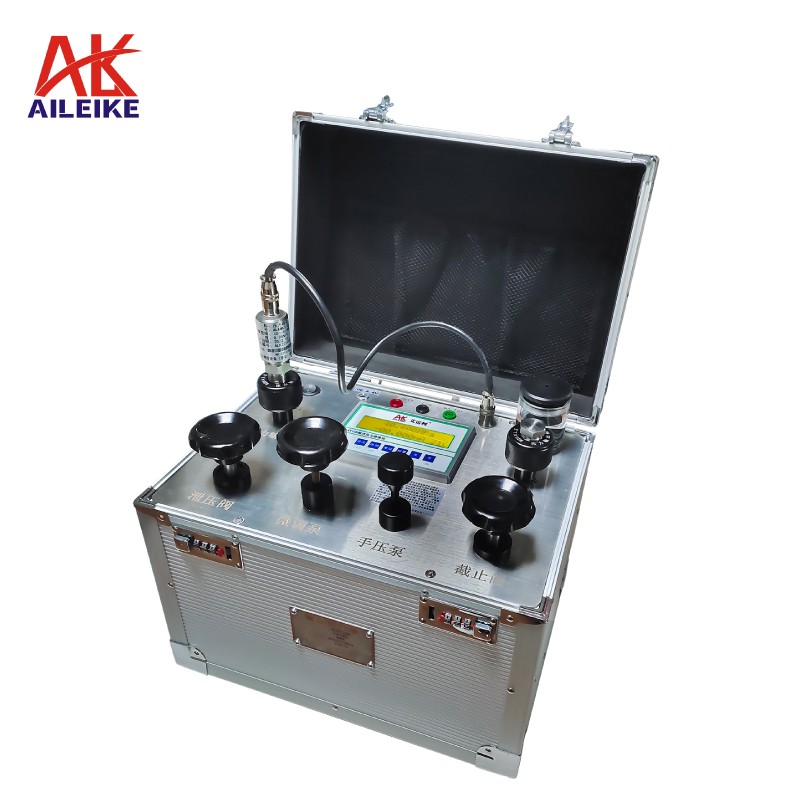

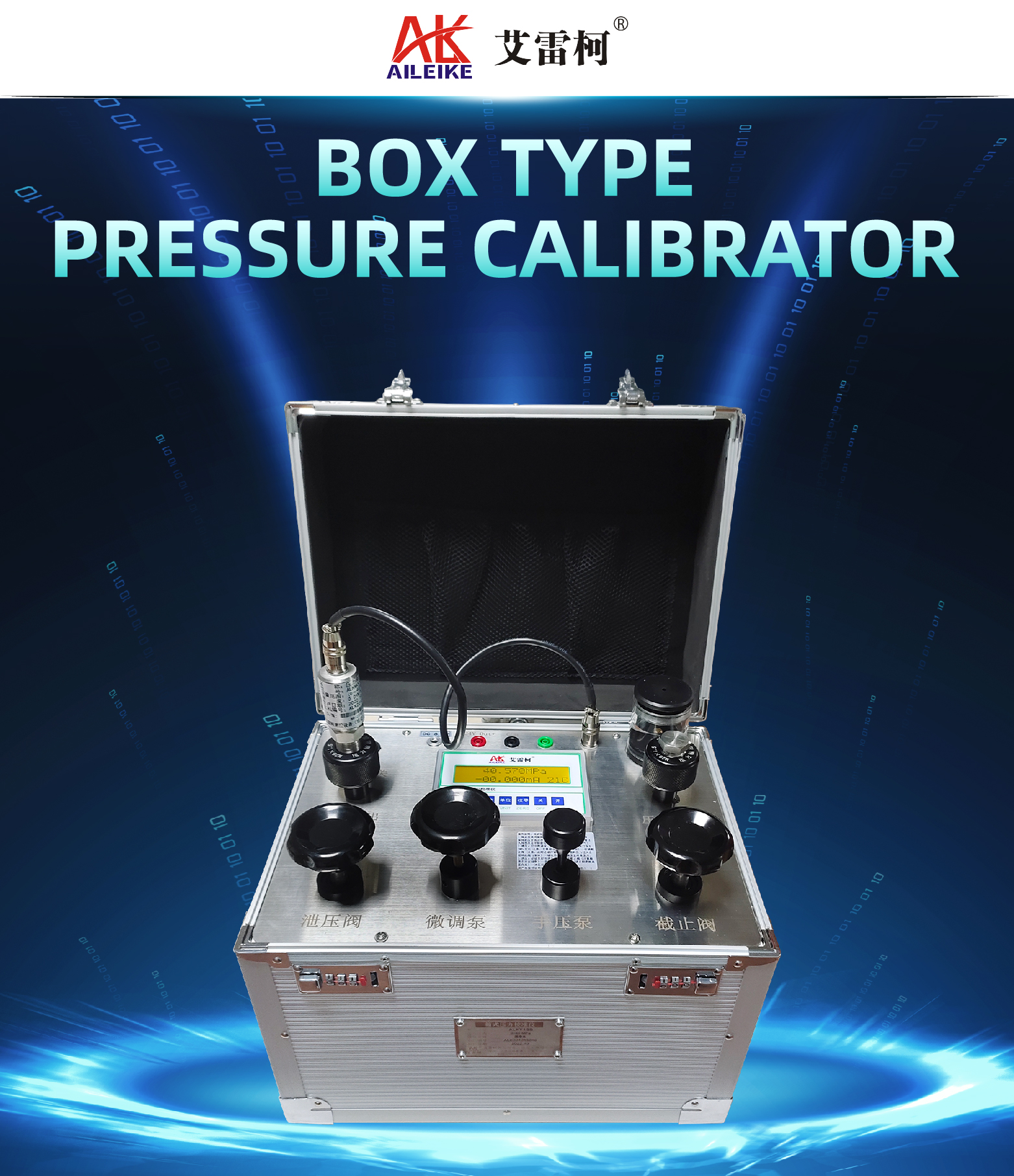

Box type pressure calibrator ALKY15B 0~600bar

1

2

3

4

5

6

7

8

9

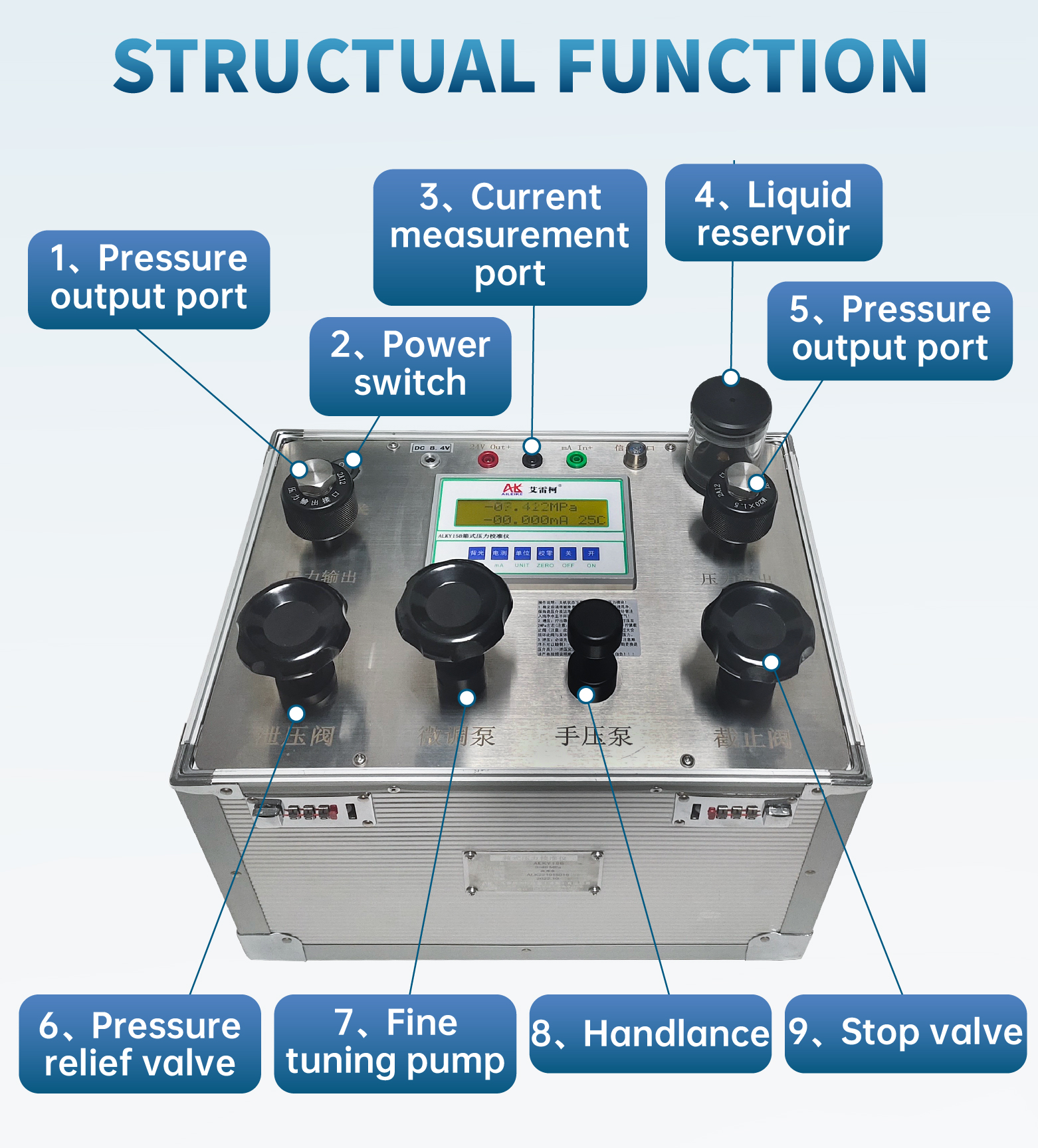

Pressure

output port

Power

switch

Current

measurement

port

Liquid

reservoir

Pressure

output port

Pressure

relief valve

Fine

tuning pump

Handlance

Stop valve

Product name

Box type pressure calibrator

Model

ALKY15B (with temperature compensation)

Measuring range

0~600bar/0~8700psi/0~60MPa (Pressure selectable)

Relative humidity

≤80%RH

DC operating time

≥16h

Pressure connection

The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation.

Temperature compensation

There is (0~50) ℃

Unit switching

6 units can be switched

Current measurement

0~22mA

DC Output

24VDC

Electric current

0.05% ± 1d

Accuracy

0.05%FS

Display

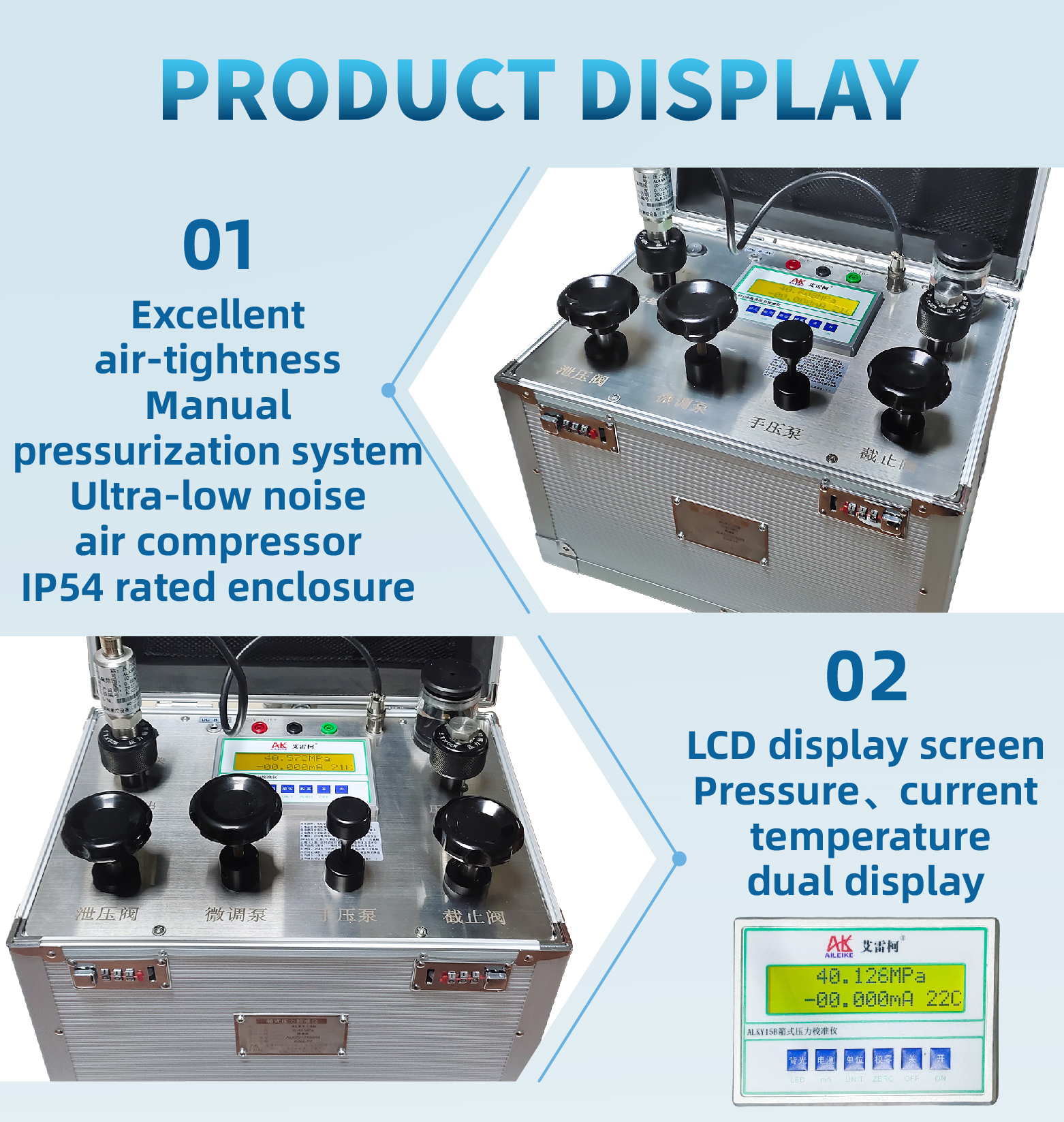

41/2LCD, 51/2LCD dual display for pressure, current, and temperature

Overload capacity

1.2 times the full range

Way of Pressure

Hand movement

Measurement medium

Purified water or Transformer oil 25#

Power supply

220VAC 50Hz 3VA

Net Weight

Approximately 6.8kg

Product size

380×230×330mm

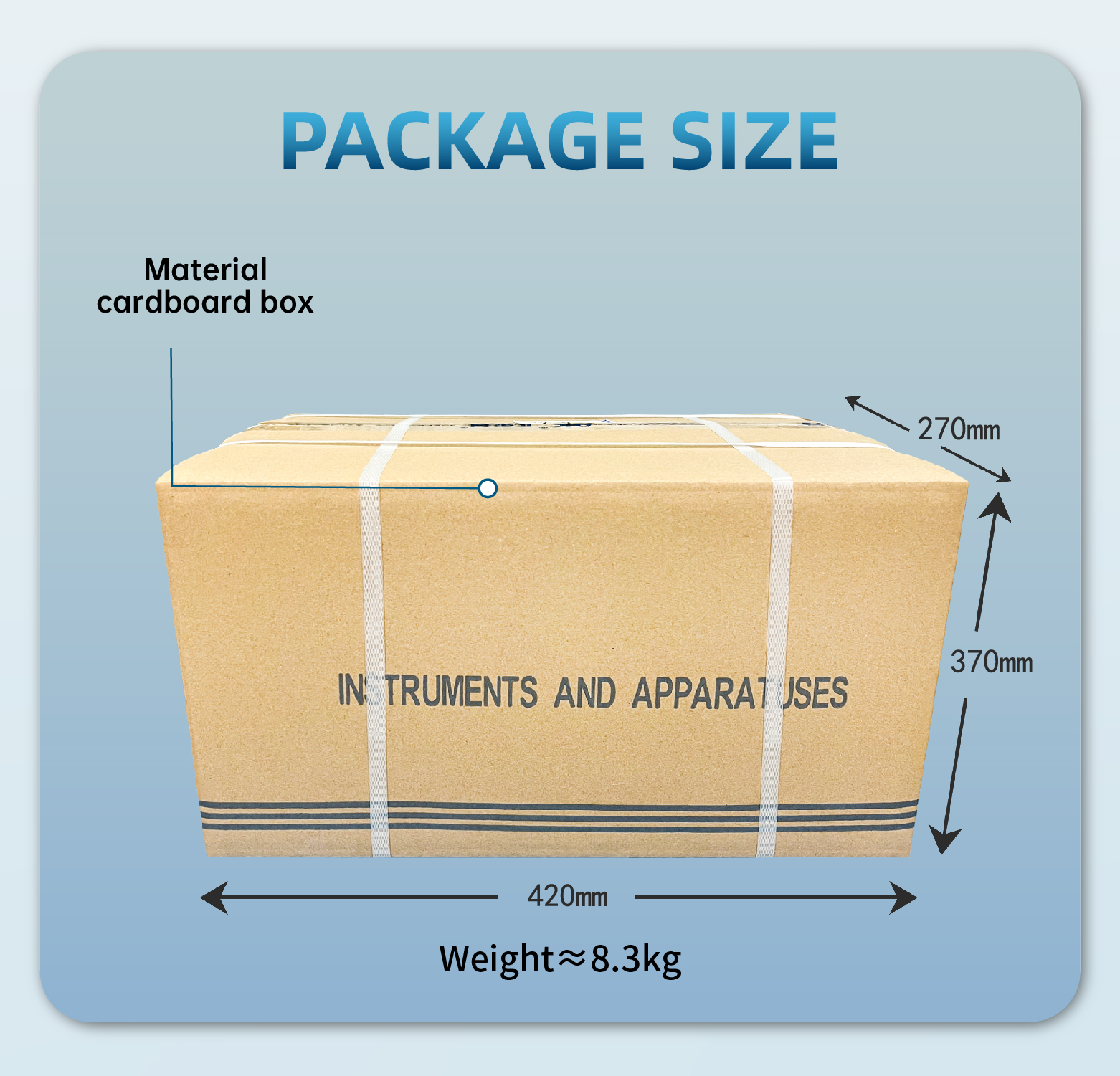

Packaged weight

Approximately 8.3kg (packaging material is Carton box)

Product packaging size

420×270×370mm

Product standard configuration

Certificate of conformity x 1 instruction manual x 1 instrument box x 1 probe x 1 charger x 1

Hose x 1 sealing ring x 4 factory inspection report x 1
