Description
|
01 |
02 |
|
Hydraulic calibration Easy to create pressure Rapid increase in voltage Stable voltage reduction |
Multiple measuring ranges Customizable according to requirements |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
|
Standard output port Connecting threads： M20X1.5 |
Nameplate |
Liquid storage cup |
Exhaust button |
Exported by the school Connecting threads： M20X1.5 |
Stop valve |
Filter |
Pressure relief valve |
Fine tuning |
Exported by the school Connecting threads： M20X1.5 |
Hand pressure rod |
|
Product name |

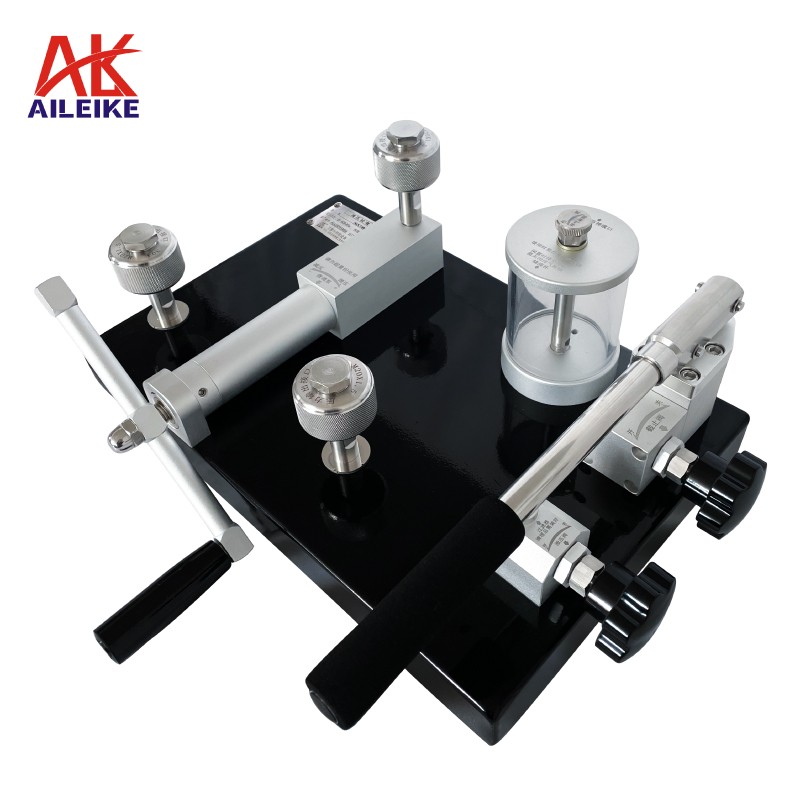

Hydraulic calibration table |
|
Model |
ALKT9803 |
|
Measuring range |
0~600bar/0~8700psi/0~60MPa (Pressure selectable) |
|
Adjust the fineness |
100pa |
|
Output port |
Three |
|
Pressure connection |
The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation. |
|
Ambient temperature |
0~50℃ |
|
Measurement medium |
Store purified water or transformer oil 25# |
|
Pressurization method |
Hand movement |
|
Net Weight |
Approximately 7.3kg |
|
Product size |
380×350×170mm |
|
Packaged weight |
Approximately 9.5kg(packaging material is cardboard box) |
|
Product packaging size |
460×410×230mm |
|
Product standard configuration |
Certificate × 1 instruction × 1 quality assurance card × 1 seal ring × 3 plug × 3 |
