Description

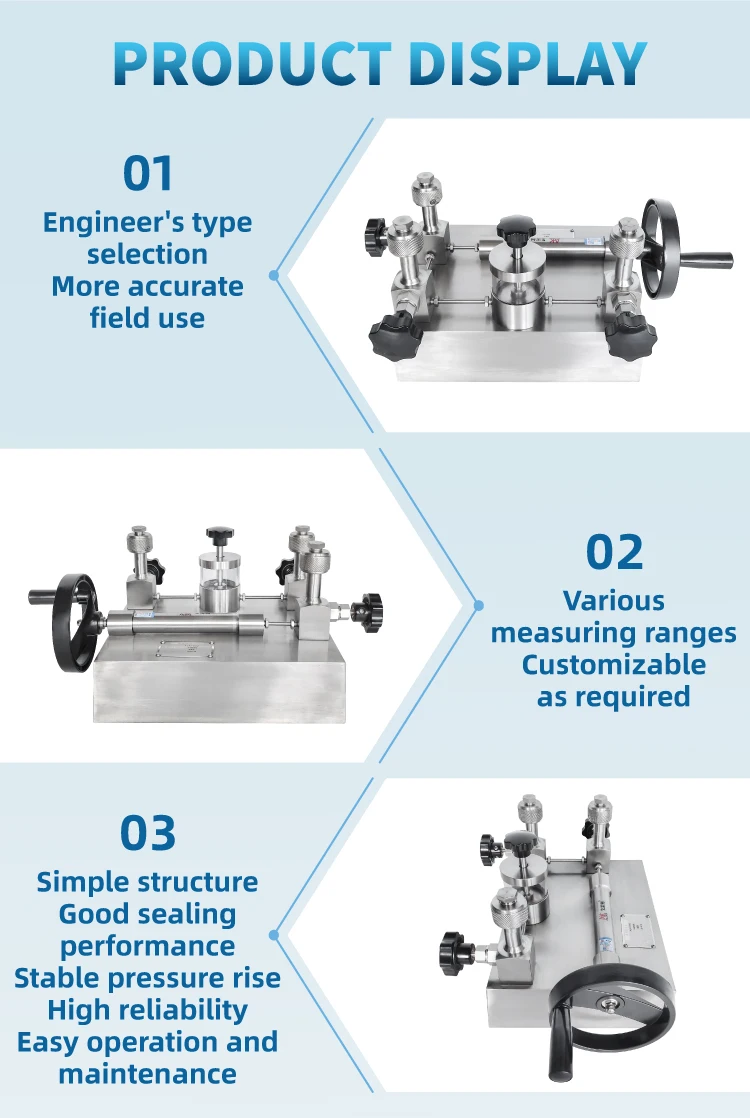

01
02
03
Engineer's typeselection
More accuratefield use
Variousmeasuring ranges
Customizableas required
Simple structure
Good sealingperformance
Stable pressure rise
High reliability
Easy operation andmaintenance
1
2
3
4
5
6
7
8
9
10

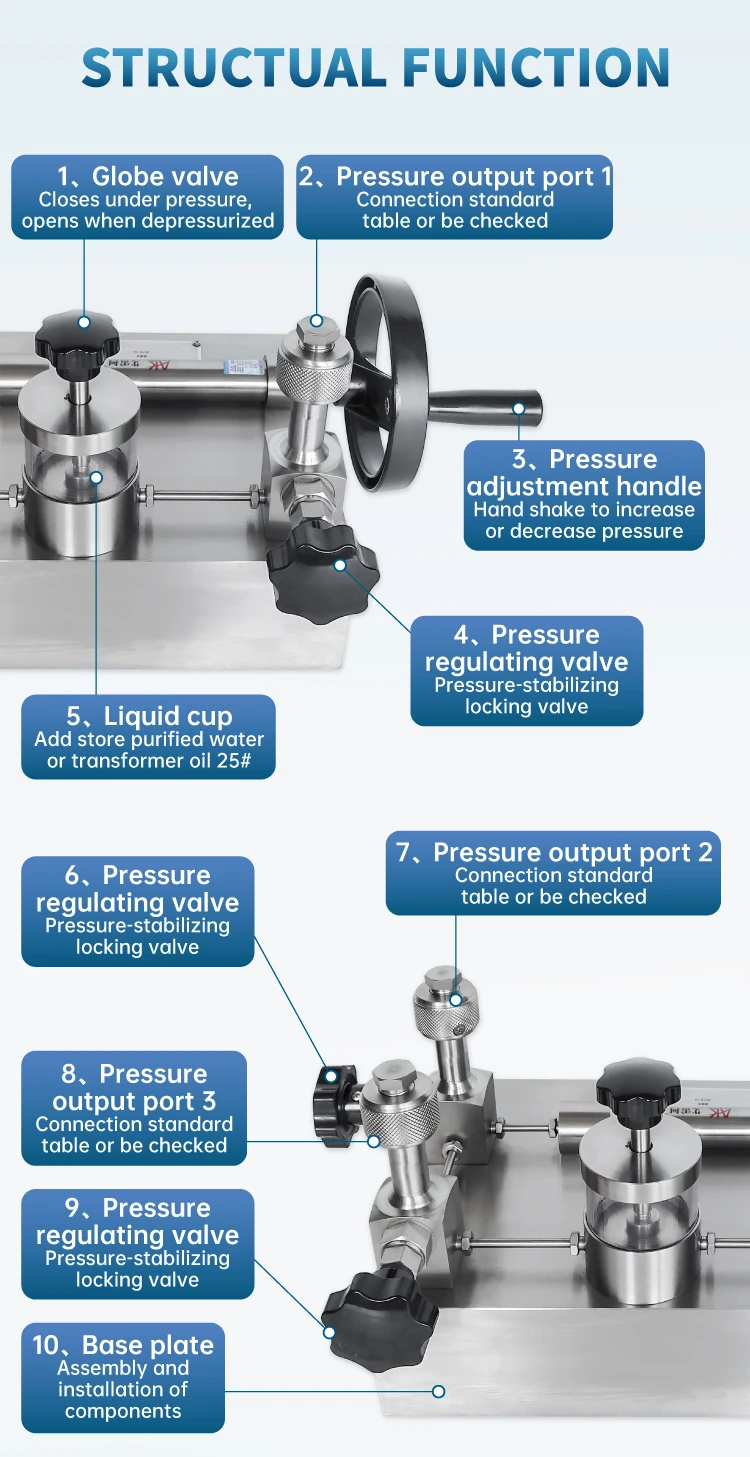

Globe valve
Closes under pressure,
opens when depressurized
Pressure output port 1
Connection standard
table or be checked
Pressure
adjustment handle
Hand shake to increase
or decrease pressure
Pressure
regulating valve
Pressure-stabilizing
locking valve
Liquid cup
Add store purified water
or transformer oil 25#
Pressure
regulating valve
Pressure-stabilizing
locking valve
Pressure output port 2
Connection standard
table or be checked
Pressure output port 3
Connection standard
table or be checked
Pressure
regulating valve
Pressure-stabilizing
locking valve
Base plate
Assembly and
installation of
components
