Description
|
01 |
02 |
03 |
04 |
|
Electric pneumatic calibration table be easy to carry about Available as field measurements Use of pressure building device |
Boost/Depressurize/Trim Three pressure repair methods Dynamic response stabilization Good sealing performance |
Clear and intuitive operation panel Allows operators to be self-paced Wide measuring range |
External booster pump Small size and light weight Efficient pressurization for improved calibration efficiency Ease of use and maintenance |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Pressure Output Port 1 Connecting threads： M20X1.5 |
Pressure Output Port 2 Connecting threads： M20X1.5 |
Pressure relief button |
Stop valve |
Boost button |
Pressure relief valve |
Fine-tuning Pump |
|
Product name |
Electrodynamic pressure calibration |
|
Model |
ALKD91A |
|
Measuring range |
-0.95~100bar/-13~1450psi/-0.095~10MPa (Pressure selectable)
|
|
Accuracy |
Pressure:0.05%F.S Pressure:0.02%F.S |
|
Output port |
Two |
|
Drift |
<0.01%F.S/year |
|
Power Consumption |
<500VA |
|
Pressure fluctuation range |
0.05%F.S/5S |
|
Temperature |
15~35℃ |
|
Measurement medium |
0~80%RH |
|
Pressurization method |
AC220±10% 50Hz |
|
Measurement medium |
Non-Corrosive gas |
|
Net Weight |
Approximately 22kg |
|
Product size |
400×440×345mm(Electrodynamic pressure calibration) 290×210×150mm(External Booster Pump) |
|

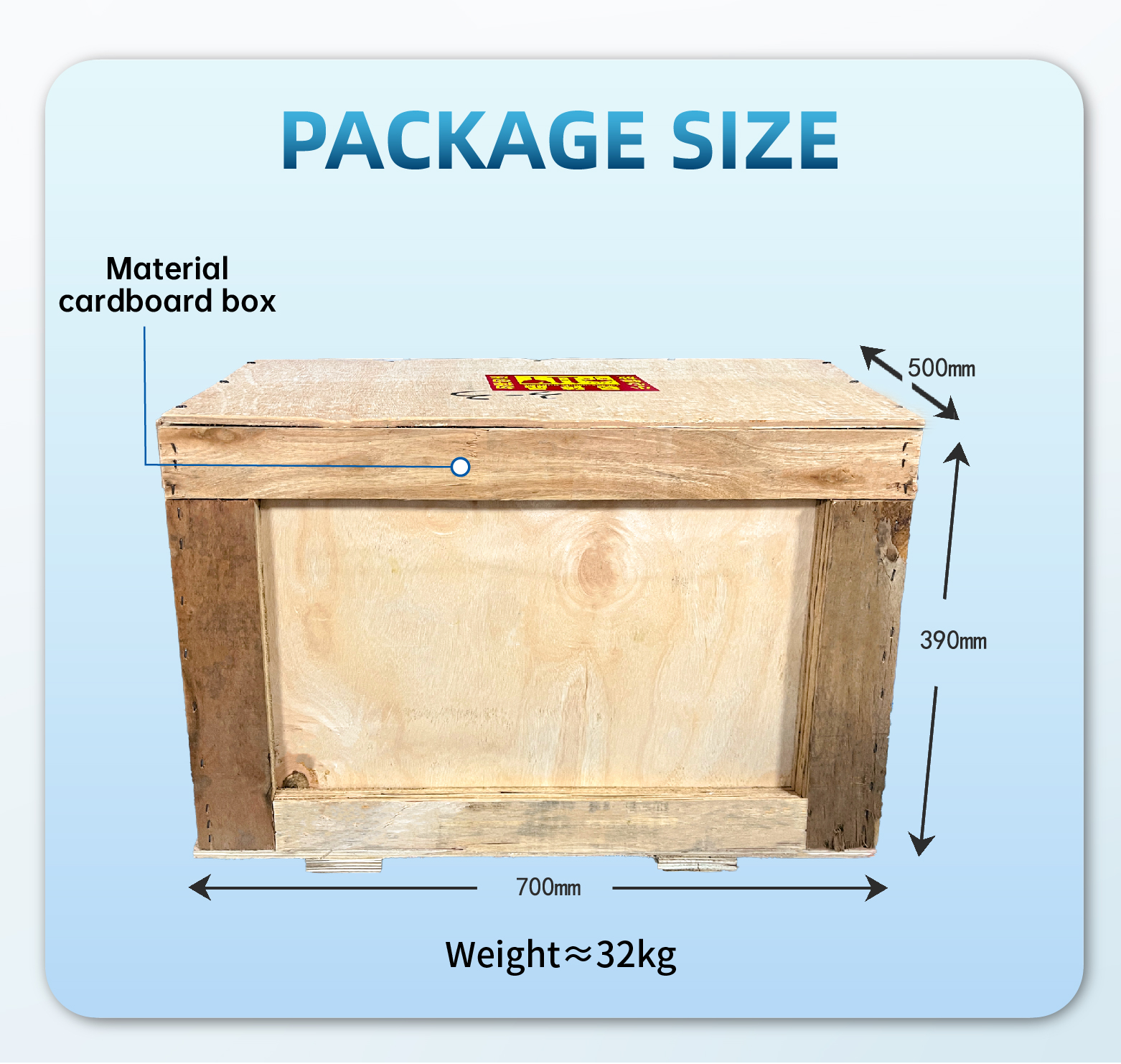

Packaged weight |
Approximately 32kg (packaging material is Wooden box) |
|
Product packaging size |
700×500×390mm |
