Description
|
Product Information |
|
|
Product name |
Low temperature blackbody radiation source |
|
Model |
ALKHW-W100 |
|
Processing customization |
Yes |
|
Temperature range |
-30~100℃/-20~100℃ |
|
Control mode |
LCD touch screen |
|
Display resolution |
0.01℃ |
|
Output port |
≥0.997 |
|
Chamber diameter |
φ50mm (customizable) |
|
Stability |
The greater of 0.1 ℃ and 0.15% t, where t is the radiation source temperature |
|
Uniformity |
The greater of 0.15 ℃ and 0.15% t, where tis the radiation source temperature |
|
Default Display |
Switching between Chinese and English |
|
Ambient temperature |
25±2℃ |
|
Usage environment |
There is no corrosive gas, flammable orexplosive gas in the surrounding area |
|
Size |
325x330x220mm |
|
Weight |
10.6kg |
|

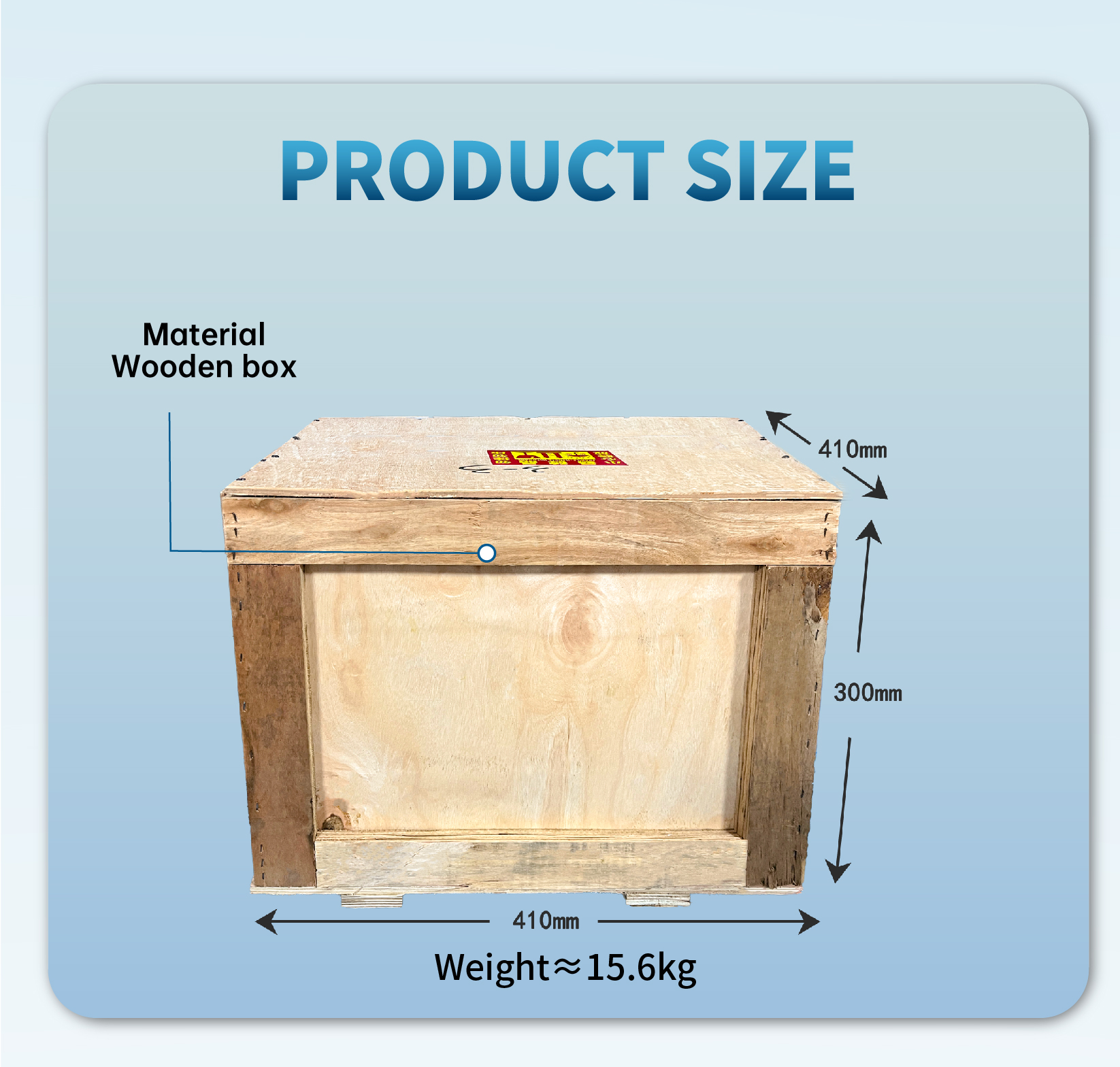

Produce packaging size |
410×410×300mm |
|
Produce weight |
Approximately15.6kg (packaging material isWooden box) |
|
Source |
AC220V士10%50HZ/60HZ |
|
Power |
400w |
|
Standard accessories |
Power cord x 1 instruction manual x 1 certificate of conformity x 1 |
|

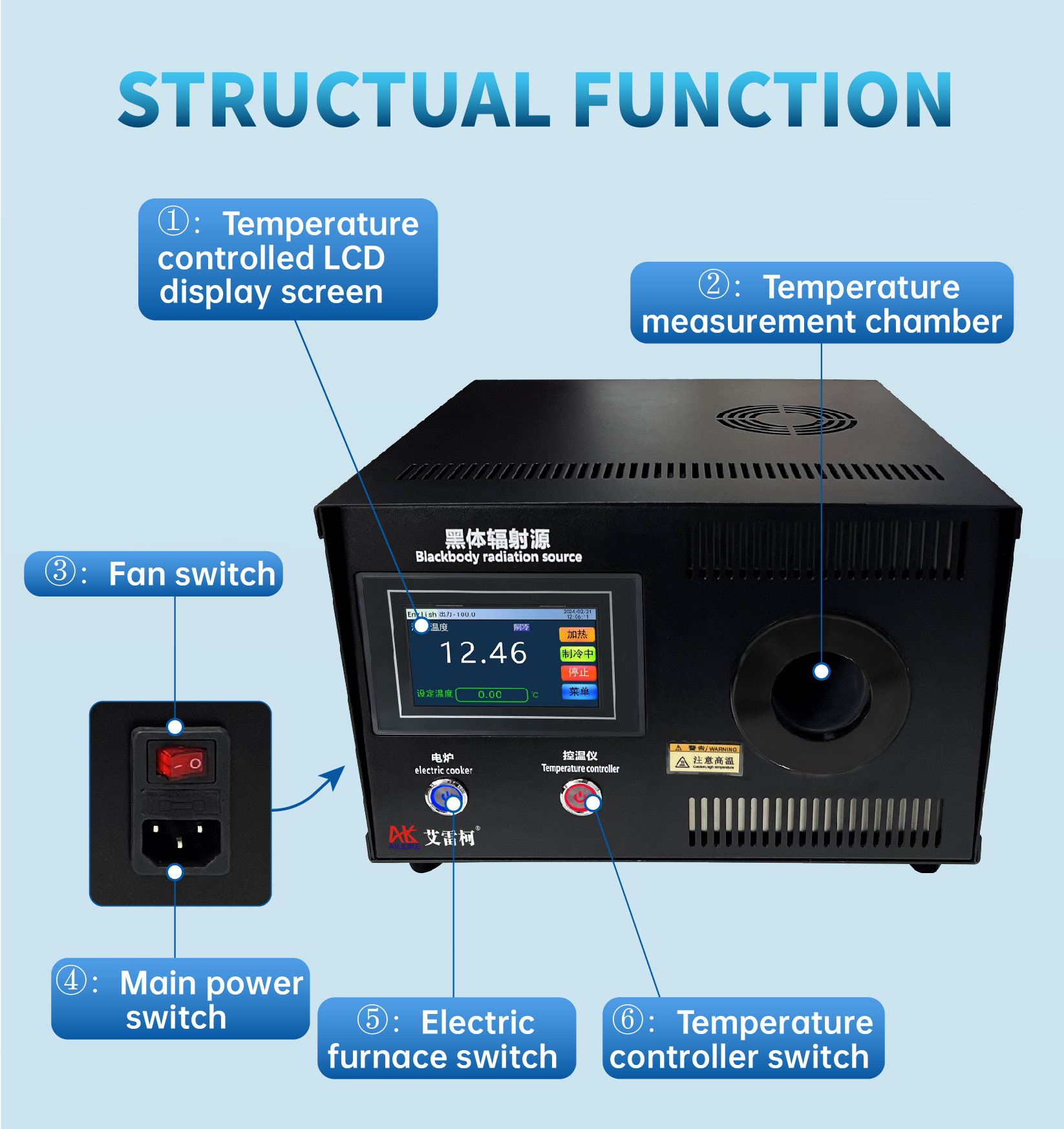

① |
② |
③ |
④ |
⑤ |
⑥ |
|
Temperaturecontrolled LCD display screen |
Temperature measurement chamber |
Fan switch |
Main powerswitch |
Electricfurnace switch |
Temperaturecontroller switch |
